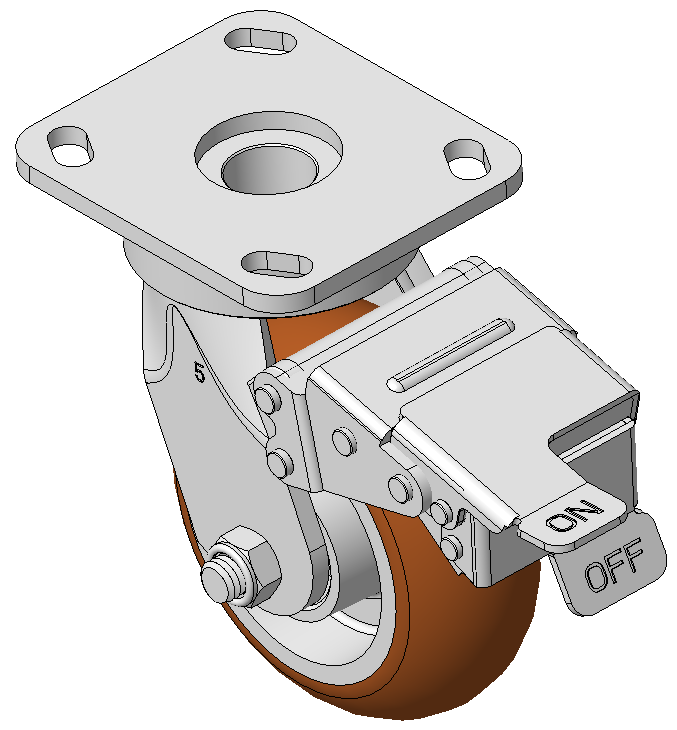

Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
Wheel Center: iron core/cast iron core

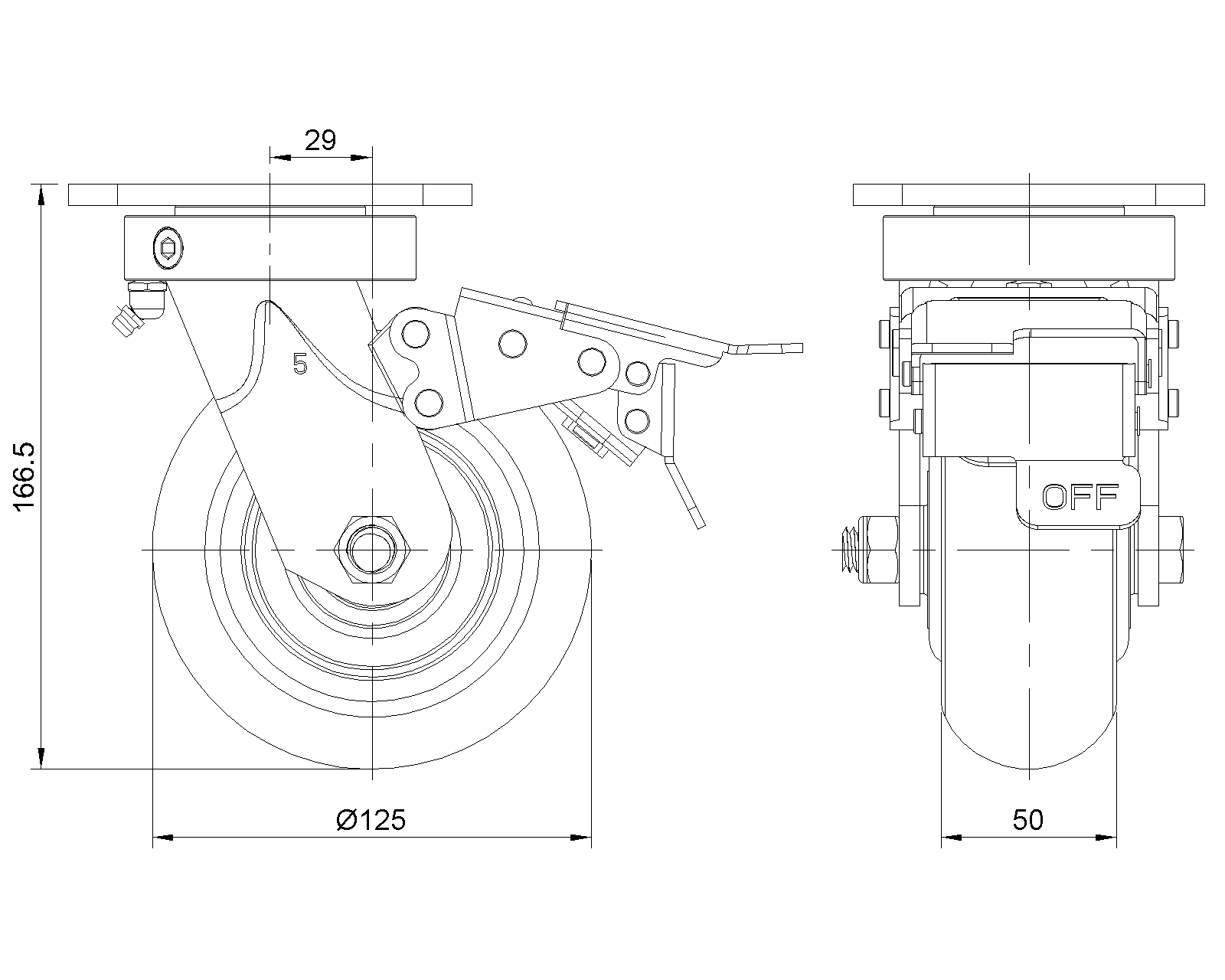

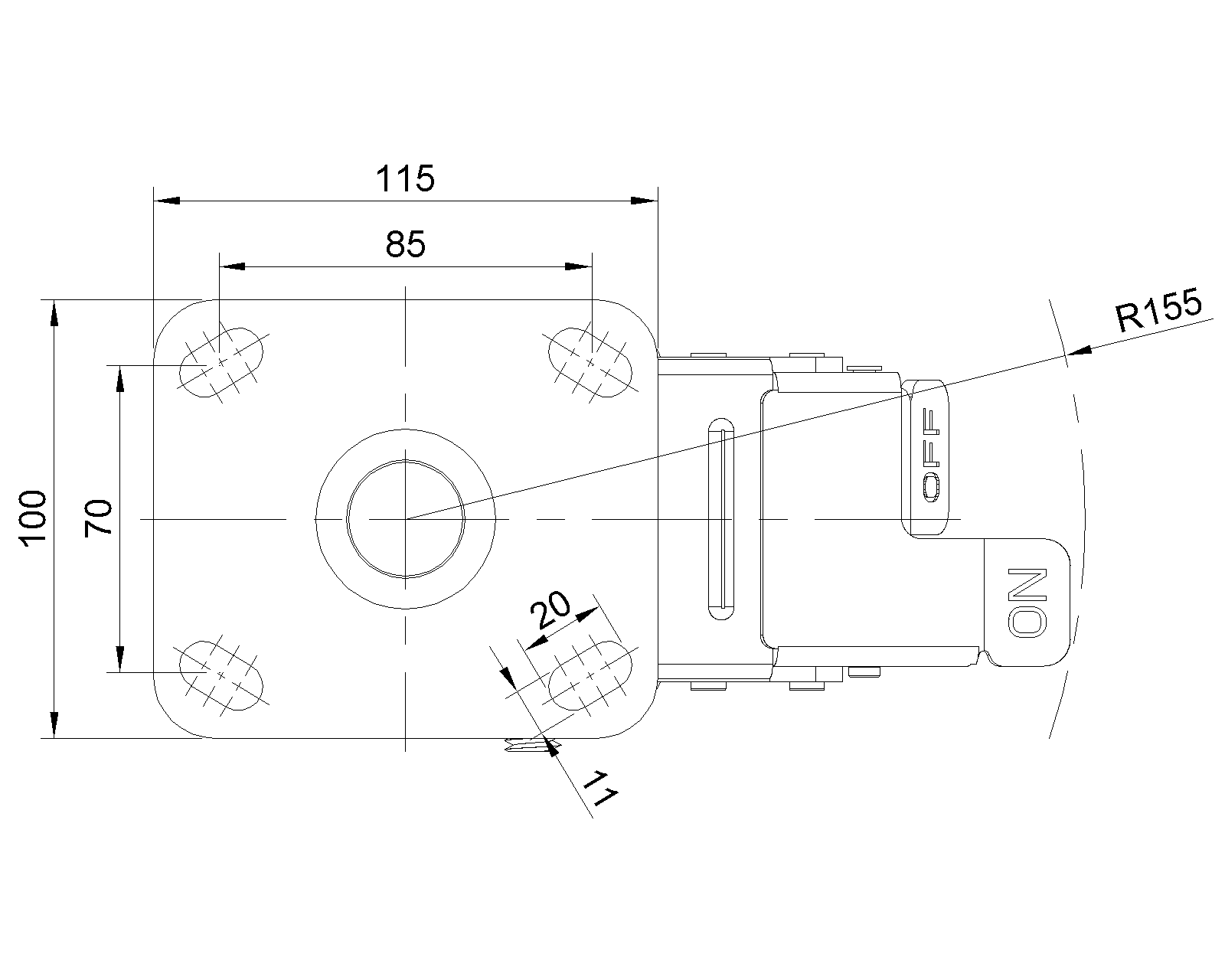

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
50mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
140 x 110mm
Bolt Hole Spacing
110x75mm
Plate Hole
20 x 11mm
Offset
29mm
Swivel Interference
310mm
Overall Height
166.5mm
Swivel Radius
155mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
550kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
825kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster With Front Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
4.04kgs
Standard
ISO22883
