    Product Data Sheet
1141 Kingpinless Caster Series
　　QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11410400532123
　　　　　 　　　
Swivel castor, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown Bearing - Ball Bearing
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

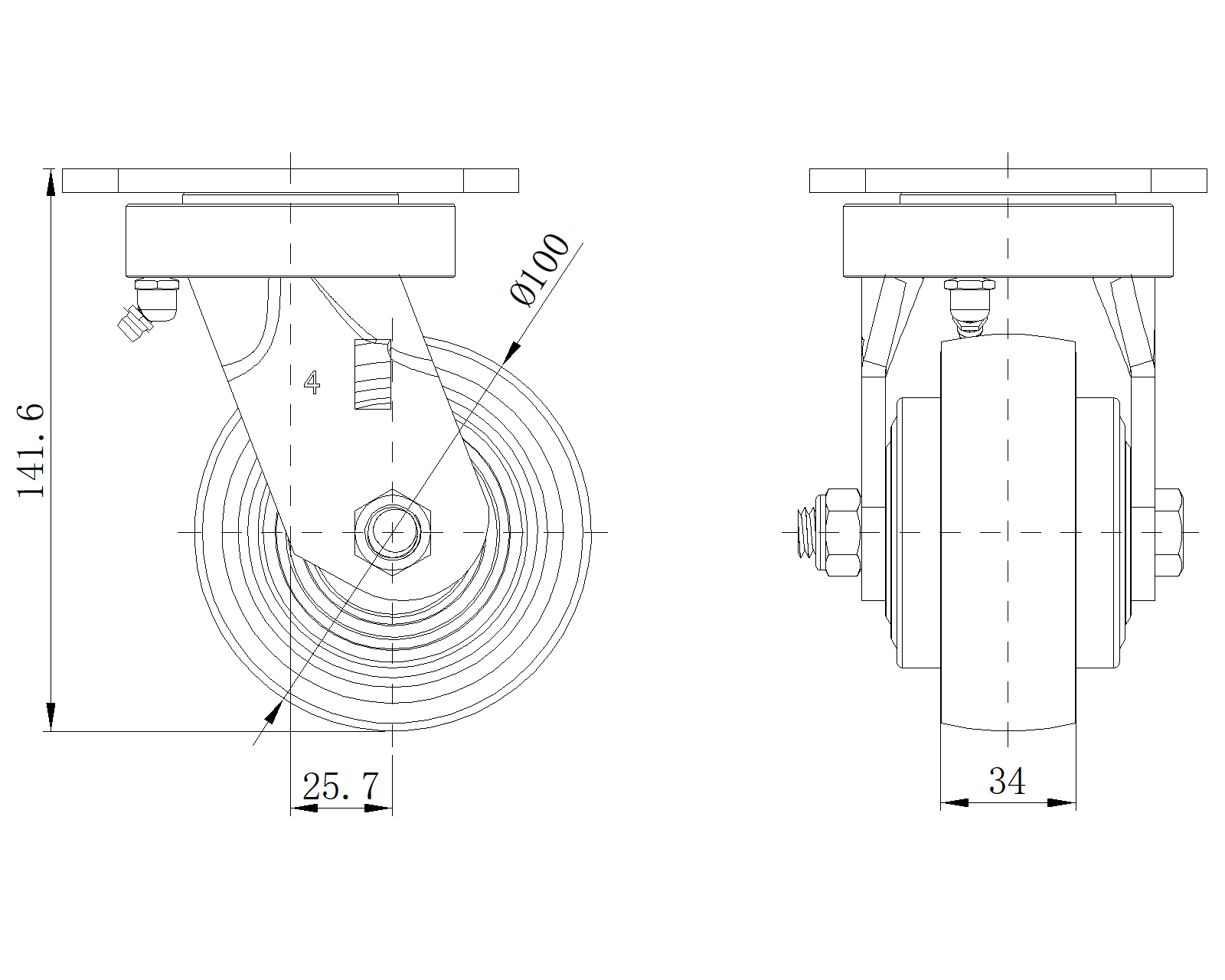

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

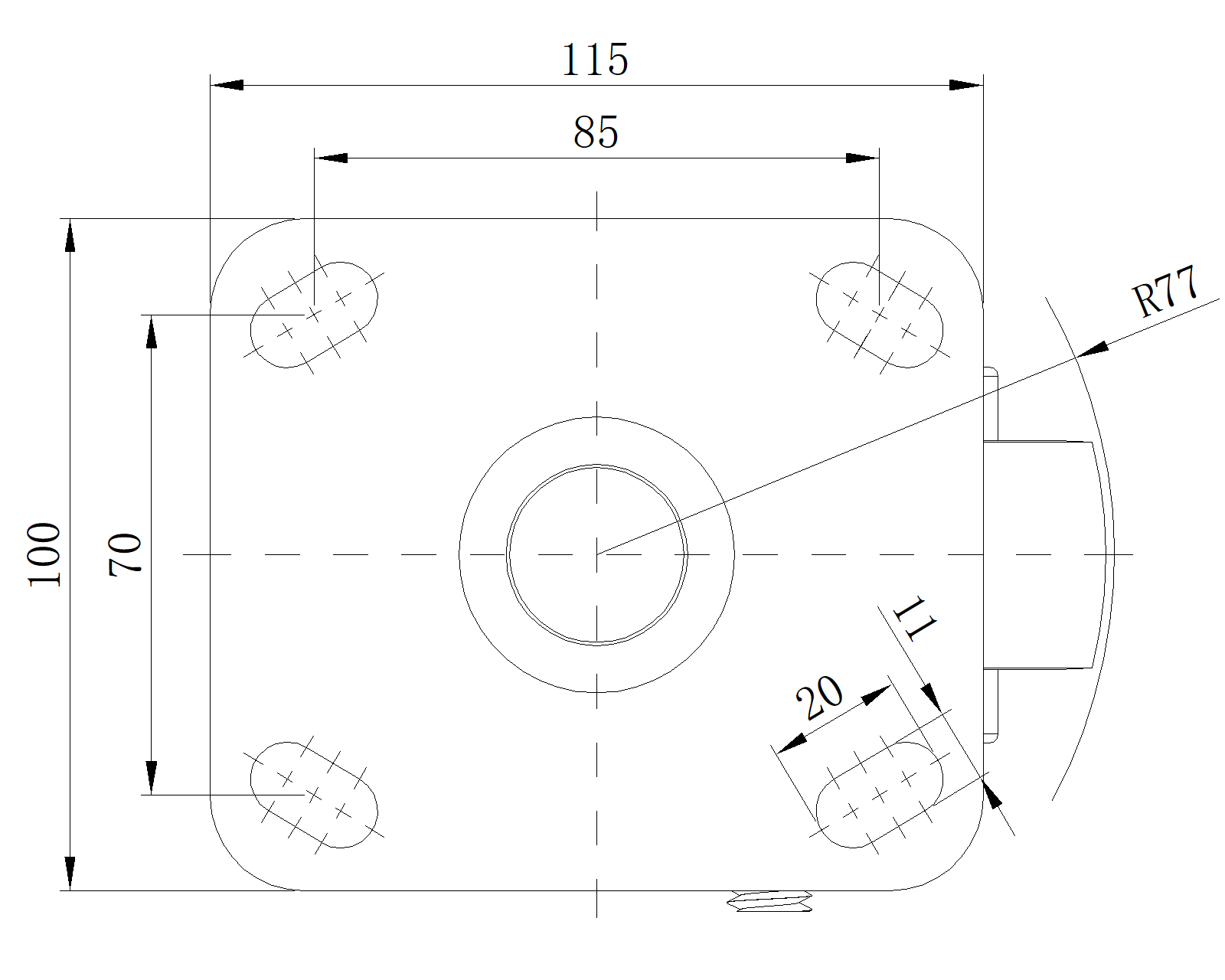

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 25.7mm　
　　Swivel Interference 154mm　
　　Overall Height 141.6mm　
　　Swivel Radius 77mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 335kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 502kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.34kgs　
　　Standard ISO22883
　　
　　
