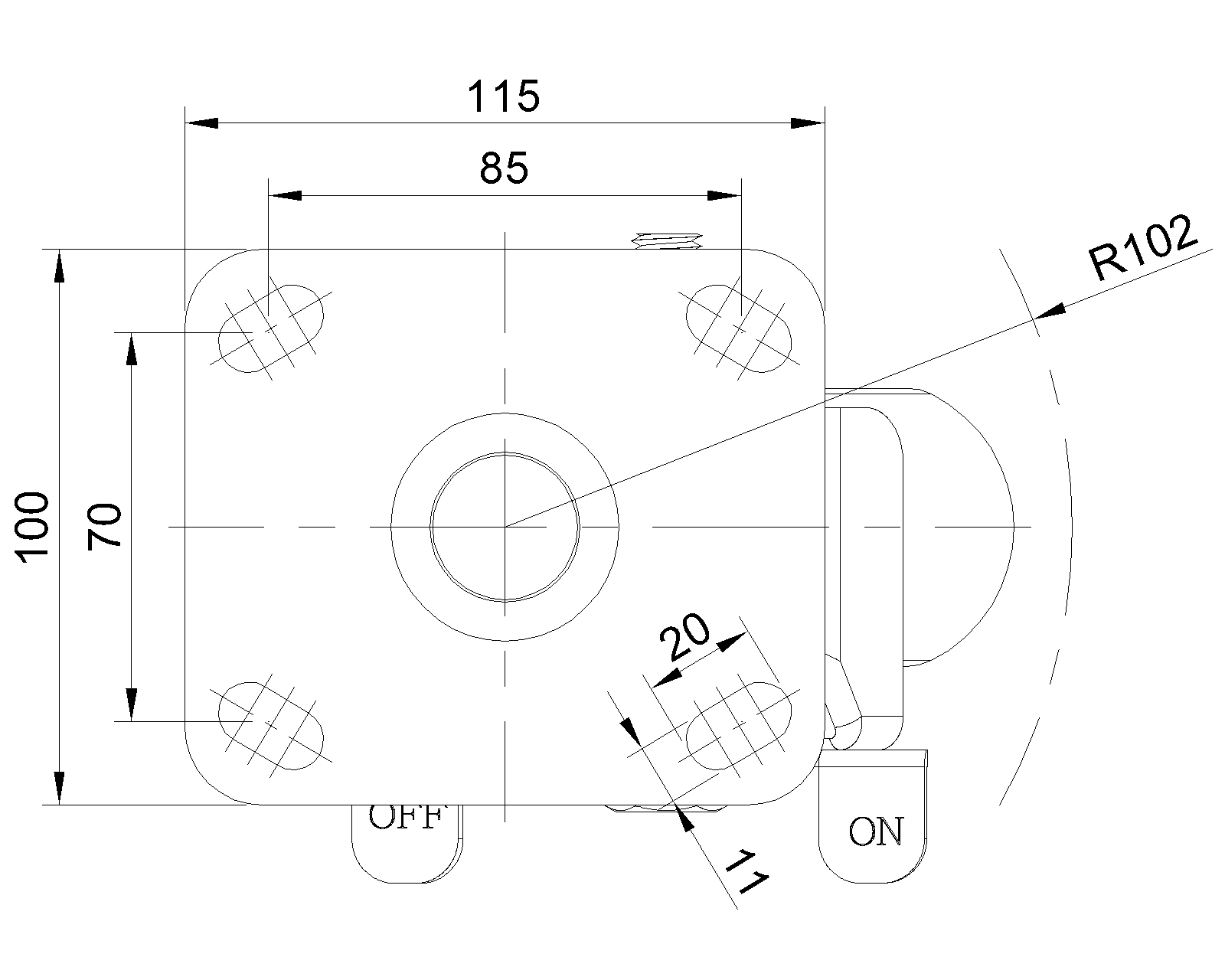

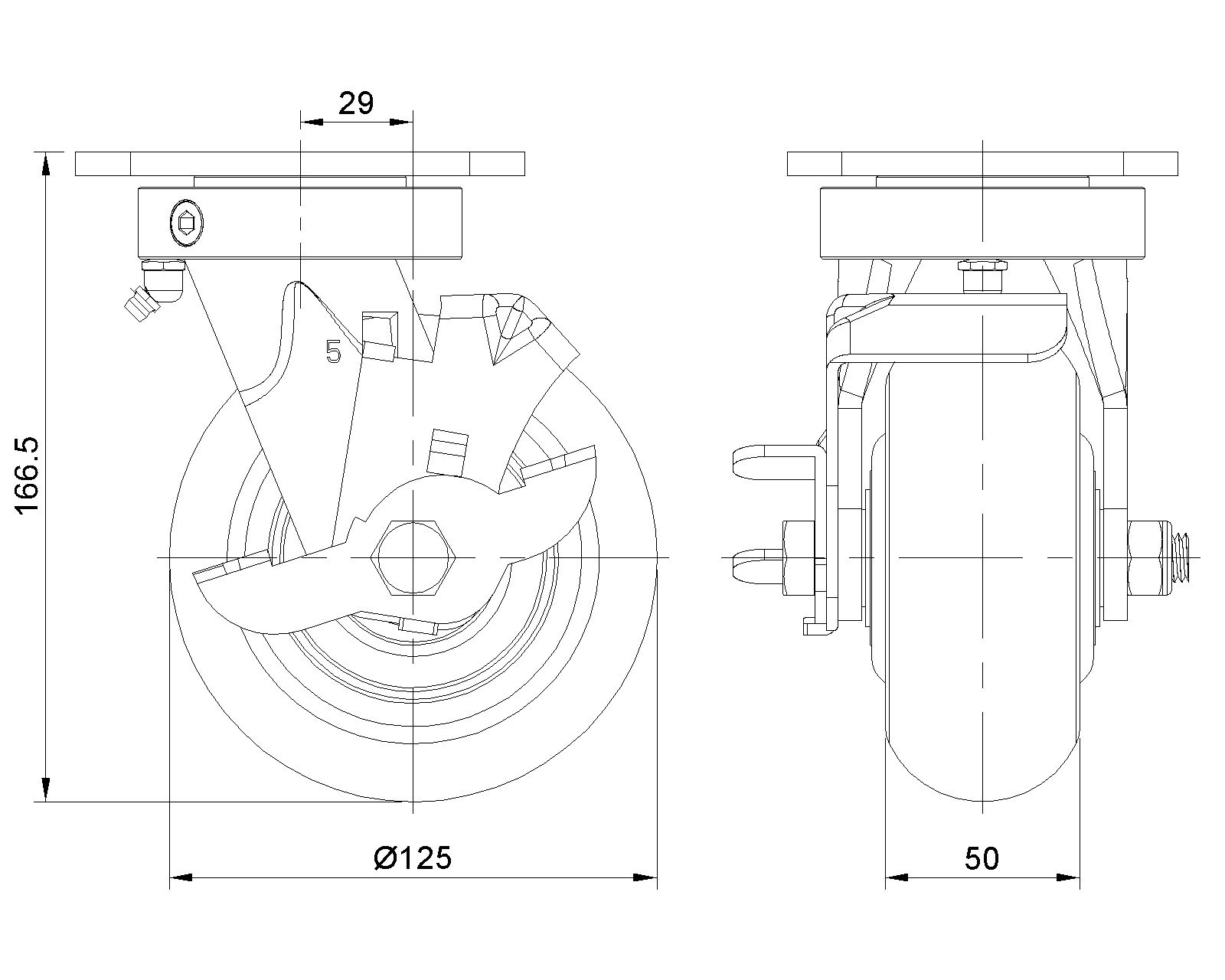

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
50mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm
Offset
29mm
Swivel Interference
204mm
Overall Height
166.5mm
Swivel Radius
102mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
500kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
750kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster With Side Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
3.59kgs
Standard
ISO22883
125 mm
500 Kgs
166.5 mm
