    Product Data Sheet

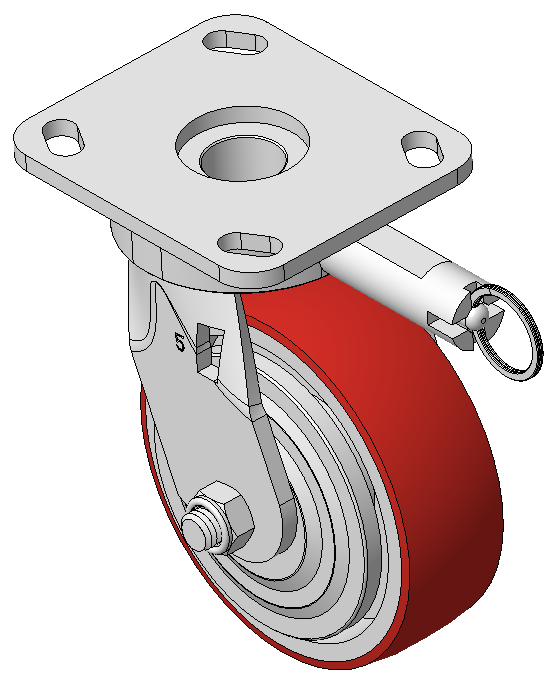

1141 Kingpinless Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11410500333123
　　　　　 　　　
Casters with directional brake and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

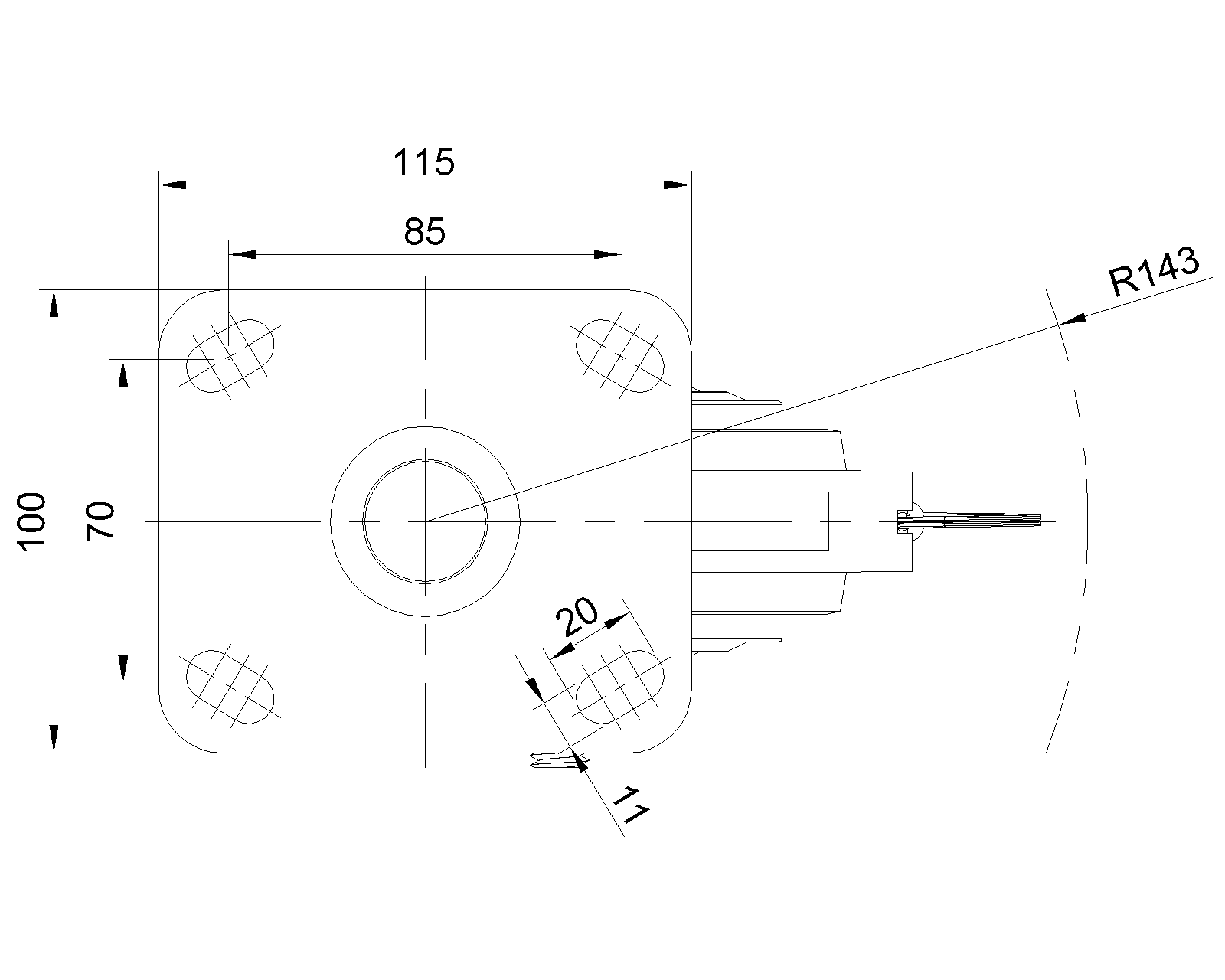

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 29mm　
　　Swivel Interference 286mm　
　　Overall Height 166.5mm　
　　Swivel Radius 143mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 360kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 540kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Directional Lock
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.09kgs　
　　Standard ISO22883
　　
　　
