◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files


1141 Kingpinless Caster Series
　　SPU (black and red round) Wheel Diameter x Wheel Width 150 x 50 mm
　　EAN
　　　　　 KS-11410600464053
　　　　　 　　　
　　
　　

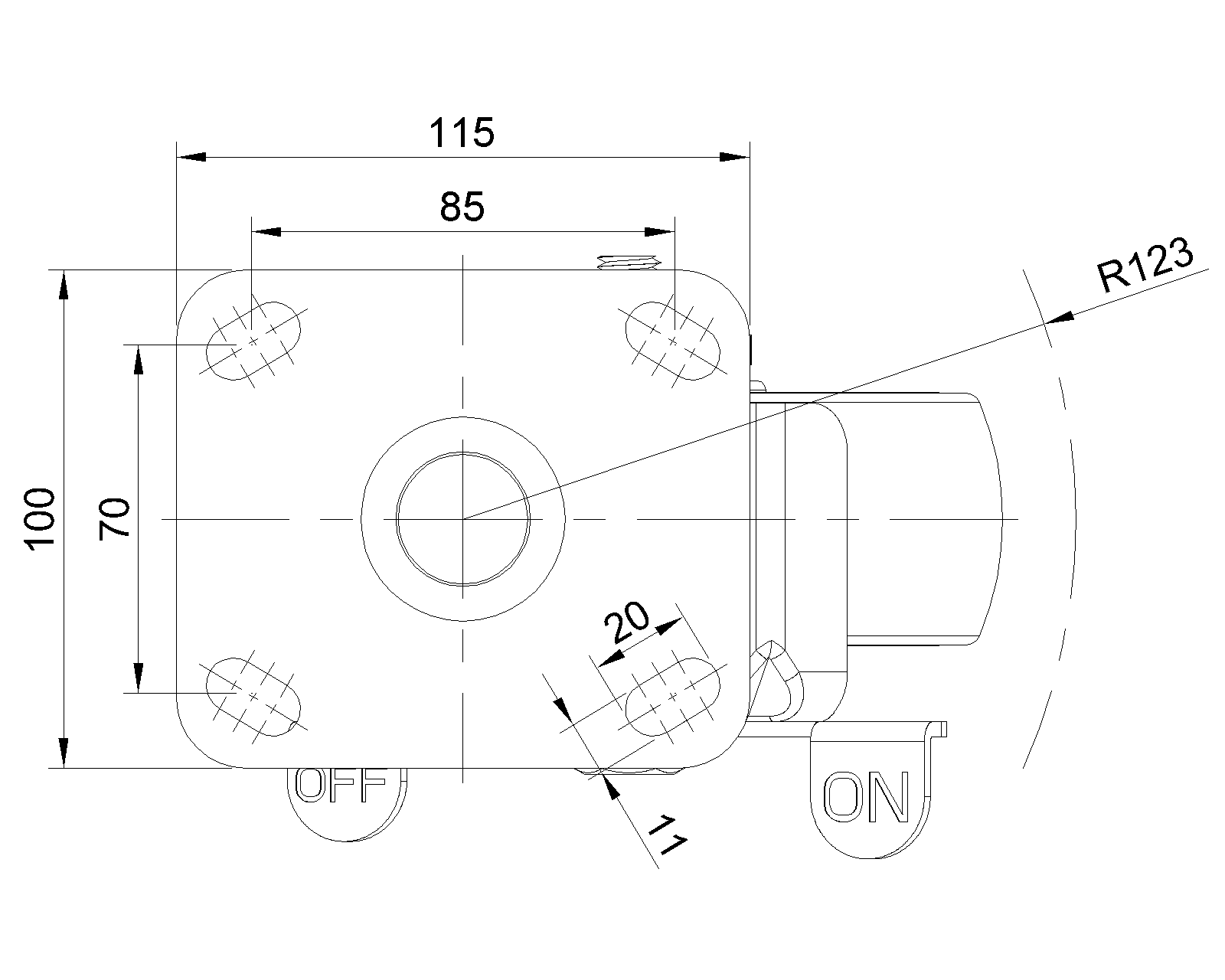

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33.3mm　
　　Swivel Interference 246mm　
　　Overall Height 189mm　
　　Swivel Radius 123mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 410kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 615kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.93kgs　
　　Standard ISO22883
　　
　　
