    Product Data Sheet
1141 Kingpinless Caster Series
　　WHDR (pearl light gray) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11410800501723
　　　　　 　　　

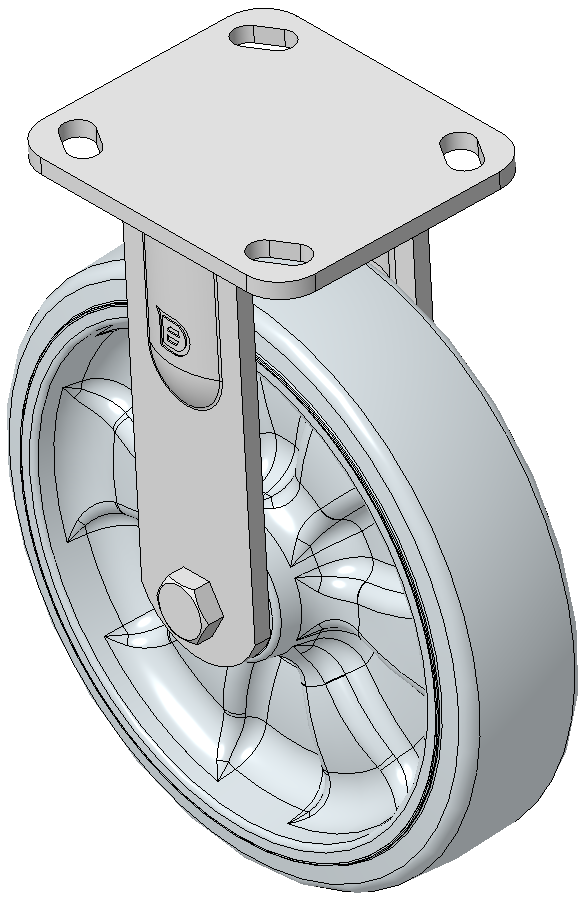

Rigid castor, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 85x70 Cast Iron Wheel Center, High Quality Polyurethane wheel tread, pearlescent light gray Bearing - Ball Bearing
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

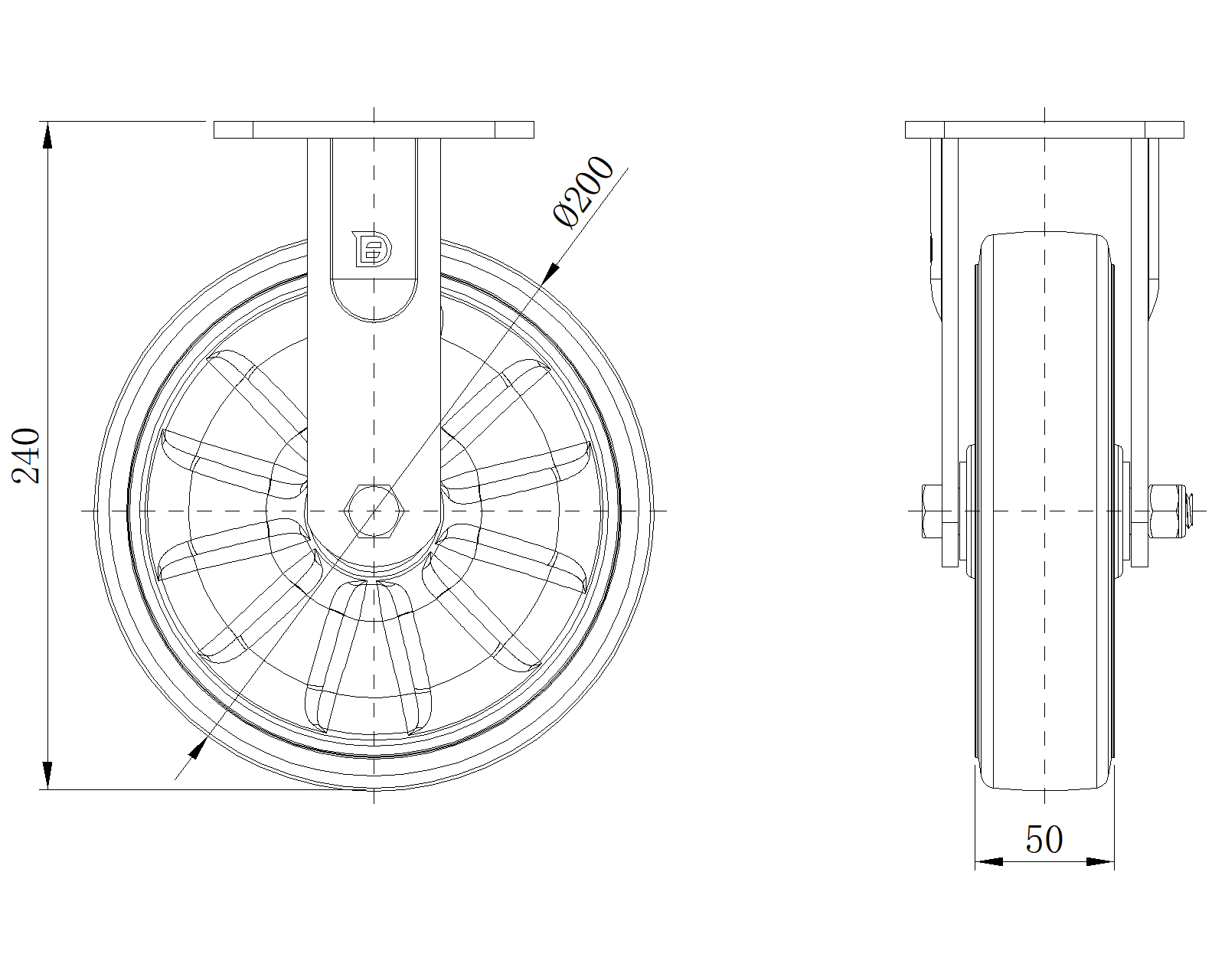

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

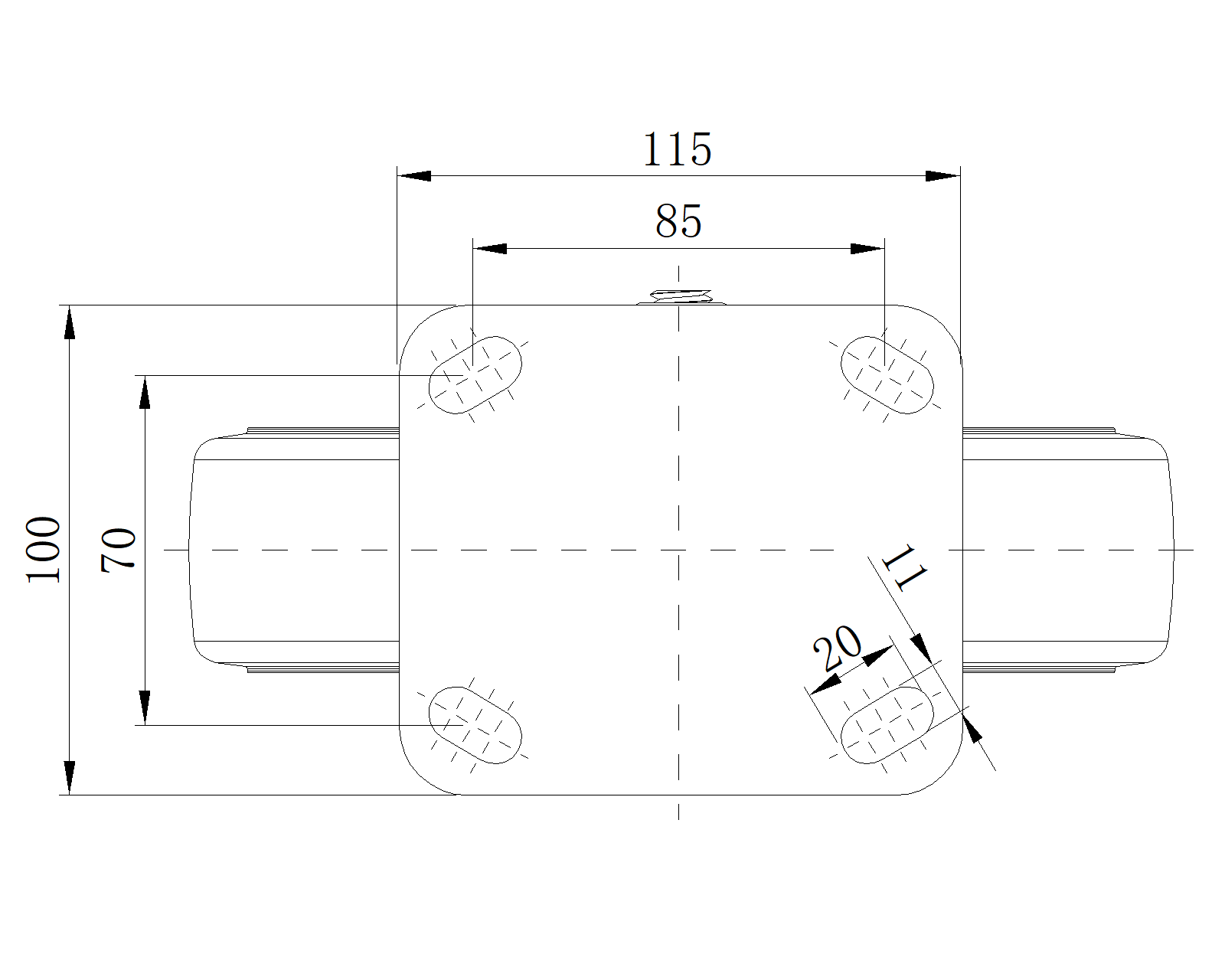

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 240mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 430kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 645kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.44kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

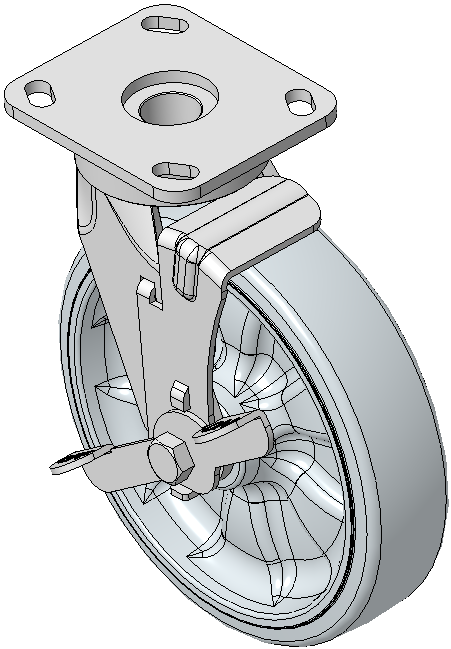

1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800504723
200 mm 430 Kgs 240 mm
Casters with Side Brakes and Locking system, Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread, pearlescent light gray Bearing—Ball Bearing

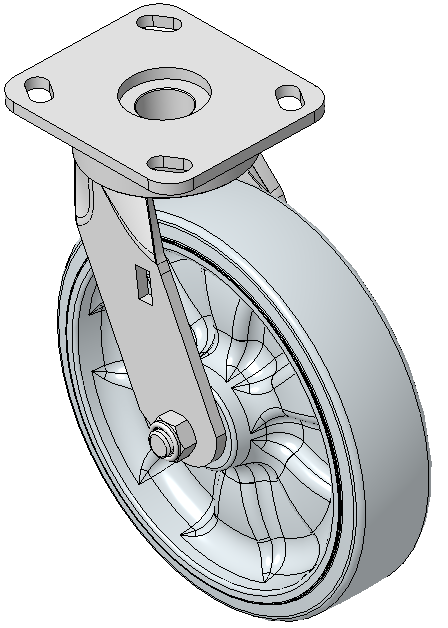

1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800502713A
200 mm 430 Kgs 240 mm
Swivel Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, pearlescent light gray Bearing—Ball Bearing

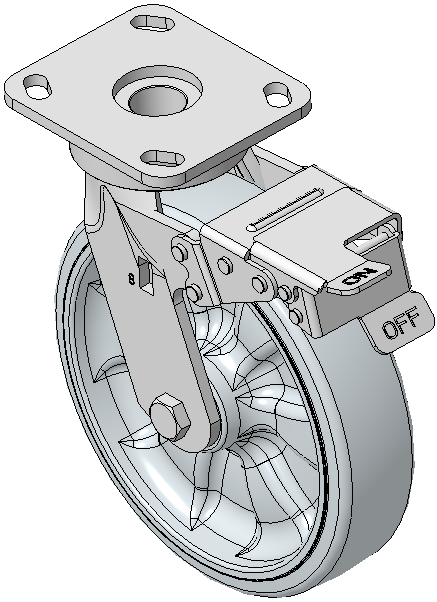

1141 Kingpinless Caster Series
WHDR (pearl light gray) Wheel Diameter x Wheel Width 200 x 50mm
KS-11410800504733
200 mm 430 Kgs 240 mm
Caster with Front Brake locking system, Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread, pearlescent light gray Bearing—Ball Bearing

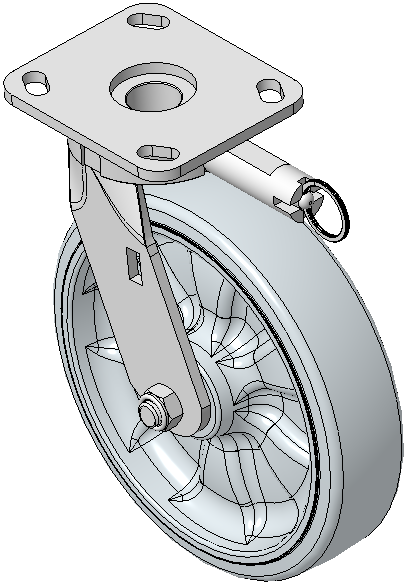

1141 Kingpinless Caster Series
