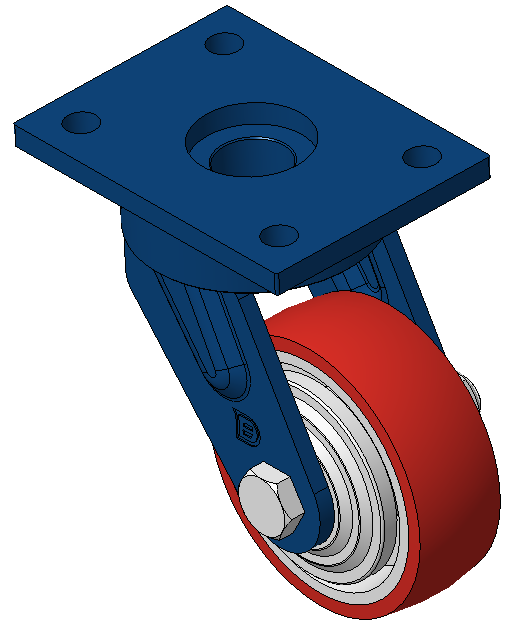

	1142 Kingpinless Caster (B Type) Series
	PU (Red arc) Wheel Diameter × Wheel Width 100 x 34mm
	EAN
	KS-11420400332121



	Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 100mm　　　Wheel Width 34mm
	Wheel Bearing Wheels With Ball Bearings 　　Plate Size 120 x 90mm　　　Bolt Hole Spacing 90 x 60mm　　　Plate Hole 12mm　　　Offset 40.5mm　　　Swivel Interference 184mm　　　Overall Height 147mm　　　Swivel Radius 92mm　　　Hardness Of Tread 93±5° Shore A　　　Load Capacity (Dynamic) 250kgs	Rolling Resistance　　　 ● ● ● ○ ○ 　　Operating Noise　　　　 ● ● ● ● ○ 　　Floor Surface Preservation ● ● ● ● ○
	Load Capacity (Static) 375kgs　　　Temperature -20°C to +70°C　　　Fork Type Swivel Caster
	Stainless N/A 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 2.63kgs　　　Standard ISO22883
