    Product Data Sheet
1142 Kingpinless Caster (B Type) Series
　　QPU (brown flat) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11420400532111
　　　　　 　　　
Portable Casters, Welded Caster Fork, blue painted finish
Base plate Mounting Type device, 90 x 60mm Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

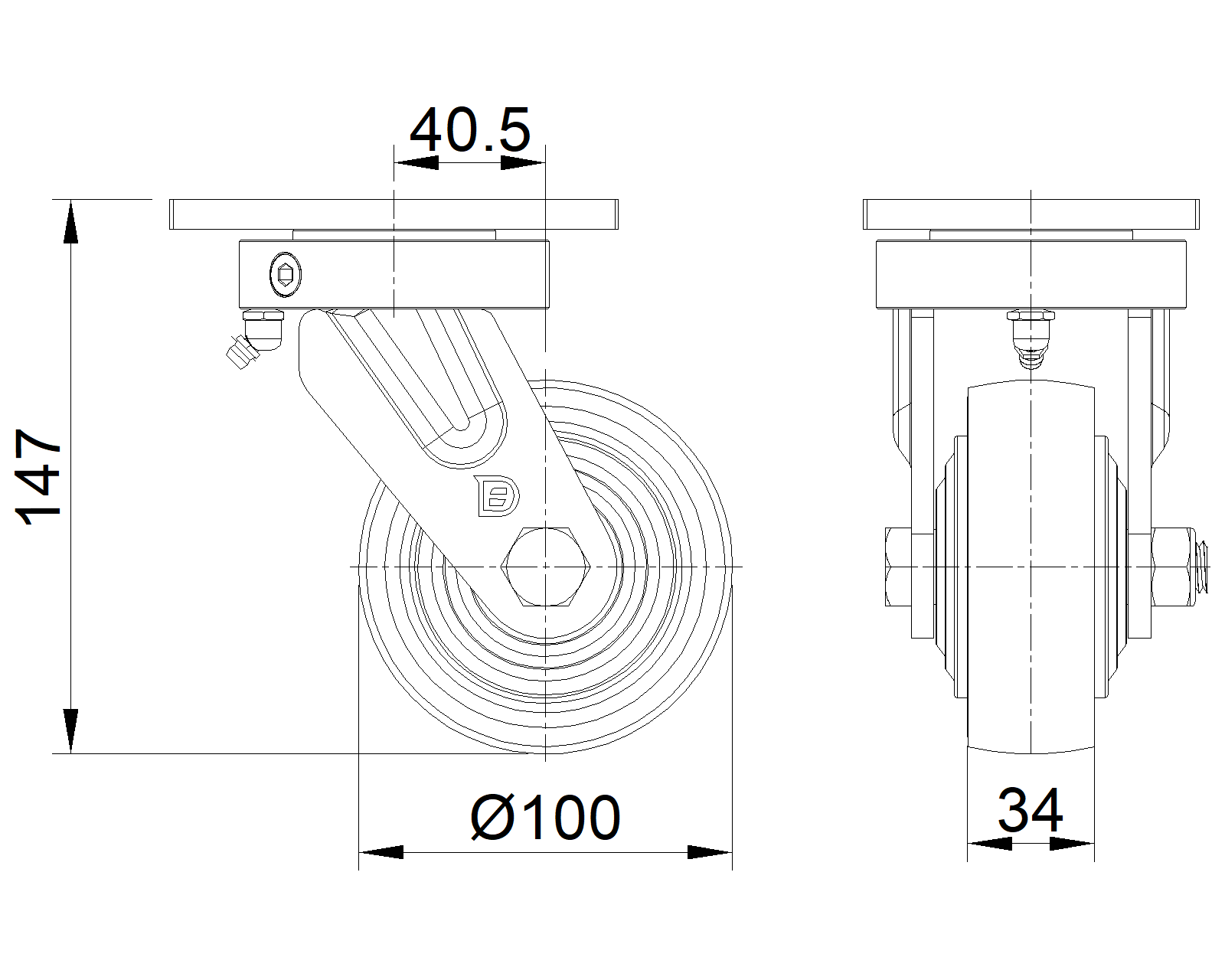

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

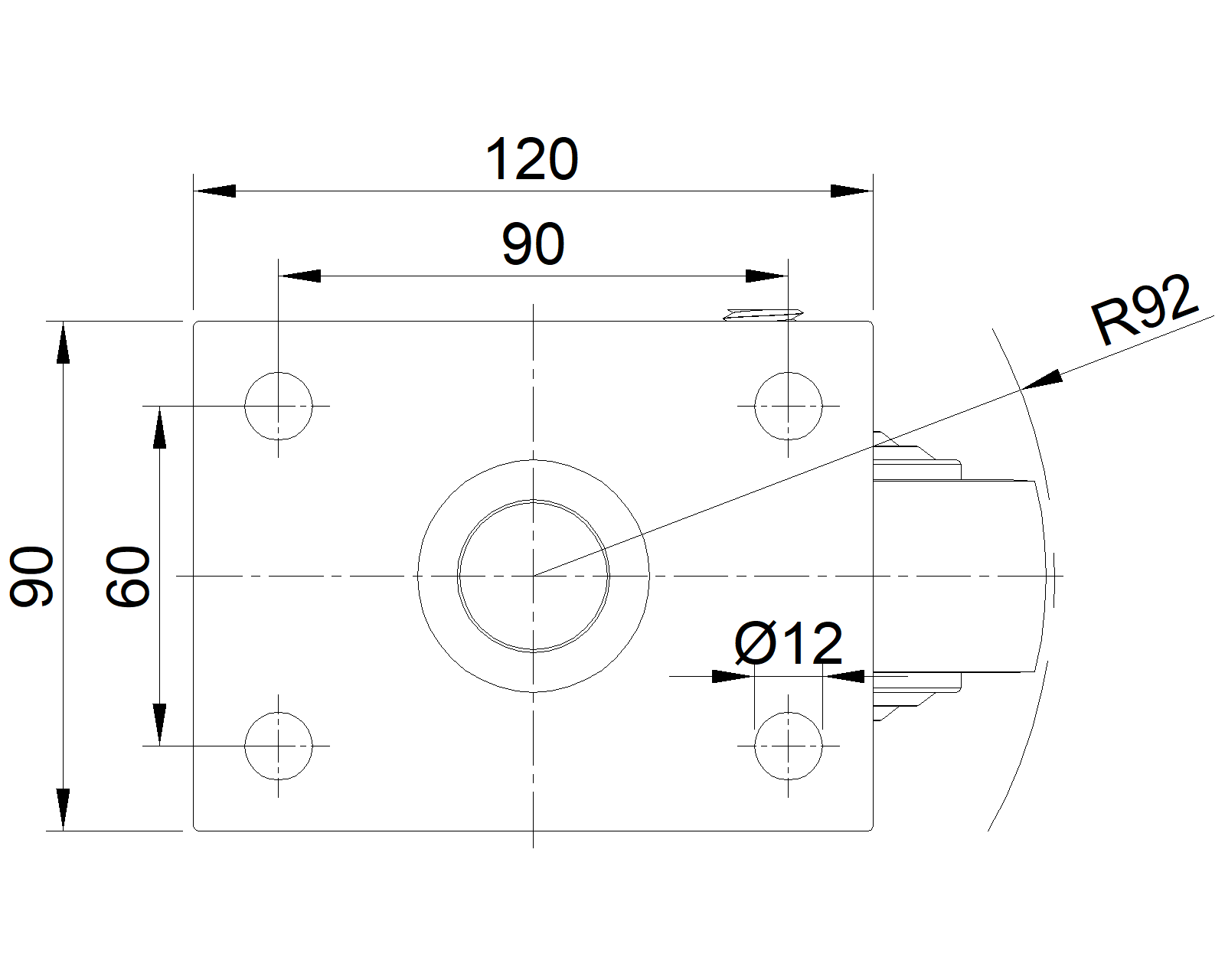

　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Offset 40.5mm　
　　Swivel Interference 184mm　
　　Overall Height 148.4mm　
　　Swivel Radius 92mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 335kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 502.5kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.59kgs　
　　Standard ISO22883
　　
　　
