    Product Data Sheet

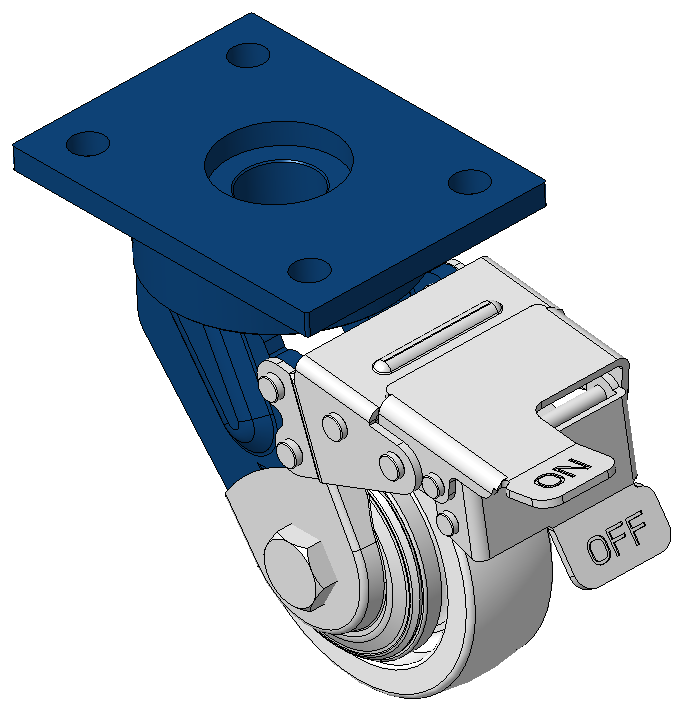

1142 Kingpinless Caster (B Type) Series
　　CPD Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 KS-11420400294021
　　　　　 　　　
Casters with front brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Polypropylene Wheel Center, natural Wheel Tread Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 12mm　
　　Offset 42mm　
　　Swivel Interference 316mm　
　　Overall Height 170mm　
　　Swivel Radius 158mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 300kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.93kgs　
　　Standard ISO22883
　　
　　
