    Product Data Sheet
1142 Kingpinless Caster (B Type) Series
　　QPU (brown round) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11420800532251
　　　　　 　　　

Swivel Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

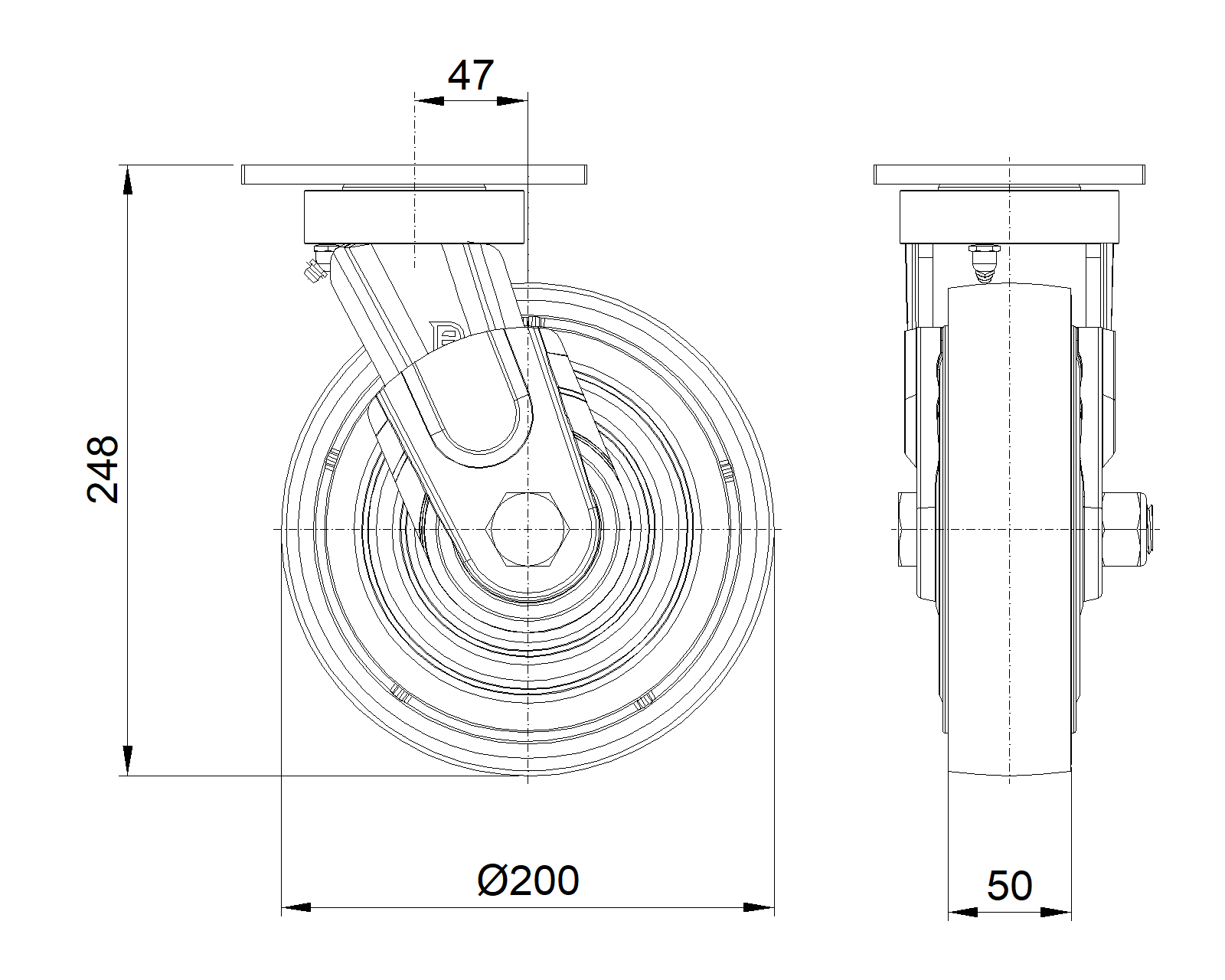

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 050mm　
　　Wheel Bearing Wheels With Ball Bearings

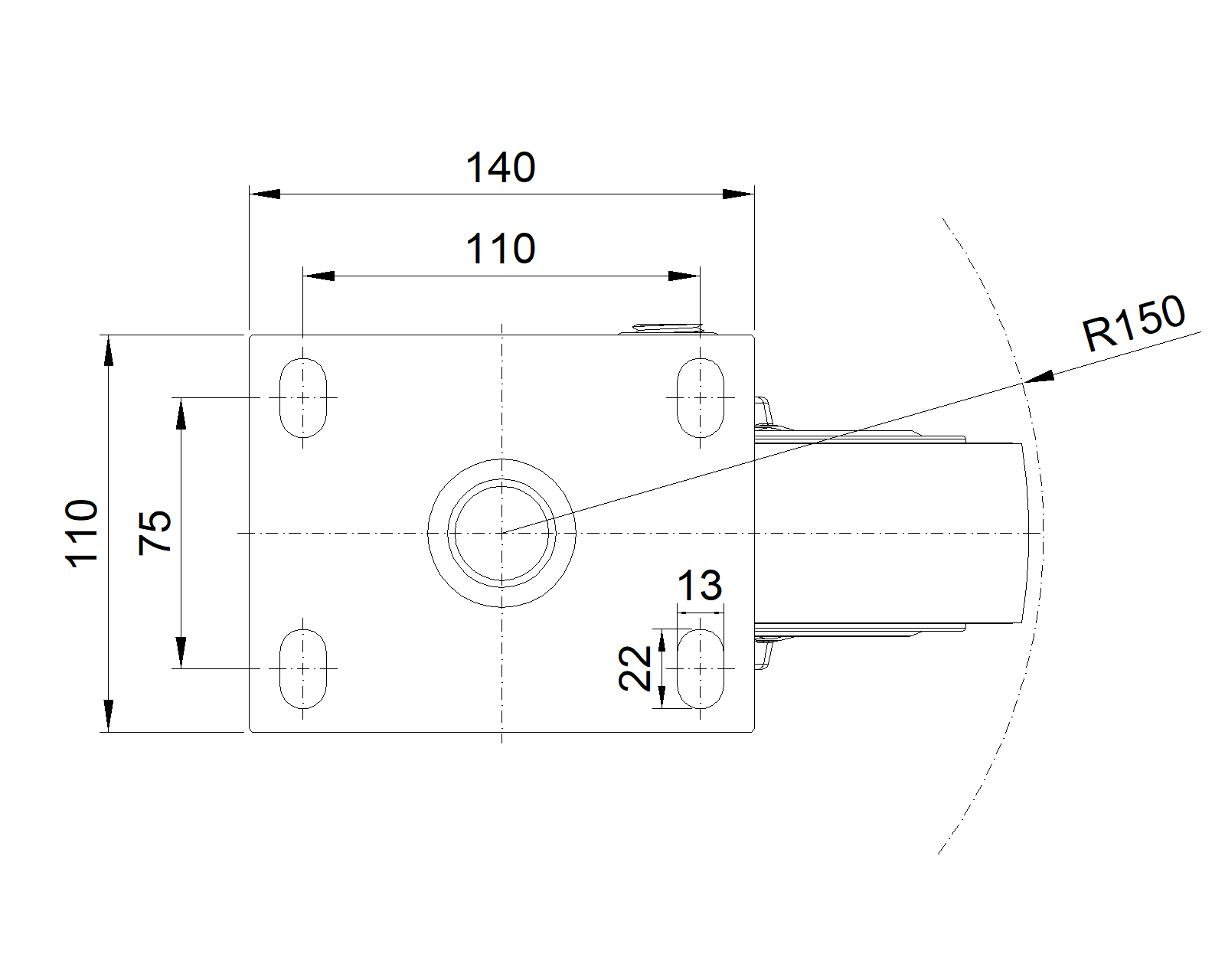

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 13 x 22mm　
　　Offset 47mm　
　　Swivel Interference 300mm　
　　Overall Height 248mm　
　　Swivel Radius 150mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 670kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1005kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.15kgs　
　　Standard ISO22883
　　
　　
