    Product Data Sheet

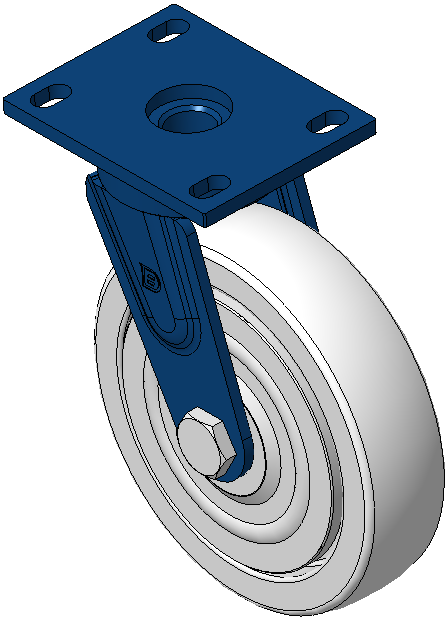

1142 Kingpinless Caster (B Type) Series
　　MRC (Transparent) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11420800072011
　　　　　 　　　

Swivel Caster, Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Reinforced Polypropylene Wheel Center, natural color Wheel Tread
Bearings—Ball Bearings
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

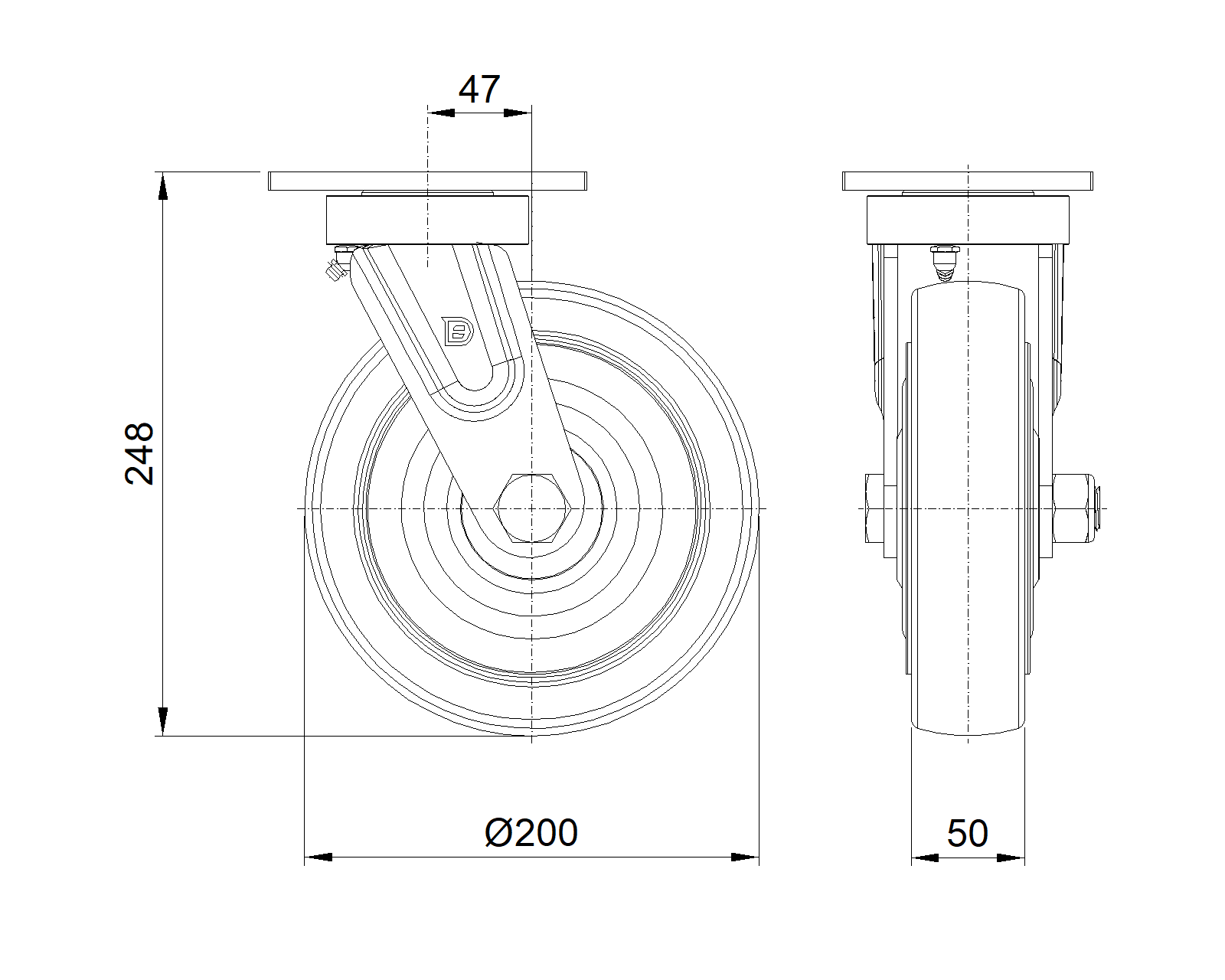

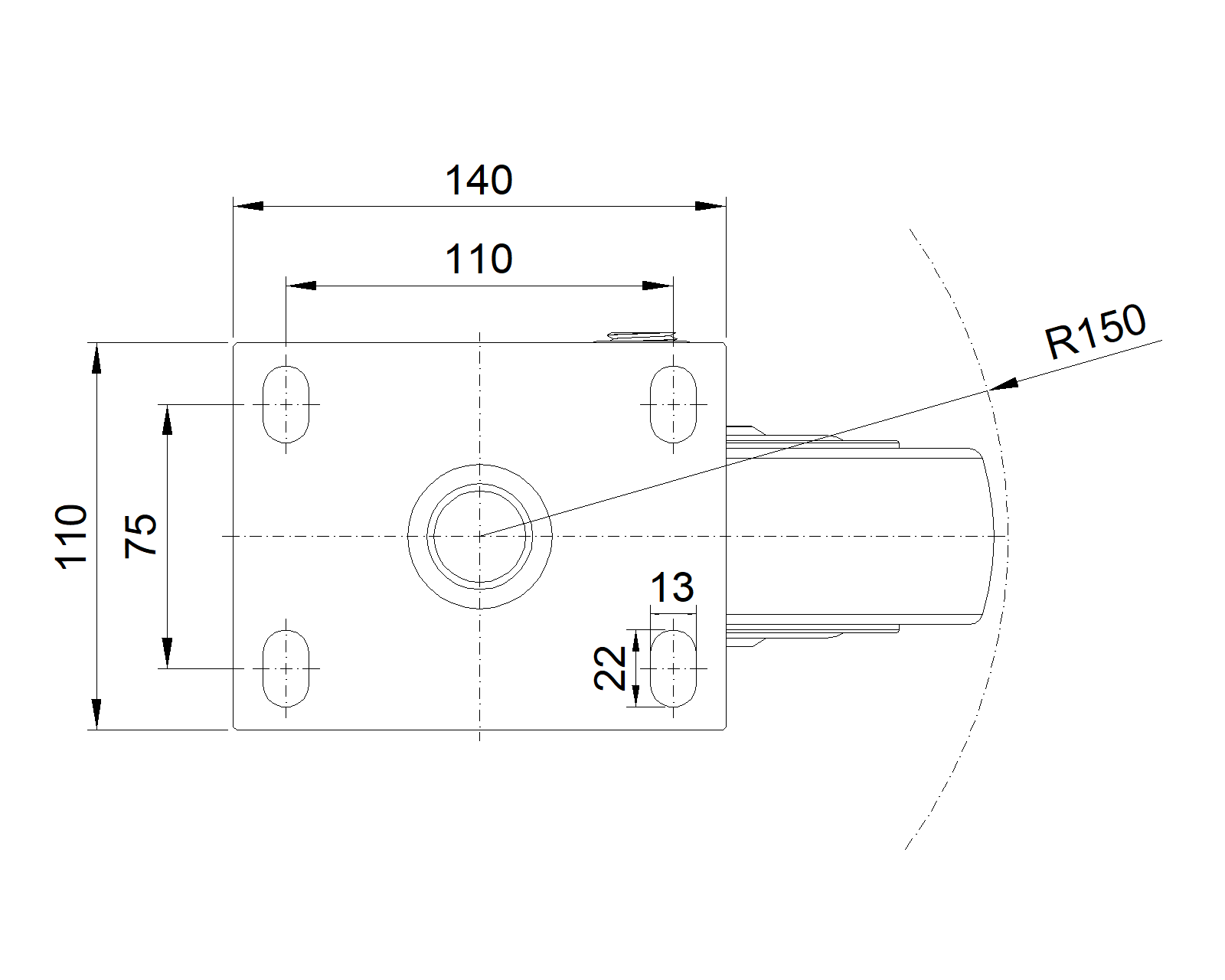

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 050mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 13 x 22mm　
　　Offset 47mm　
　　Swivel Interference 300mm　
　　Overall Height 248mm　
　　Swivel Radius 150mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.53kgs　
　　Standard ISO22883
　　
　　
