    Product Data Sheet
1142 Kingpinless Caster (B Type) Series
　　Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11420500044021
　　　　　 　　　
Casters with front brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron in natural color Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel surface: Made of high-quality and highly elastic rubber
　　Wheel Center: iron core/cast iron core

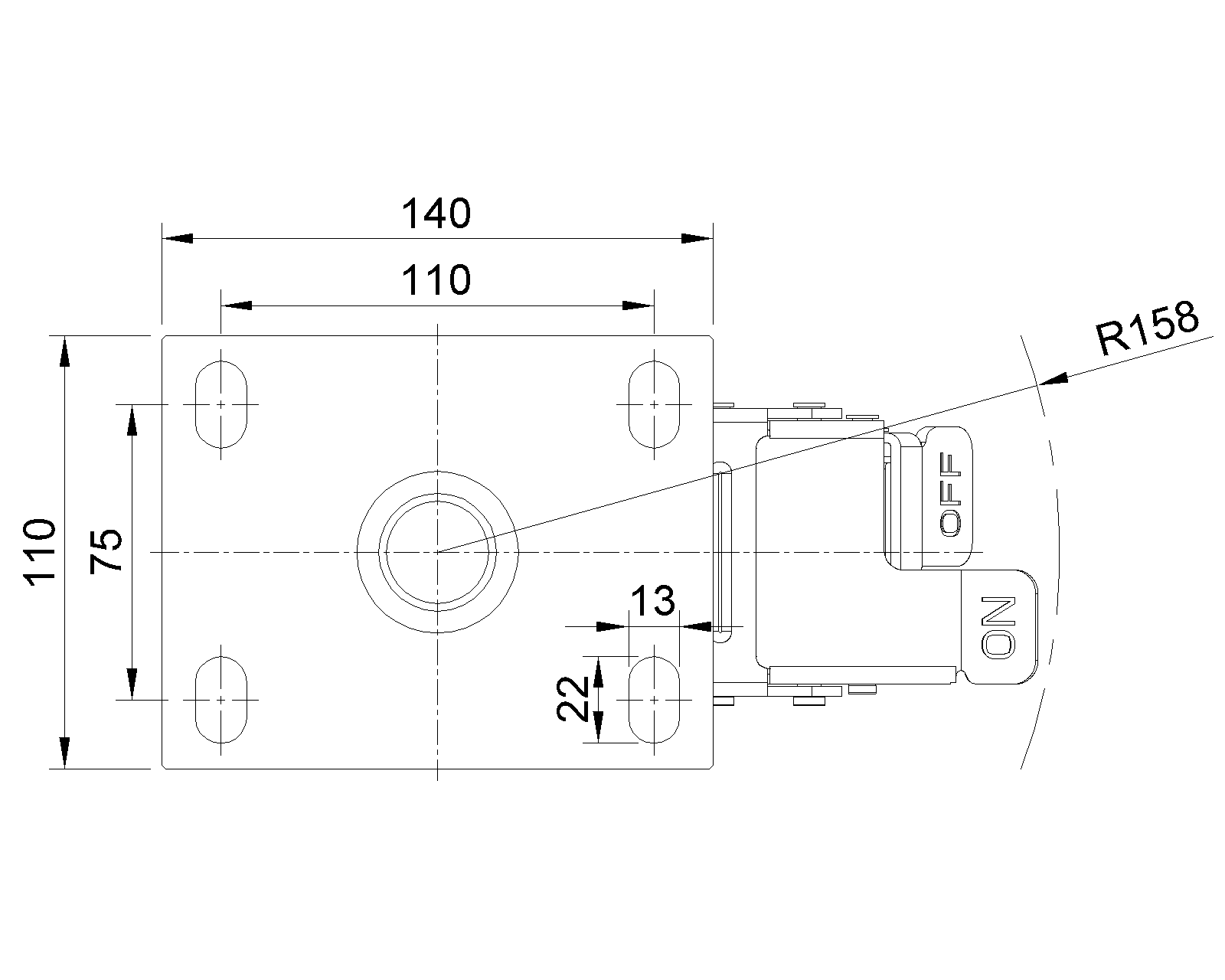

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 316mm　
　　Overall Height 170mm　
　　Swivel Radius 158mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.62kgs　
　　Standard ISO22883
　　
　　
