    Product Data Sheet
1142 Kingpinless Caster (B Type) Series
　　QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
　　EAN
　　　　　 KS-11420600532121
　　　　　 　　　
Swivel Caster, Welded Caster Fork Surface sprayed with blue paint, Mounting Type - Top Plate, Hole spacing 85x70 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown Bearing-Ball Bearing
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

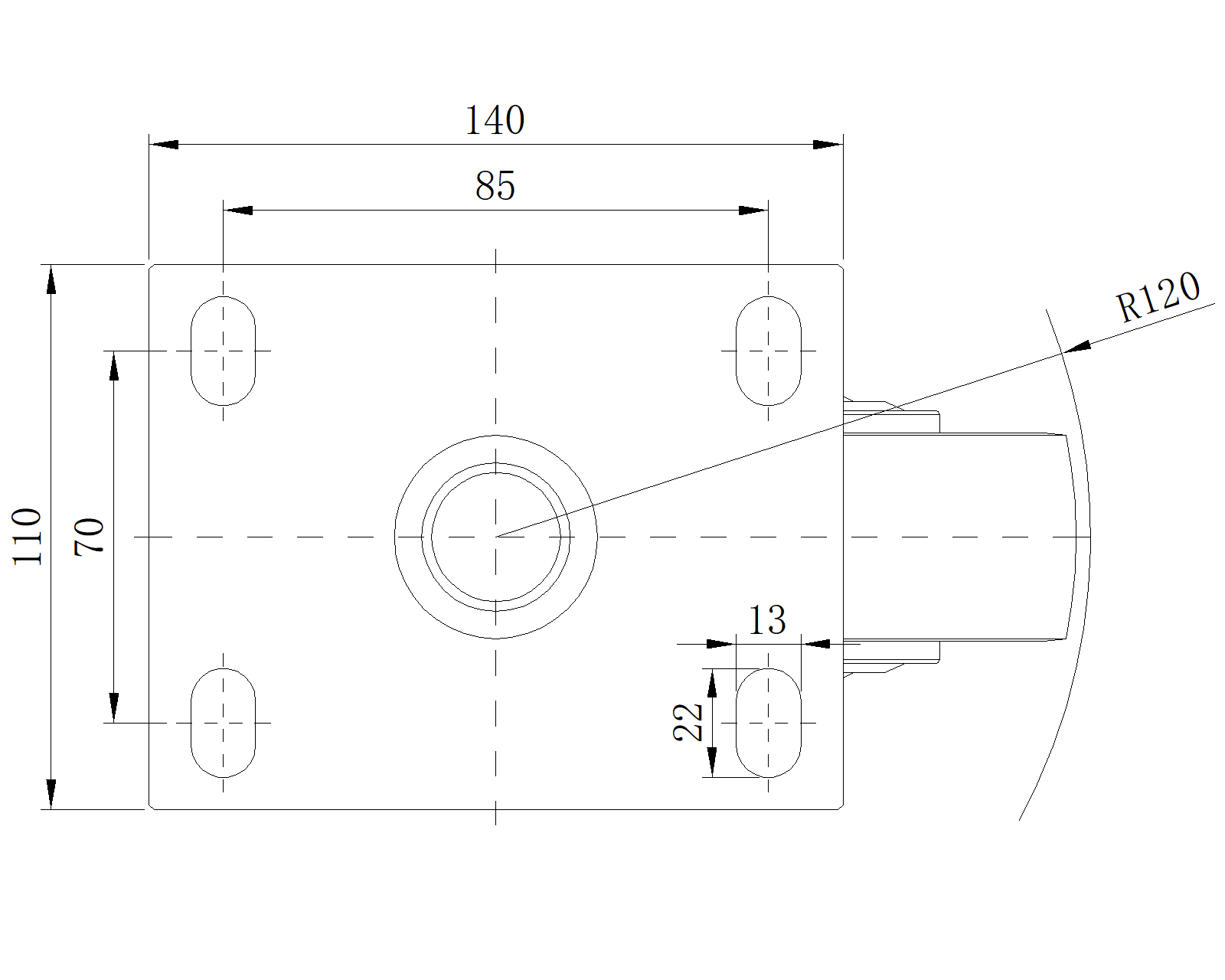

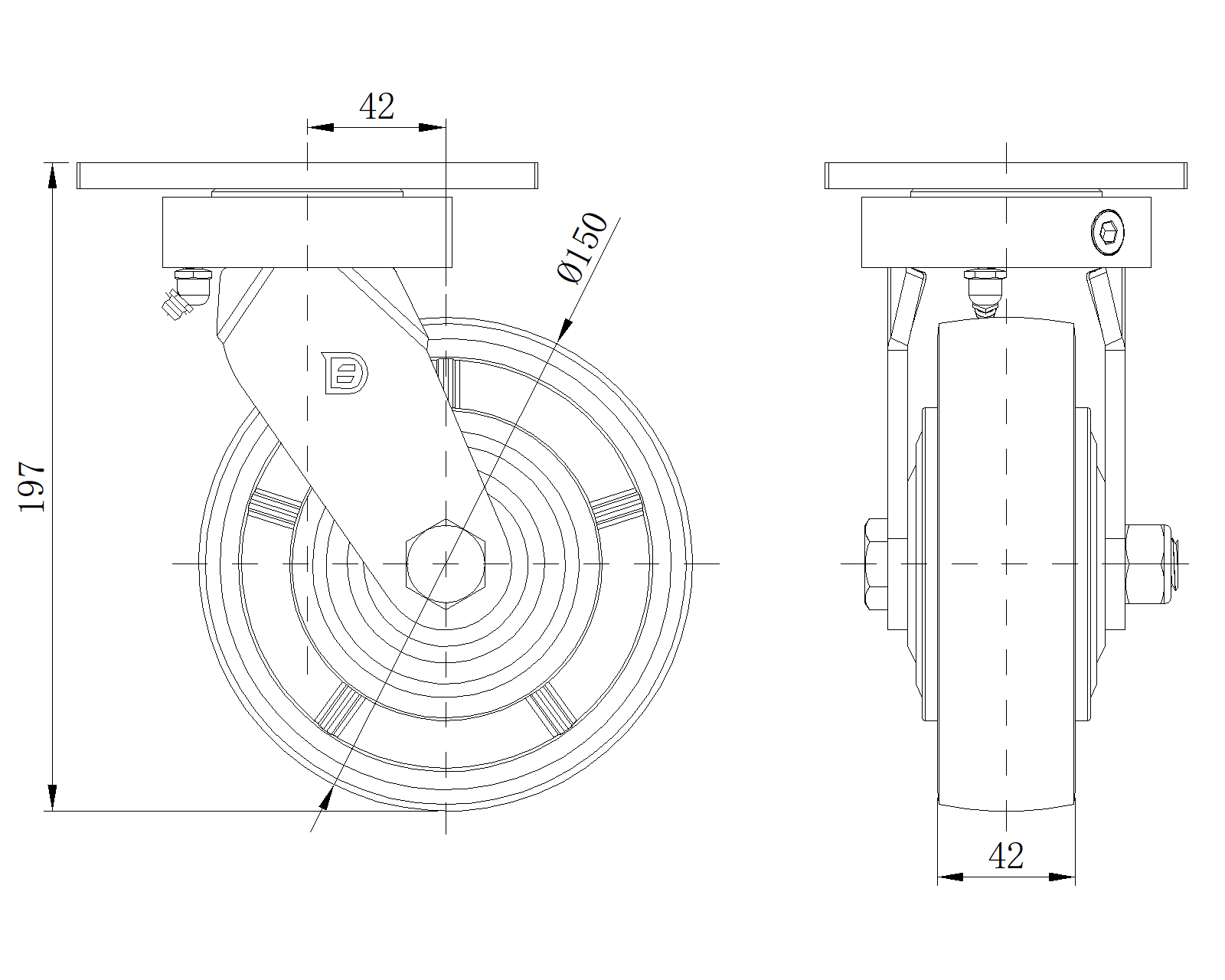

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 240mm　
　　Overall Height 197mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 550kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 825kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.48kgs　
　　Standard ISO22883
　　
　　
