    Product Data Sheet
1142 Kingpinless Caster (B Type) Series
　　CPD Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 KS-11420600292031
　　　　　 　　　
Swivel Casters, Welded Caster Fork Surface sprayed with blue paint, Mounting Type - Top Plate, Hole spacing 85x70 Polypropylene Wheel Center, Wheel Tread Natural Color Bearing—Ball Bearing, with special Anti-thread wheel covers
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

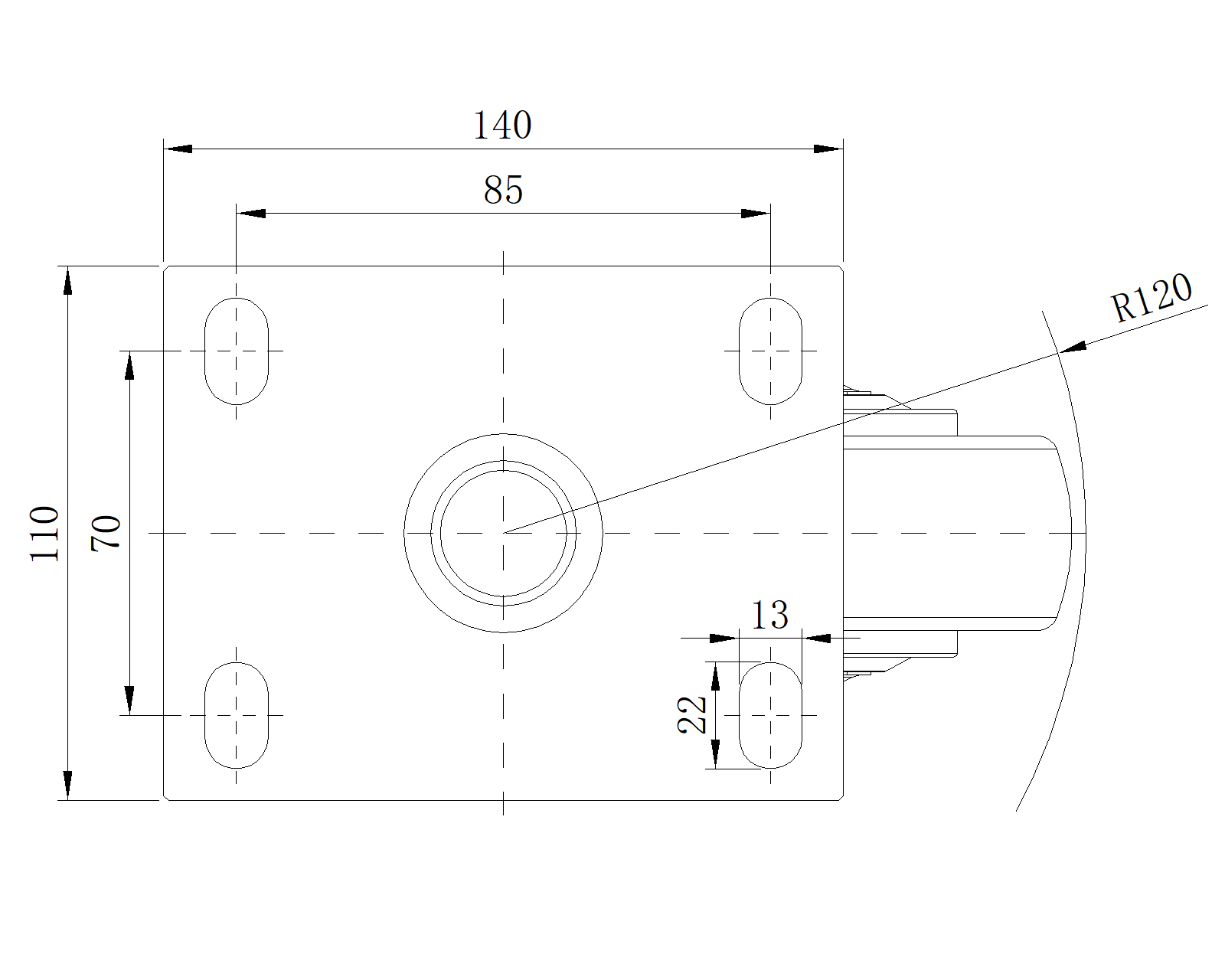

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 240mm　
　　Overall Height 197mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 600kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.44kgs　
　　Standard ISO22883
　　
　　
