White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
Wheel Center: Made of high-quality impact-resistant polypropylene

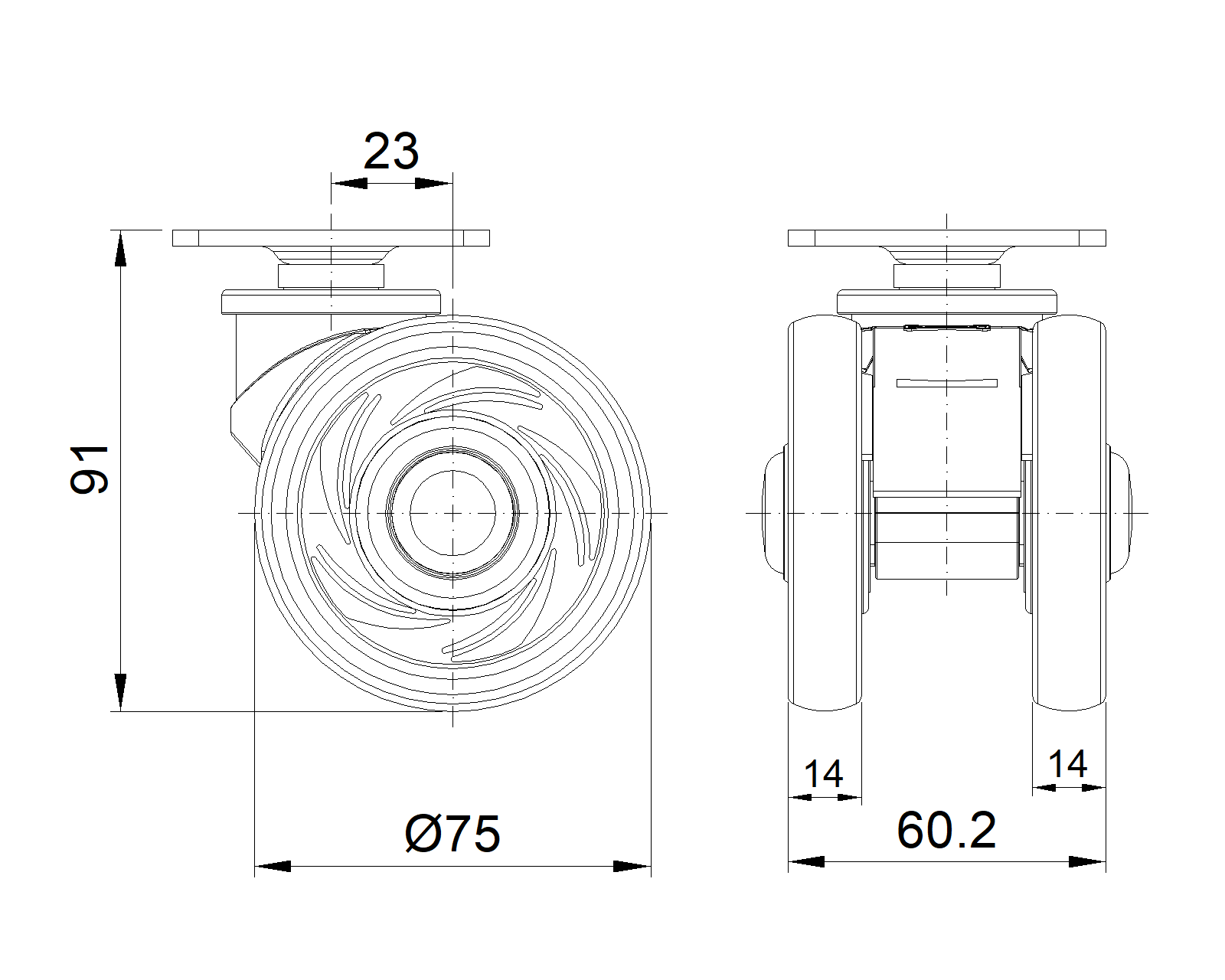

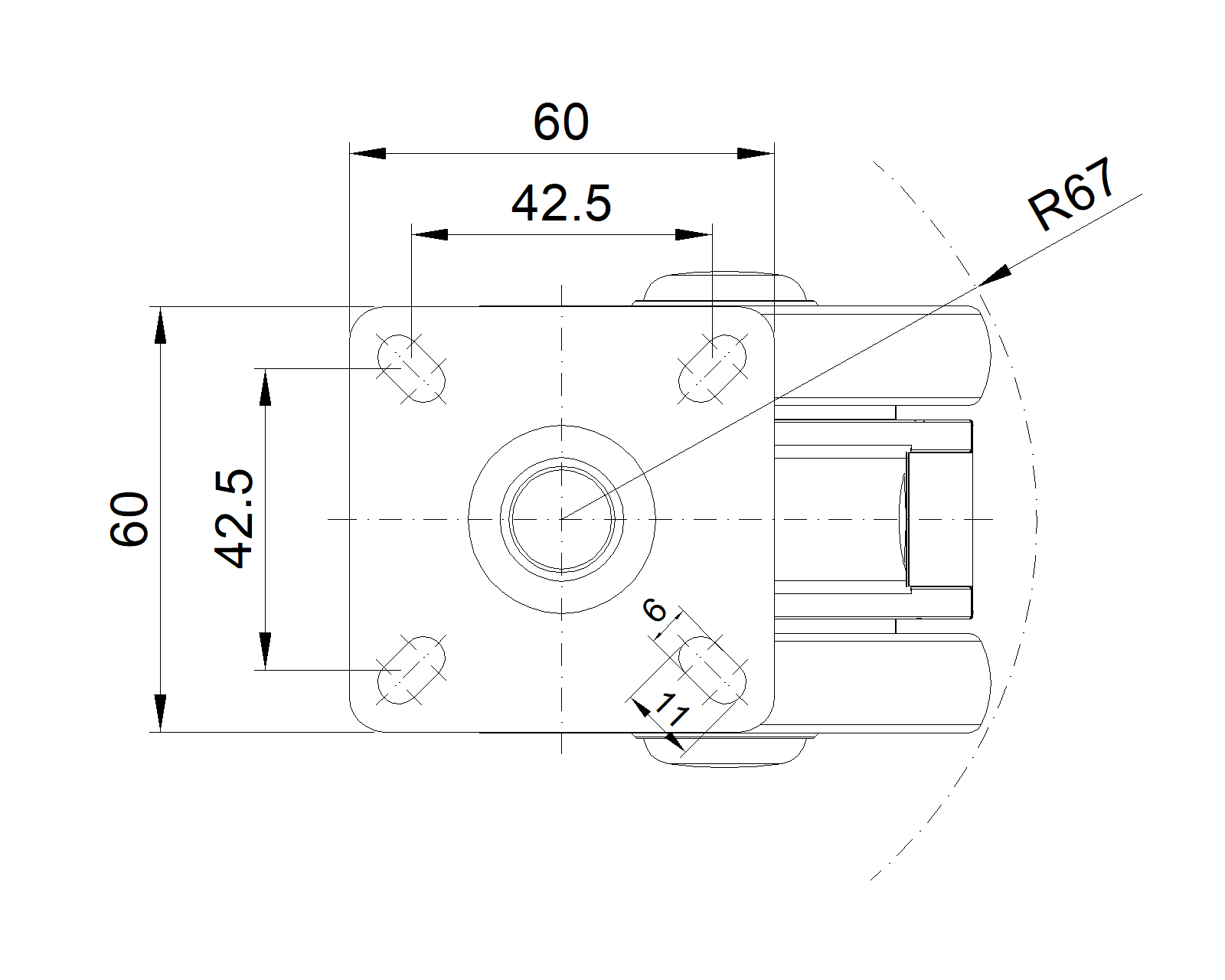

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
60mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
60 x 60mm
Bolt Hole Spacing
42.5x42.5mm
Plate Hole
11 x 6mm
Offset
23mm
Swivel Interference
134mm
Overall Height
84mm
Swivel Radius
67mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
90kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
135kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.32kgs
Standard
ISO22881
