    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (white dark gray) Wheel Diameter x Wheel Width 100 x 14mm
　　EAN
　　　　　 KS-11460491456283A
　　　　　 　　　
Long Total Brake Casters, Threaded Stem M12x17
White legs made of polypropylene reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and rotates smoothly
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

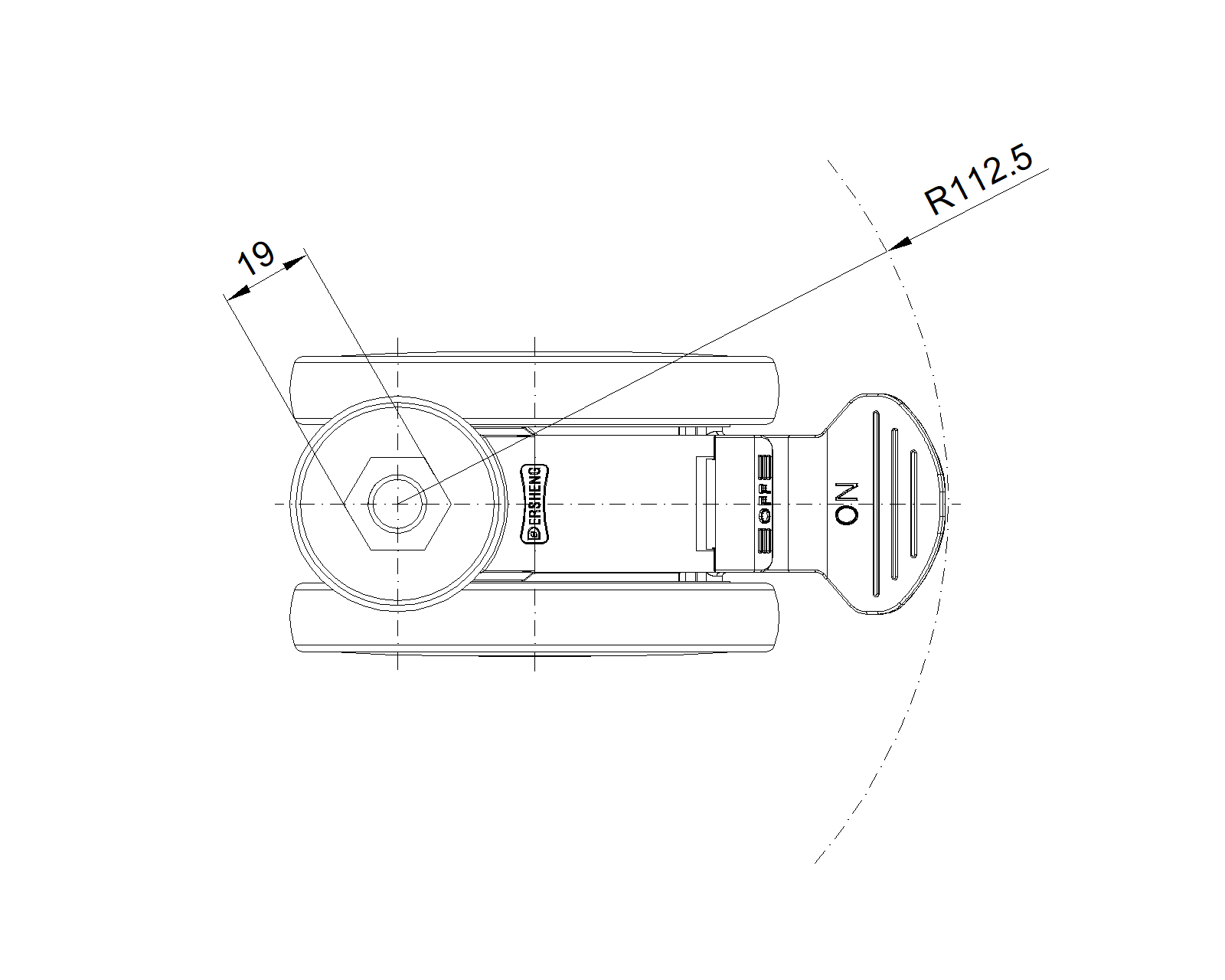

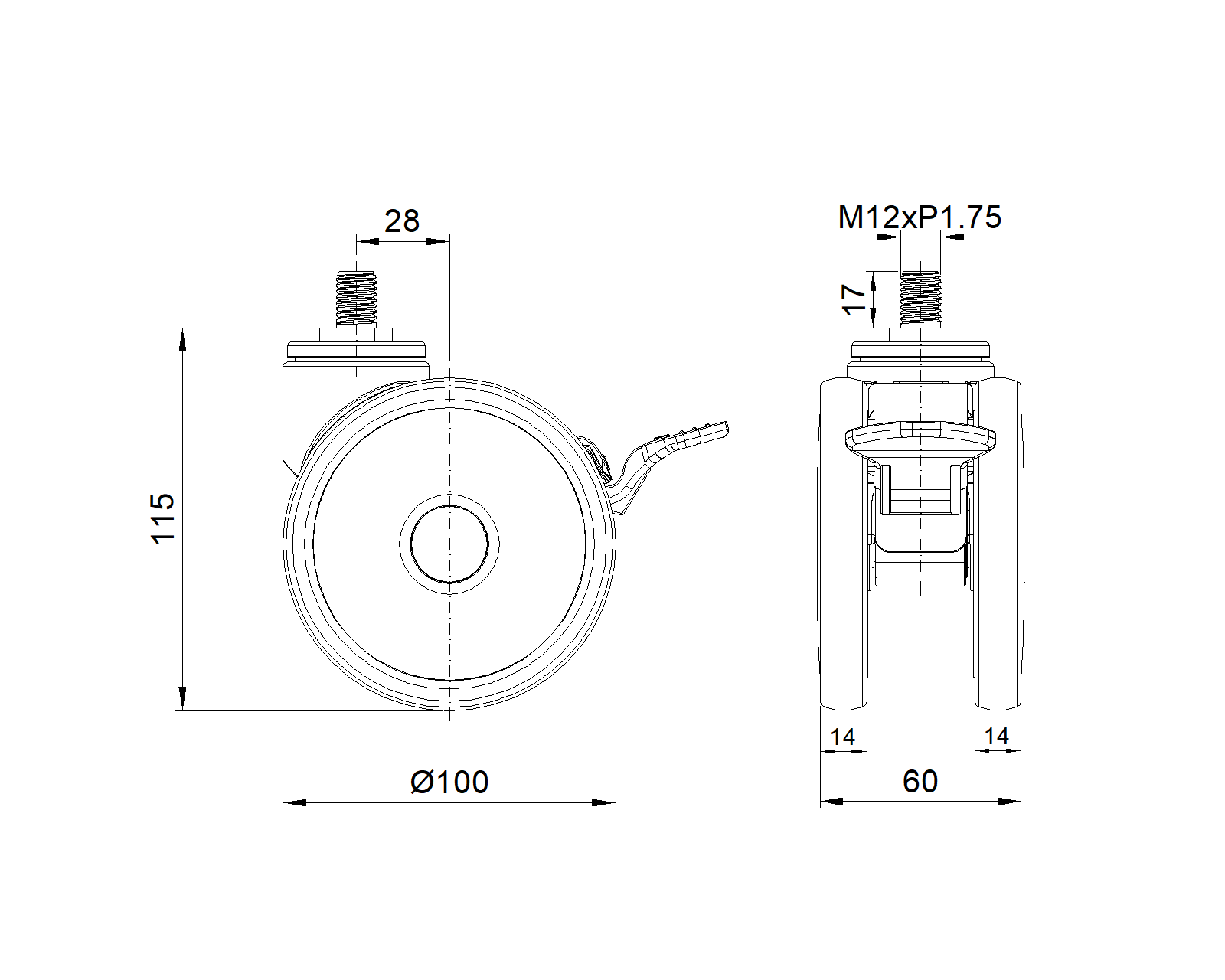

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 60mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12
　　Threaded Length 17mm
　　Offset 28mm　
　　Swivel Interference 225mm　
　　Overall Height 115mm　
　　Swivel Radius 112.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.55kgs　
　　Standard ISO22881
　　
　　
