    Product Data Sheet

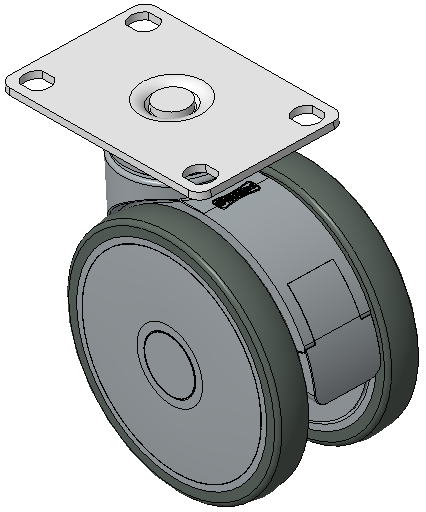

1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (Window Grey Dark Grey) Wheel Diameter x Wheel Width 100 x 14mm
　　EAN
　　　　　 KS-11460491451043
　　　　　 　　　
Rigid Casters, 75x45 angled hole Top Plate
Window gray Casters made of polypropylene reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for Smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

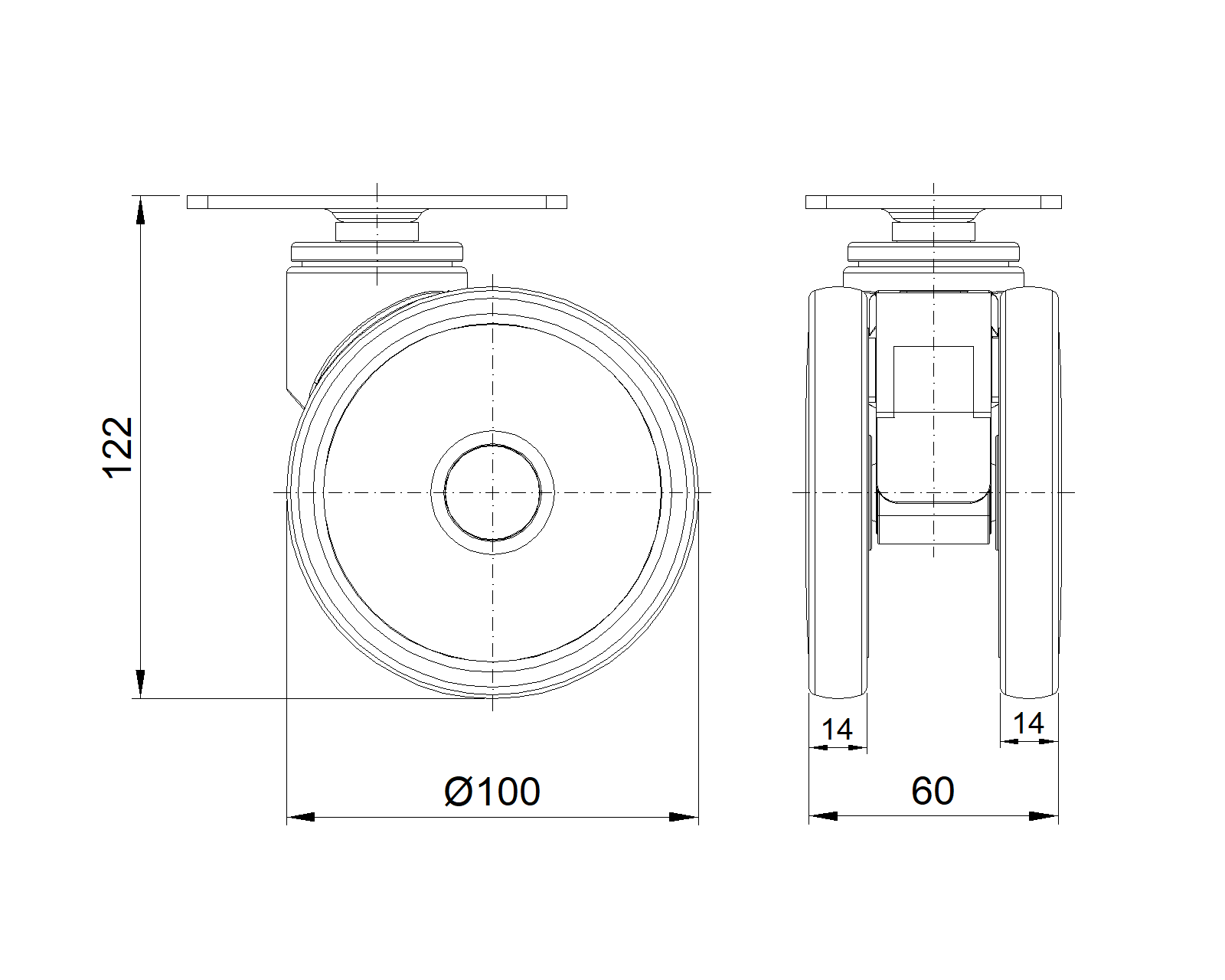

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 60mm　
　　Wheel Bearing Wheels With Ball Bearings

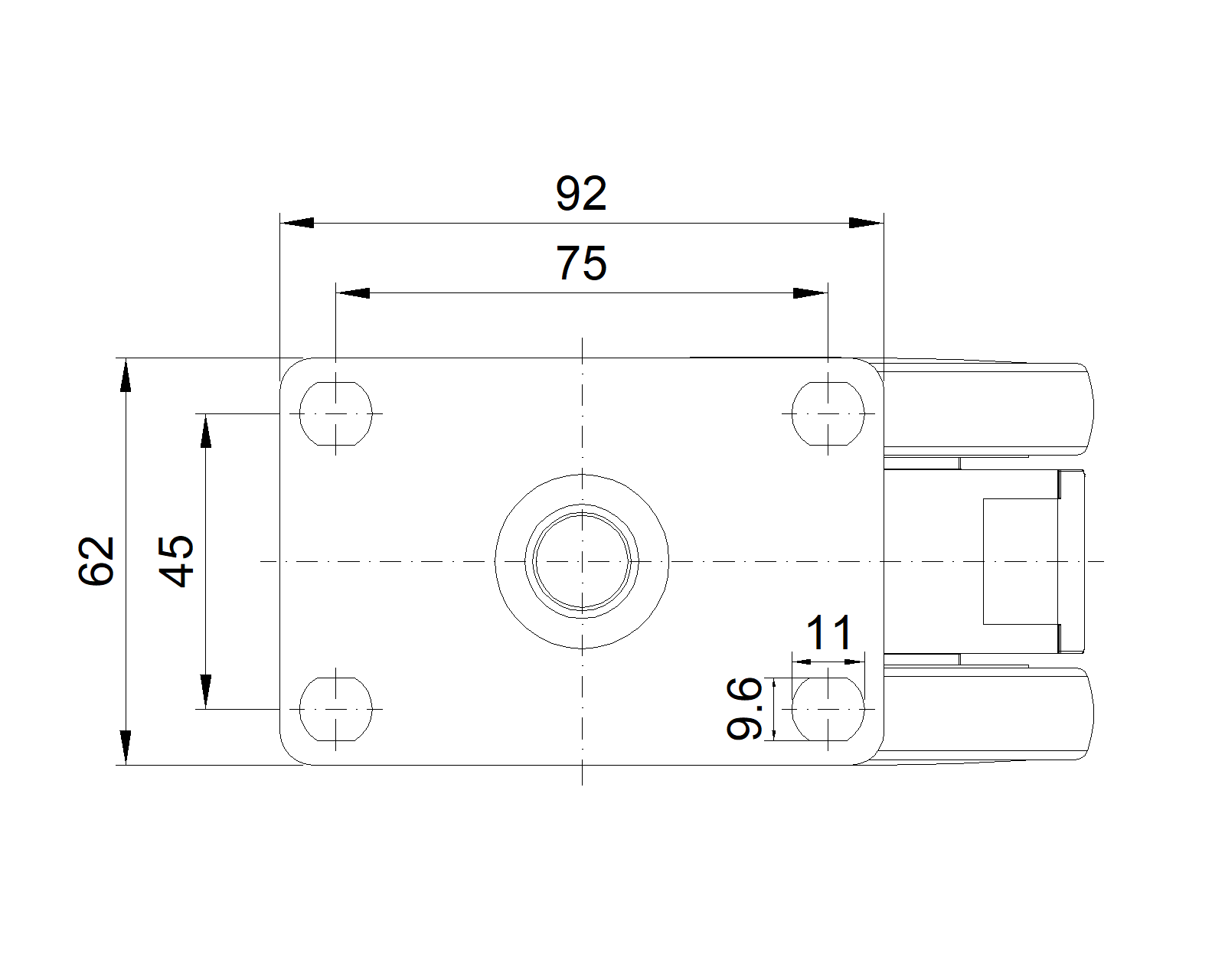

　　Plate Size 62 x 92mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 11 x 9.6mm　
　　Overall Height 122mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.56kgs　
　　Standard ISO22881
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

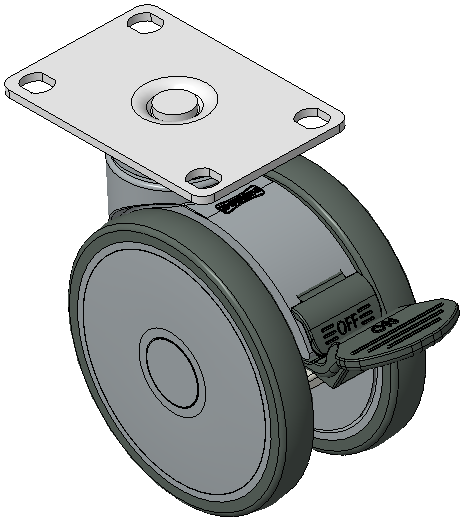

1146 46 Ascendant Series Caster Series(All Plastic)
