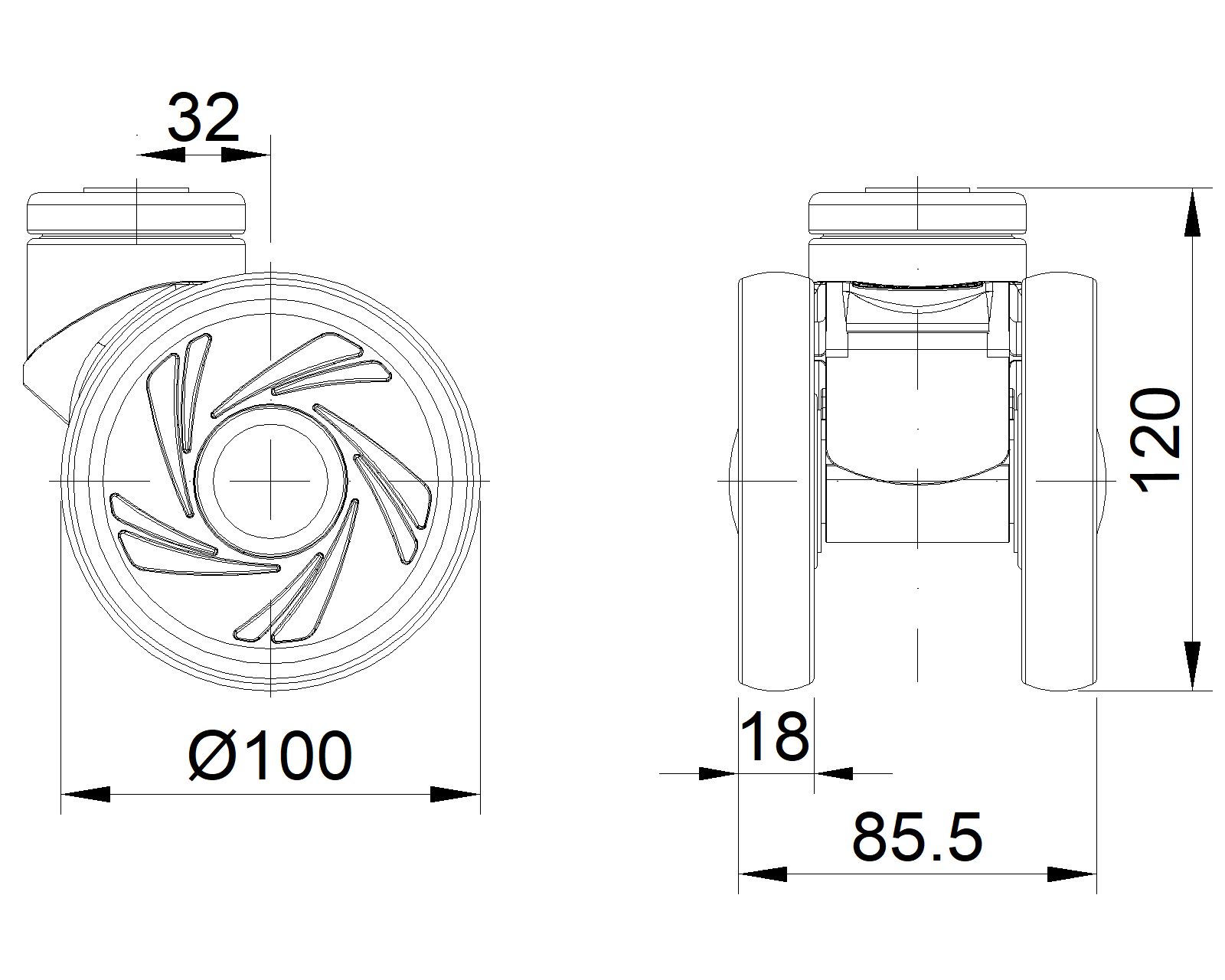

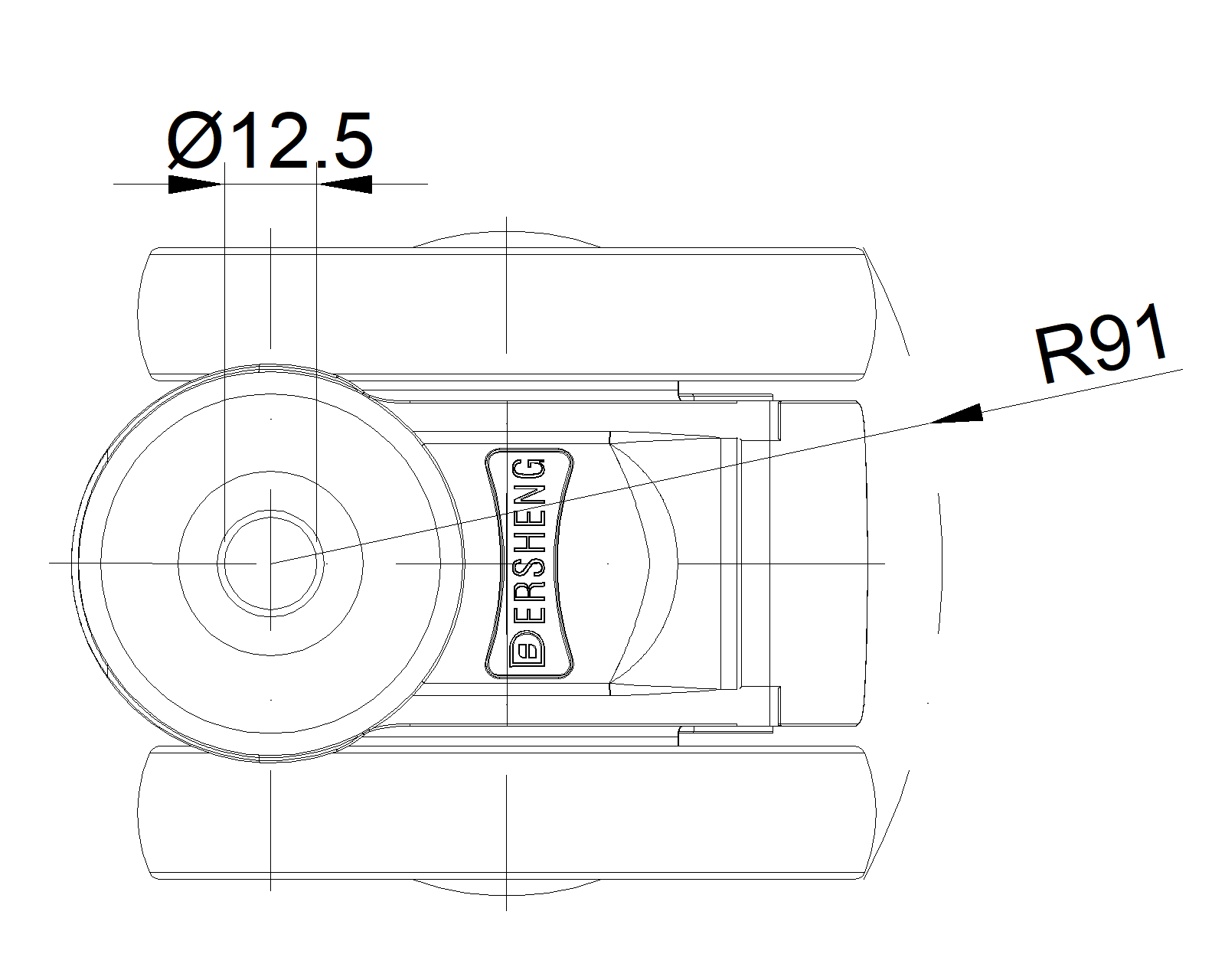

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
85.5mm
Wheel Bearing
Wheels With Ball Bearings
Single Bolt HoleCentre Hole
12.5mm
Offset
32mm
Swivel Interference
182mm
Overall Height
120mm
Swivel Radius
91mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
100kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
150kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.58kgs
Standard
ISO22881
