    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (white dark gray) Wheel Diameter x Wheel Width 125 x 18mm
　　EAN
　　　　　 KS-11460500455063
　　　　　 　　　

Swivel Casters, Threaded Stem M16x25
White legs made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and rotates smoothly
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

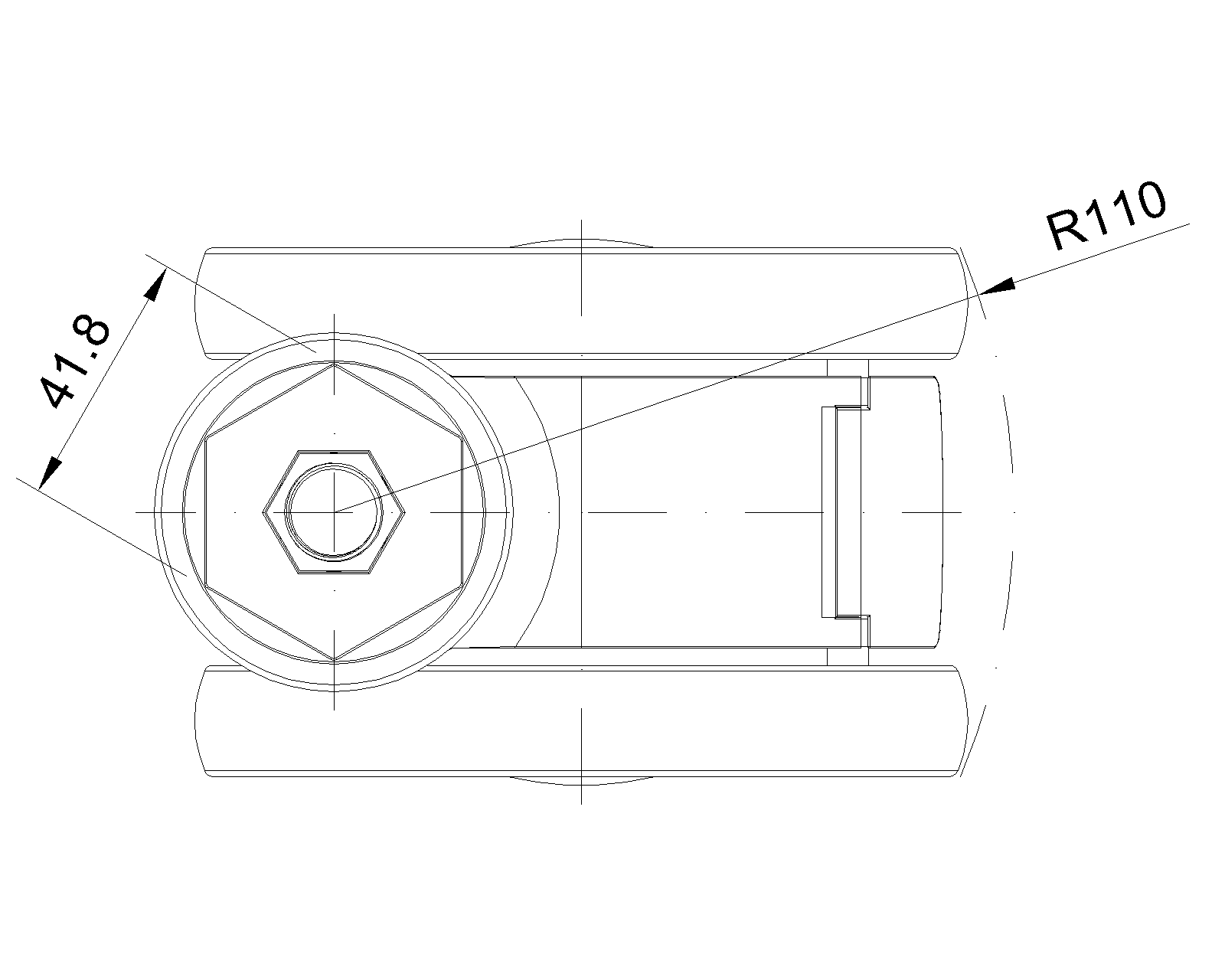

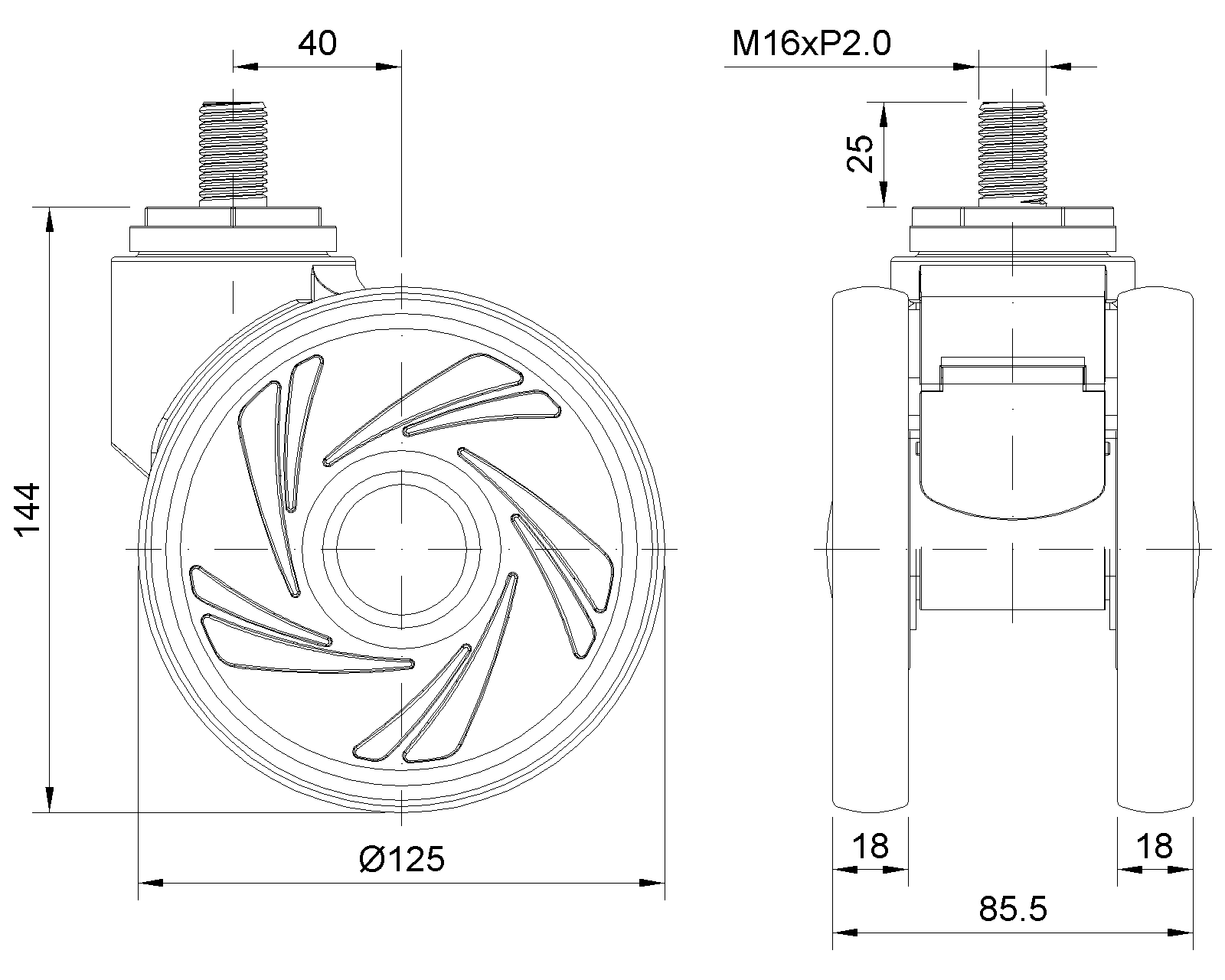

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 85.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M16
　　Threaded Length 25mm
　　Offset 40mm　
　　Swivel Interference 220mm　
　　Overall Height 144mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.67kgs　
　　Standard ISO22883
　　
　　
