    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (white dark gray) Wheel Diameter x Wheel Width 75x 14mm
　　EAN
　　　　　 KS-11460500458273
　　　　　 　　　

Equipped with directional brakes, pin-fitted Stamping Fork—Ø28x30L
Electroplated surface, pin-fit Mounting Type device
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) wheel rim
White/dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

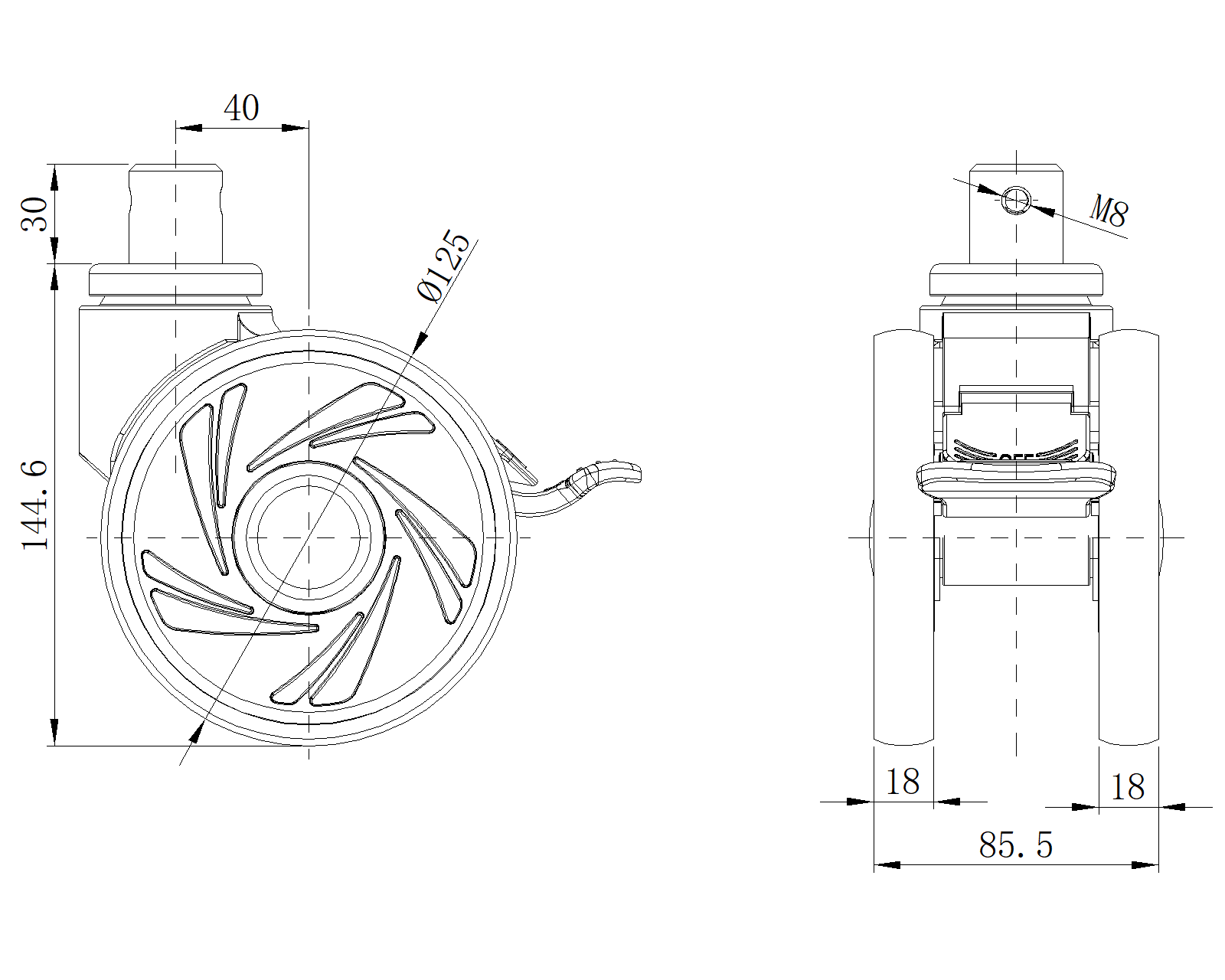

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 85mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 28mm　
　　Stem Length 30mm　
　　Offset 40mm　
　　Swivel Interference 282mm　
　　Overall Height 144.6mm　

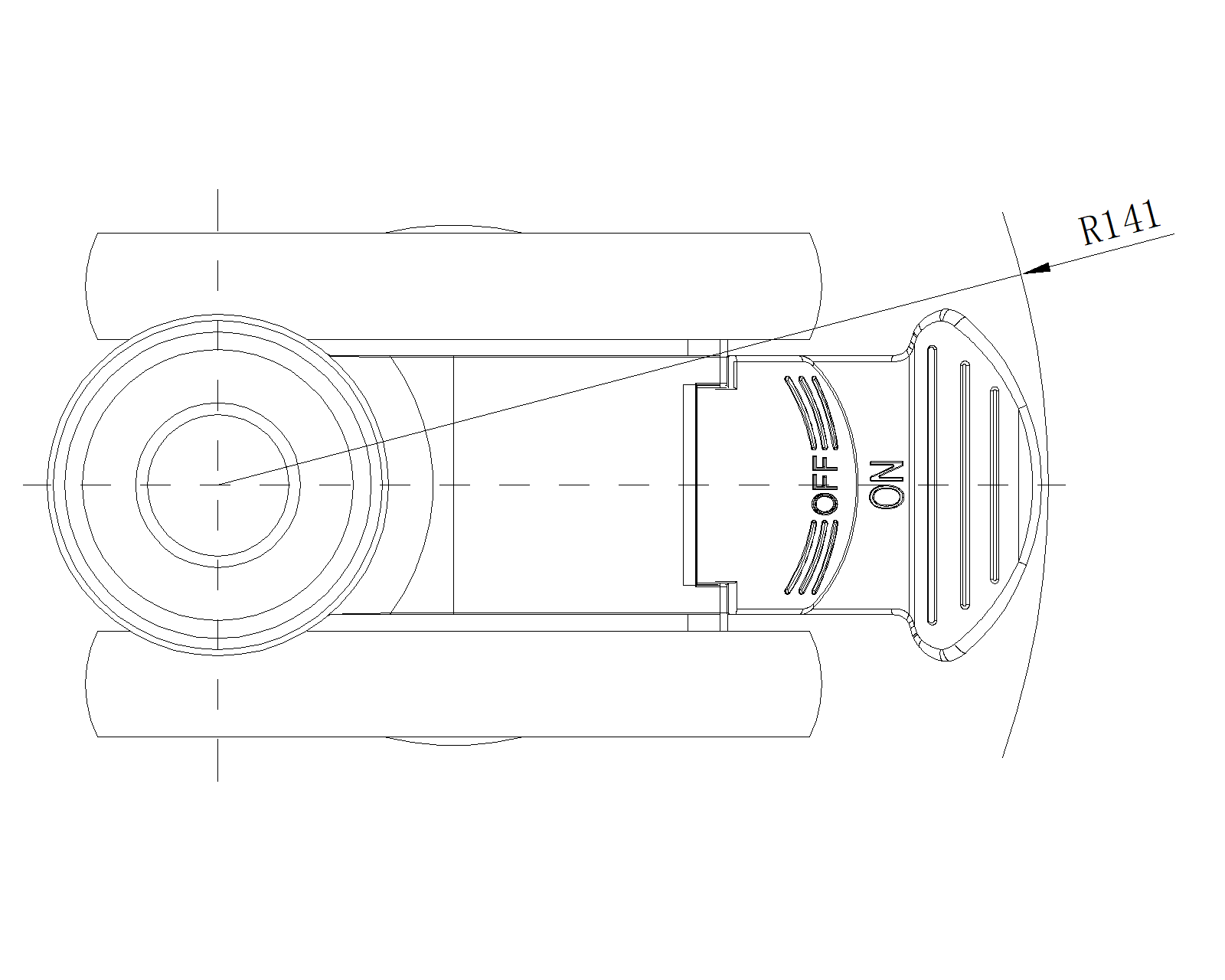

　　Swivel Radius 141mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Directional Lock
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.90kgs　
　　Standard ISO22881
　　
　　
