◄ Back ⍗ Product Data Sheet (Metric) ⍗ Product Data Sheet (Imperial) ⍗ 3D image files

	1146 46 Ascendant Series Caster Series(All Plastic)
	Double-Ball Full-Effect Wheel (Window Grey-Dark Gray) Wheel Diameter × Wheel Width 125 × 18mm
	EAN
	KS-11460500455473

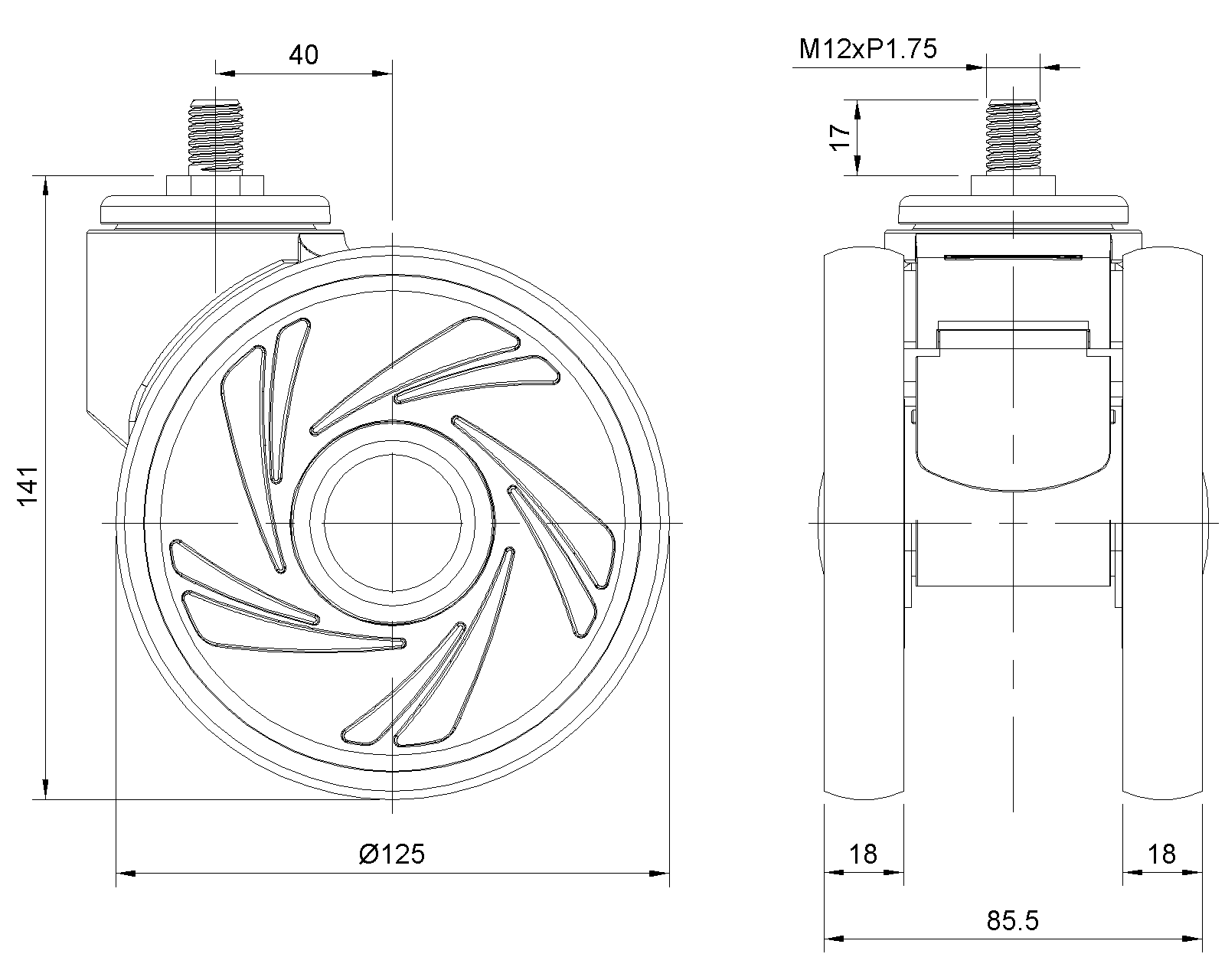

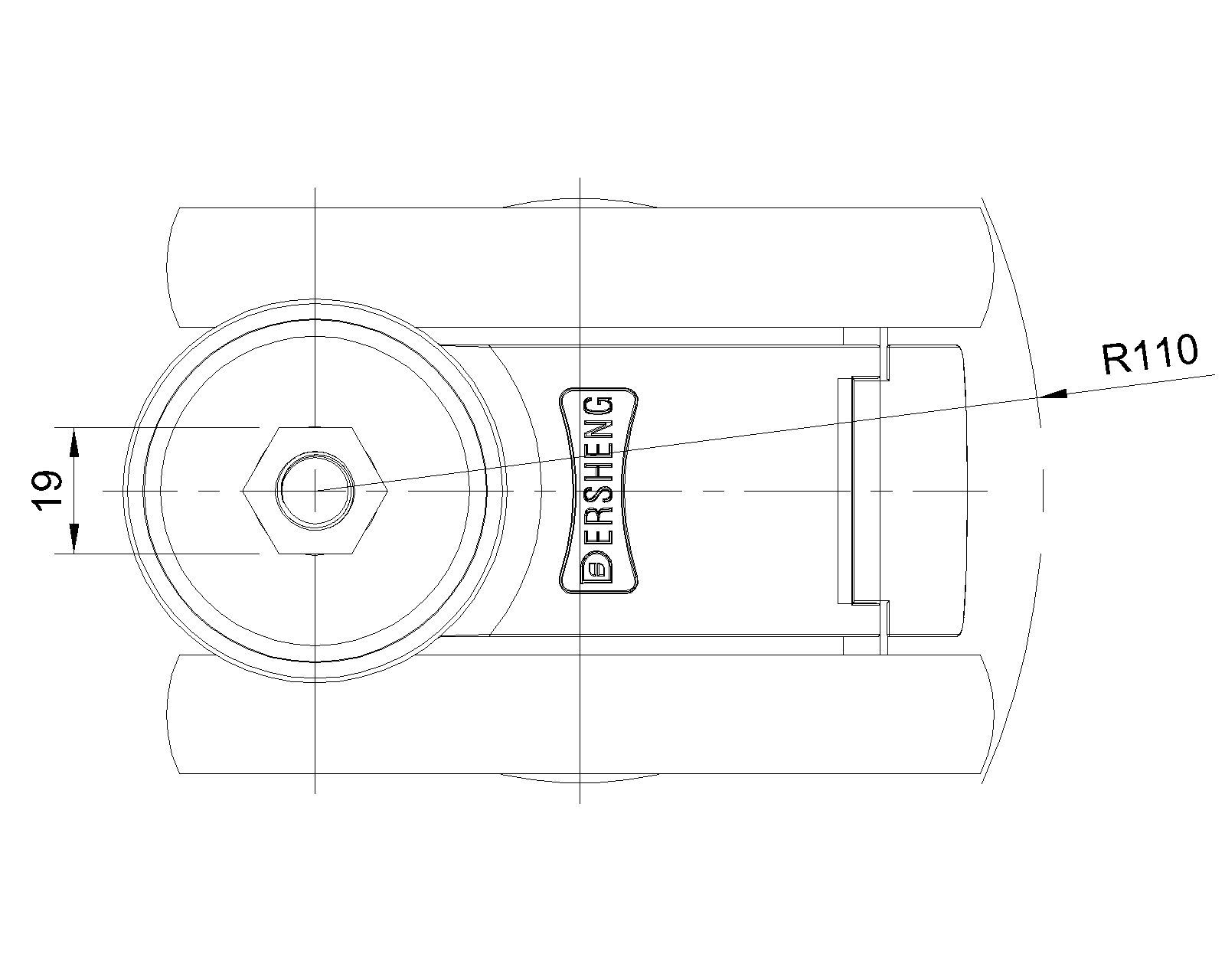

	Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 125mm　　　Wheel Width 85.5mm
	Wheel Bearing Wheels With Ball Bearings 　　Threaded Stem M12 　　Threaded Length 17mm 　　Offset 40mm　　　Swivel Interference 220mm　　　Overall Height 141mm　　　Swivel Radius 110mm　　　Hardness Of Tread 72±5° Shore A　　　Load Capacity (Dynamic) 110kgs	Rolling Resistance　　　 ● ● ● ● ● 　　Operating Noise　　　　 ● ● ● ● ● 　　Floor Surface Preservation ● ● ● ● ●
	Load Capacity (Static) 165kgs　　　Temperature -20°C to +60°C　　　Fork Type Swivel Caster
	Stainless N/A 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 0.63kgs　　　Standard ISO22881
