    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (window gray dark gray - large cover version) Wheel Diameter x Wheel Width 12
　　EAN
　　　　　 KS-11460500455863
　　　　　 　　　

Actual Casters, Threaded Stem M12x17
Window gray Casters made of polyamide reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and rotates smoothly
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

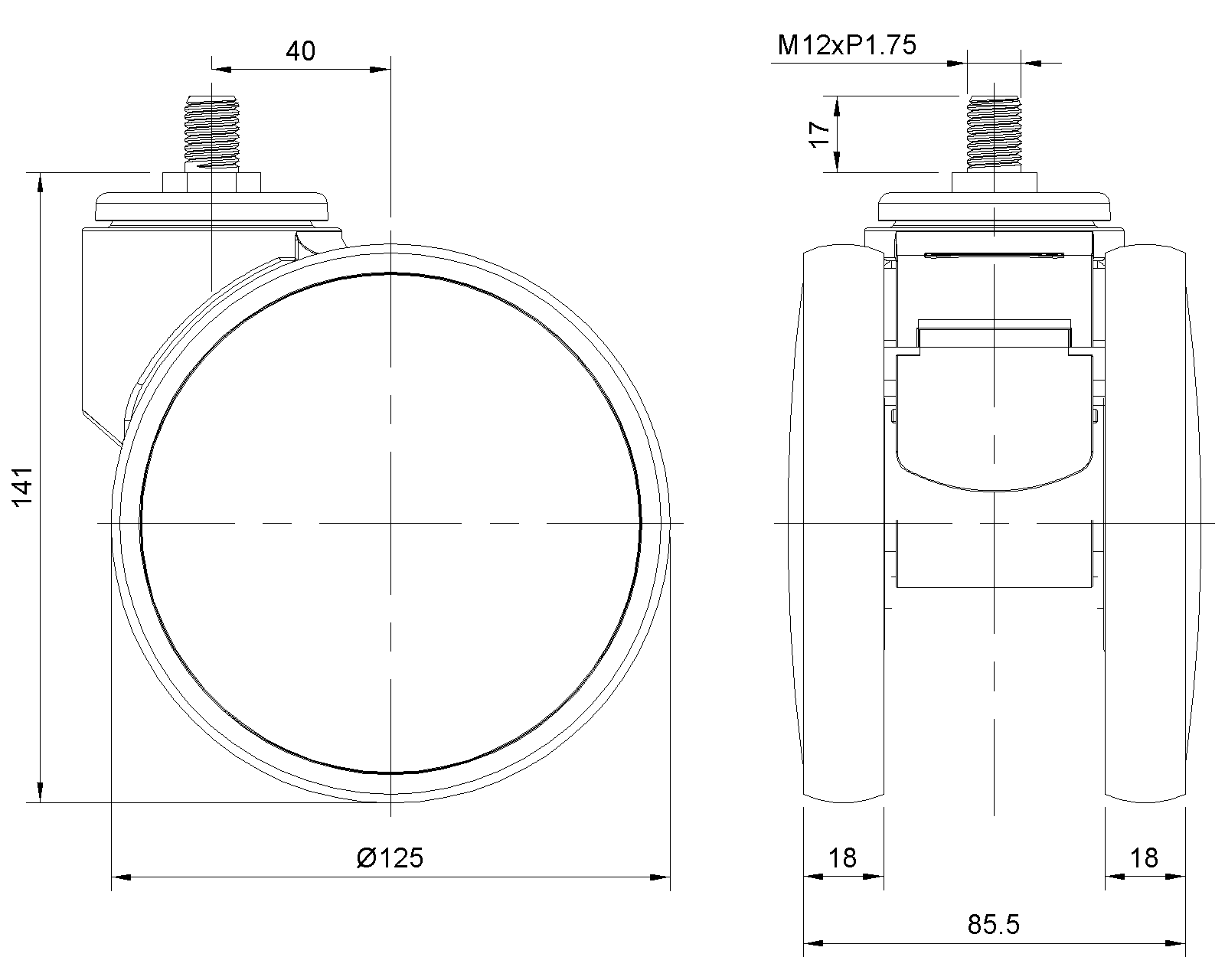

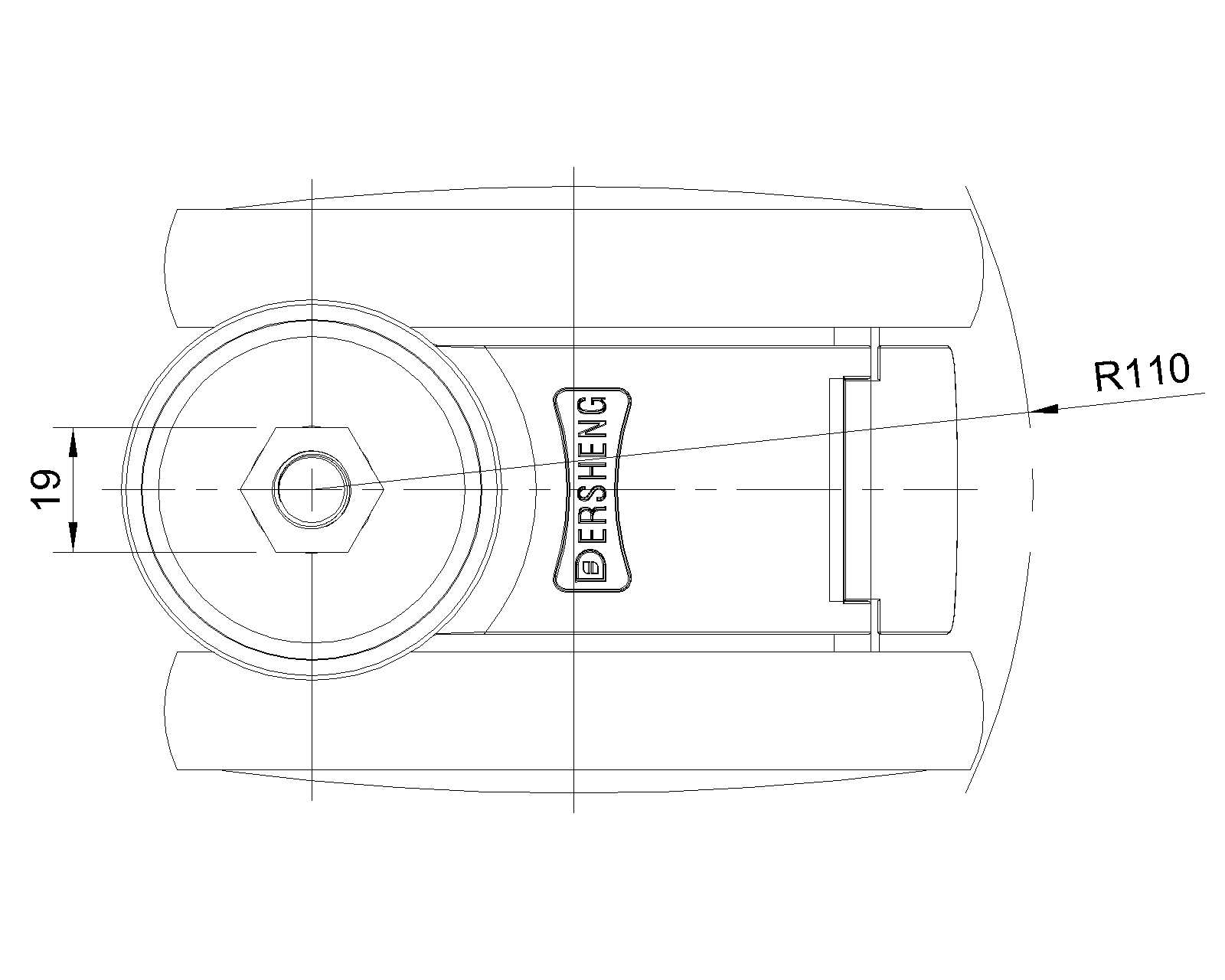

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 85.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12
　　Threaded Length 17mm
　　Offset 40mm　
　　Swivel Interference 220mm　
　　Overall Height 141mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.64kgs　
　　Standard ISO22883
　　
　　
