    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (white dark gray - large cover version) Wheel Diameter x Wheel Width 125 x 18
　　EAN
　　　　　 KS-11460500456843
　　　　　 　　　
Long Total Brake Casters, Threaded Stem M16x30
White Casters with polyamide reinforcement
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and highly maneuverable
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings, large Dust Cap from Mairui
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

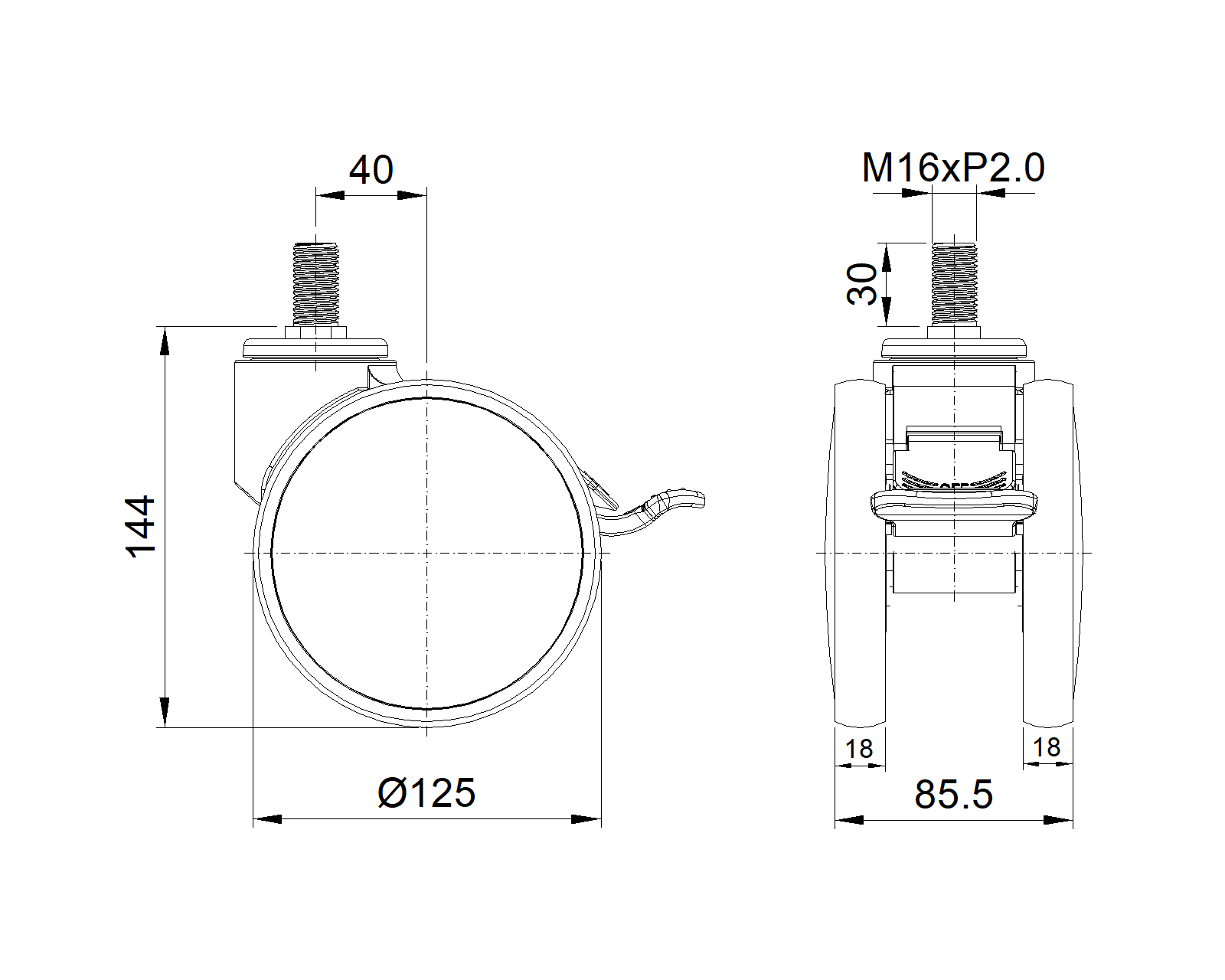

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 85.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M16
　　Threaded Length 30mm
　　Offset 40mm　
　　Swivel Interference 282mm　
　　Overall Height 144mm　

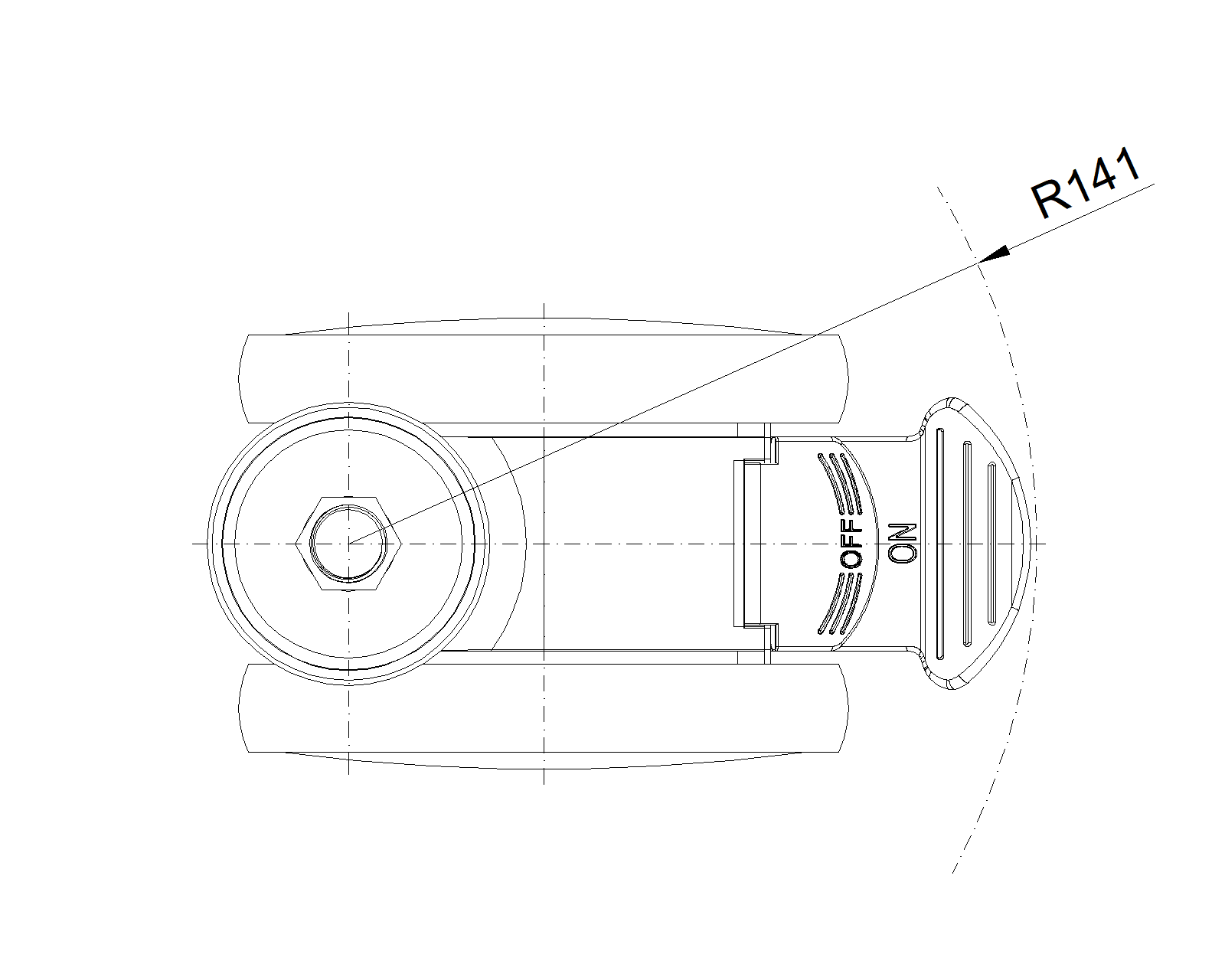

　　Swivel Radius 141mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.76kgs　
　　Standard ISO22881
　　
　　
