Window gray Caster Fork made of polypropylene reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and rotates smoothly
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
Wheel Center: Made of high-quality impact-resistant polypropylene

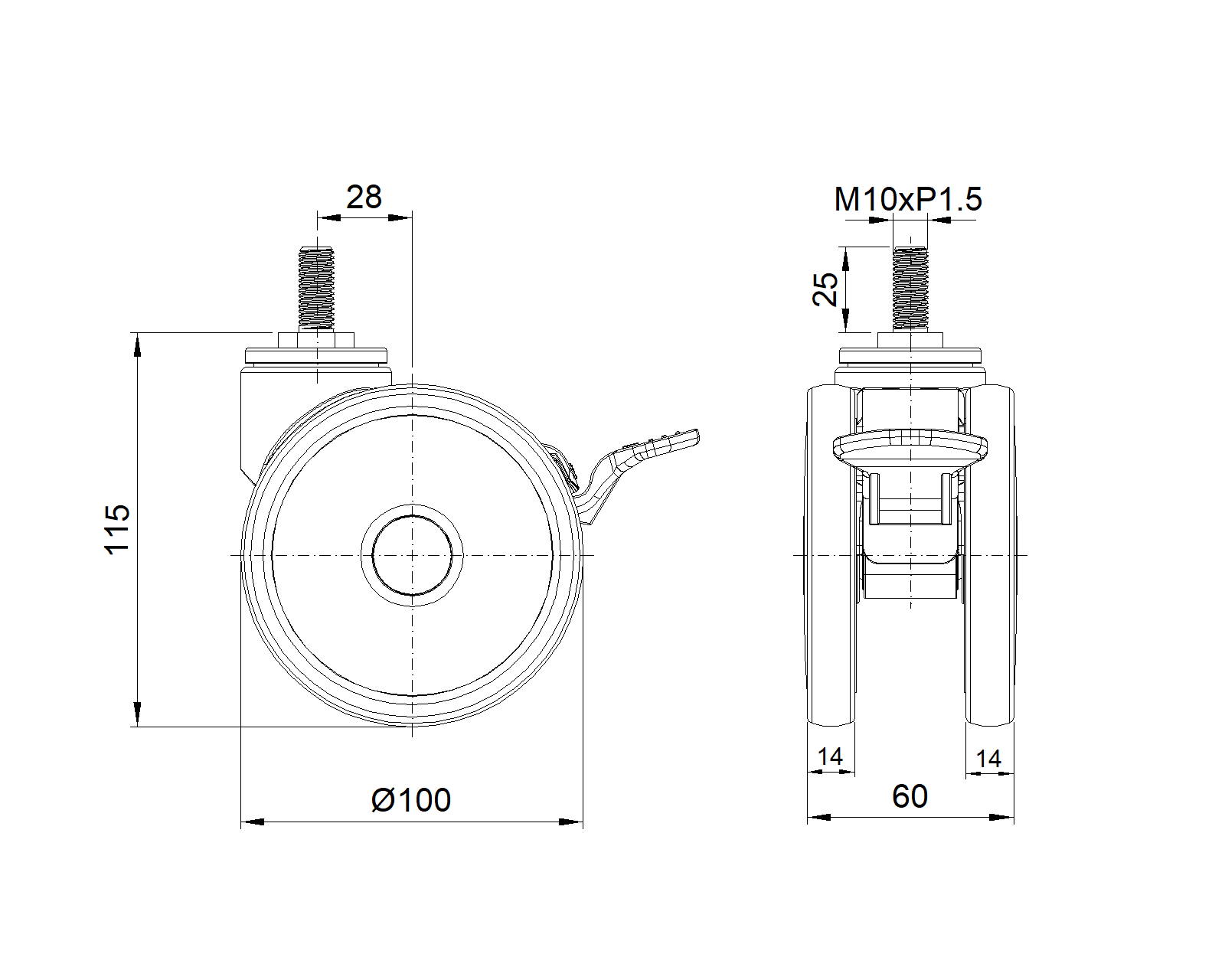

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
60mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
M10
Threaded Length
25mm
Offset
28mm
Swivel Interference
225mm
Overall Height
115mm

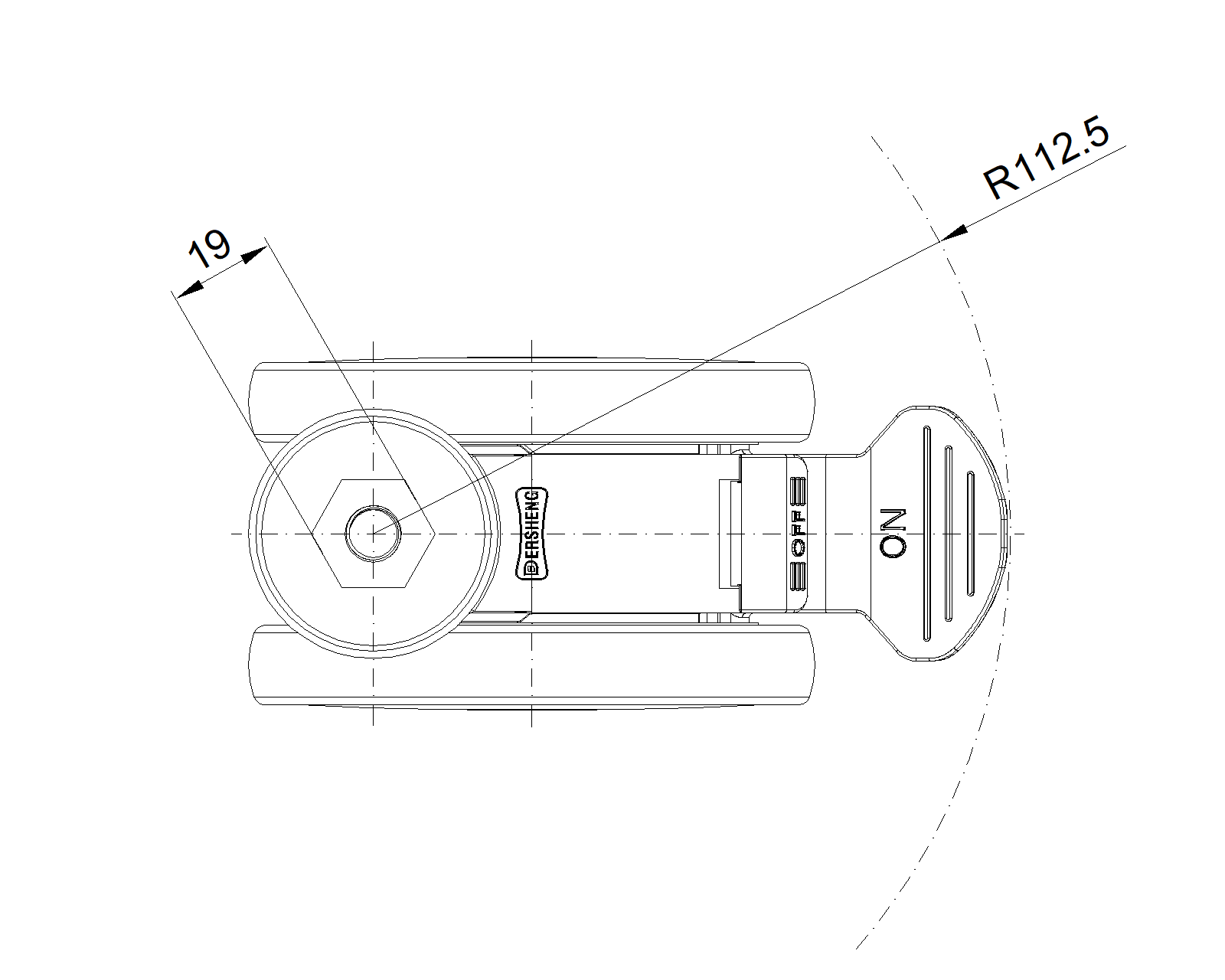

Swivel Radius
112.5mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
90kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
135kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.55kgs
Standard
ISO22881
