    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel(all dark gray) Wheel Diameter x Wheel Width 75 x 14mm
　　EAN
　　　　　 KS-11460300456063
　　　　　 　　　

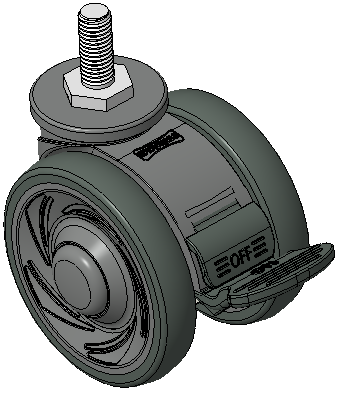

Short double-brake Caster, M10x25 thread Dark gray Fork with High-quality Impact Resistance Polypropylene reinforcement Rustproof, Corrosion resistant, Attractive appearance, Economical, and Reinforced High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) tread Dark gray, Bearing—Ball Bearing
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

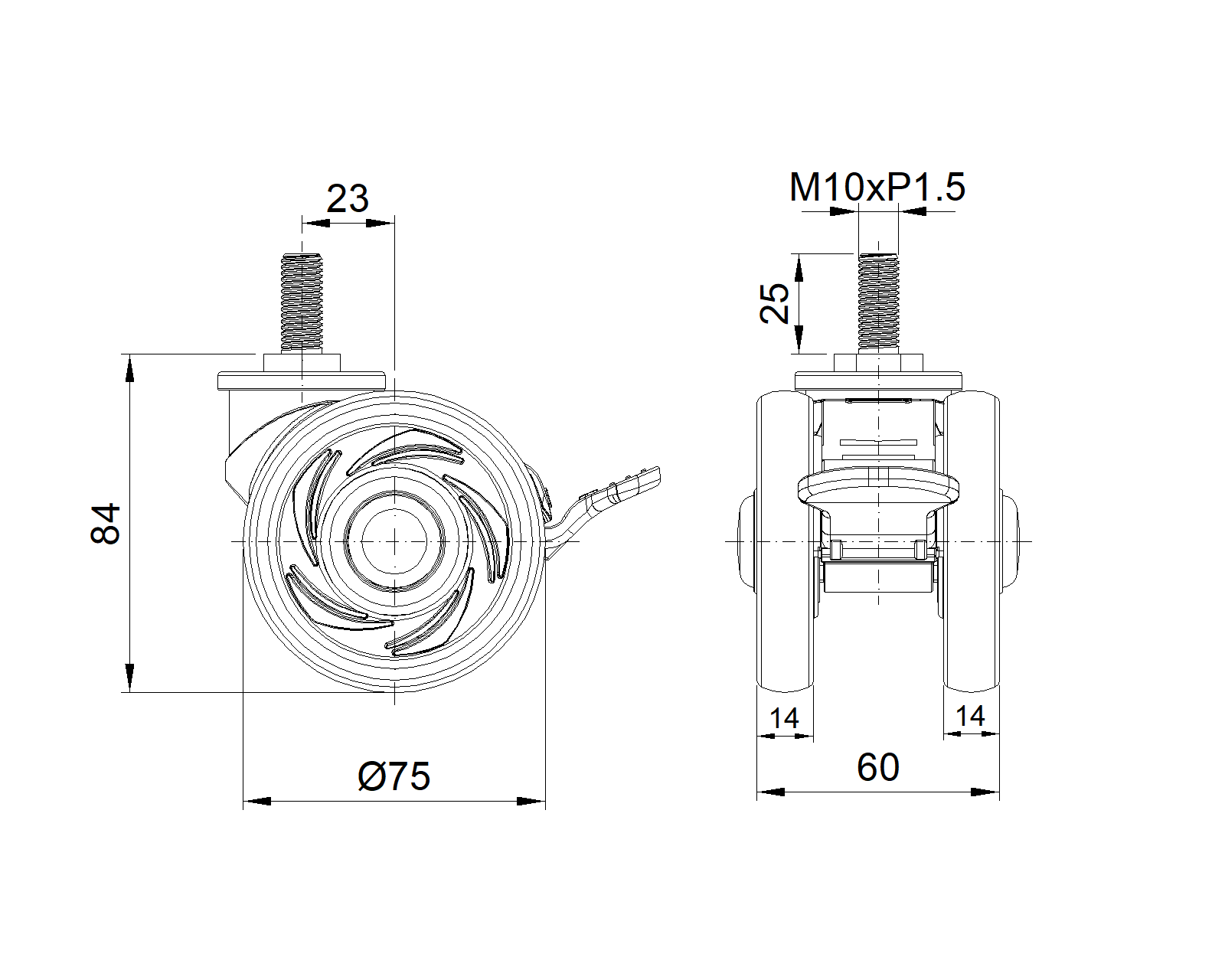

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 60mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M10x25
　　Threaded Length 25mm
　　Offset 23mm　
　　Swivel Interference 179mm　
　　Overall Height 84mm　

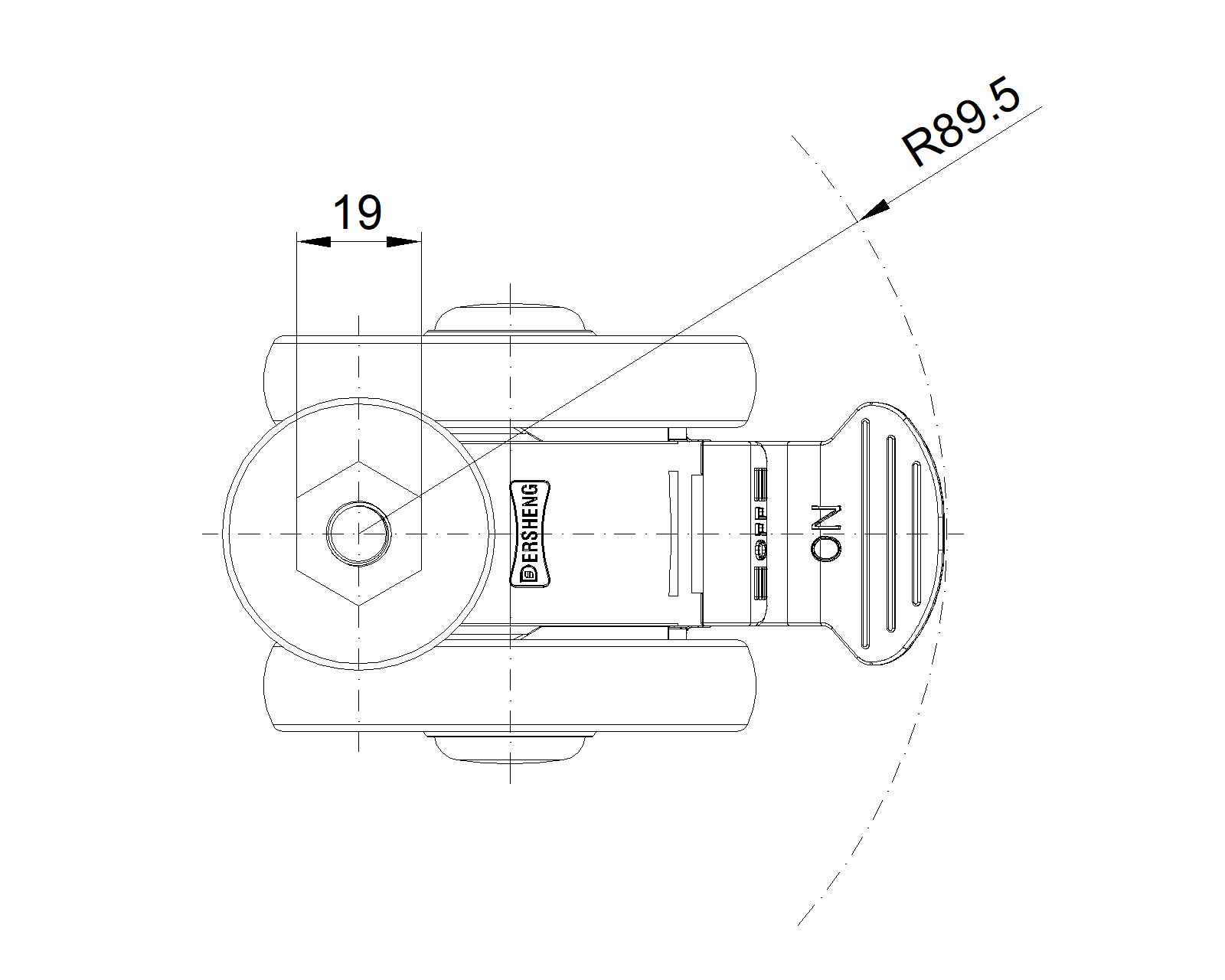

　　Swivel Radius 89.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.31kgs　
　　Standard ISO22881
　　
　　
