    Product Data Sheet
1146 46 Ascendant Series Caster Series(All Plastic)
　　Resolute Rubber wheel (all black) Wheel Diameter x Wheel Width 75 x 14mm
　　EAN
　　　　　 KS-11460300454123
　　　　　 　　　
Short Total Brake Casters, 42.5x42.5mm angled perforated Top Plate
Black Casters made of polypropylene reinforced material
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Black, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

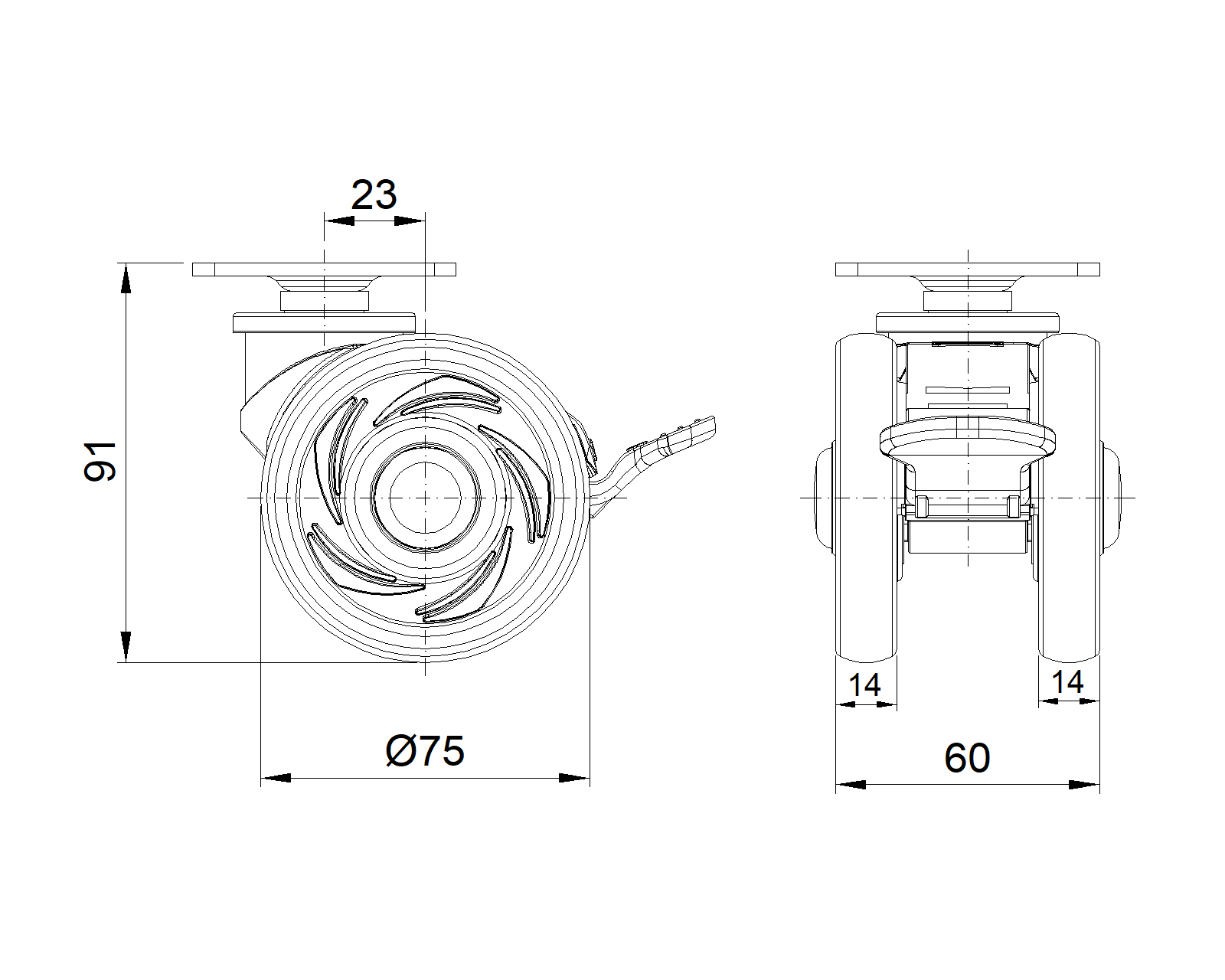

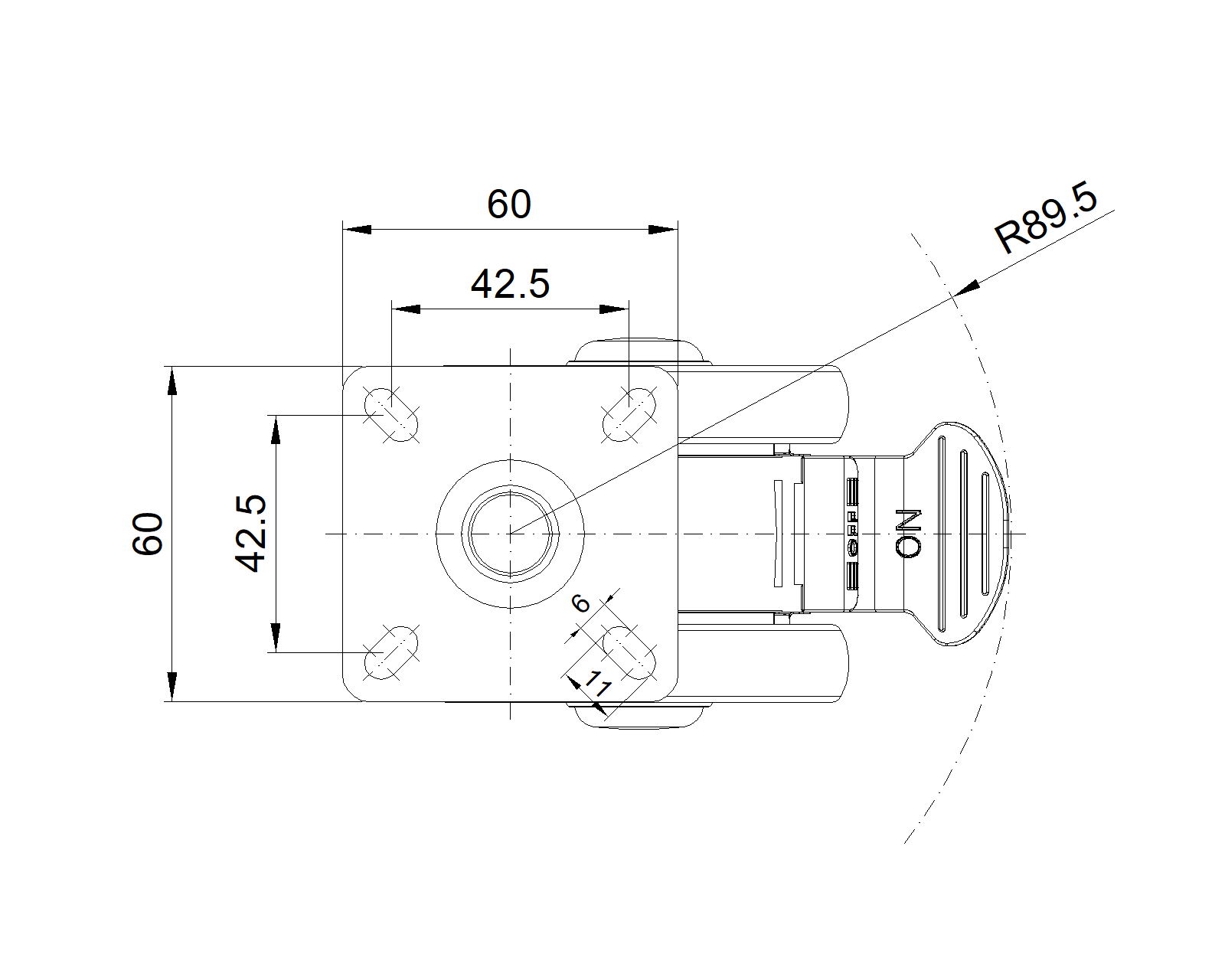

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 60mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 60 x 60mm　
　　Bolt Hole Spacing 42.5x42.5mm　
　　Plate Hole 11 x 6mm　
　　Offset 23mm　
　　Swivel Interference 179mm　
　　Overall Height 91mm　
　　Swivel Radius 89.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.38kgs　
　　Standard ISO22881
　　
　　
