    Product Data Sheet
1147 Universal (Single) Spring Wheel Series
　　NBR (milling black) Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 KS-11470600041211
　　　　　 　　　
Rigid, Spring-loaded Caster with Welded Caster Fork, blue-painted finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread, Cast Iron black
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 2213mm　
　　Overall Height 198mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic)


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static)
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.02kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
Related　　Products　　
1147 Universal (Single) Spring Wheel Series
NBR (milling black) Wheel Diameter x Wheel Width 150 x 40mm
KS-11470600041211
150 mm Kgs 198 mm
Rigid, Spring-loaded Caster with Welded Caster Fork, blue-painted finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread, Cast Iron black
Bearings—Ball Bearings
1147 Universal (Single) Spring Wheel Series
NBR (milling black) Wheel Diameter x Wheel Width 150 x 40mm

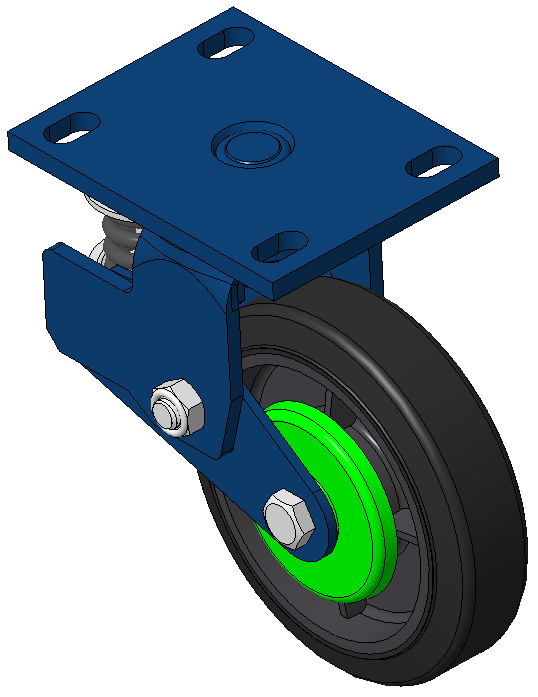

KS-11470600042211
150 mm 300 Kgs 198 mm

Swivel Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron black, Bearing – Ball Bearings
1147 Universal (Single) Spring Wheel Series
NBR (milling black) Wheel Diameter x Wheel Width 150 x 40mm

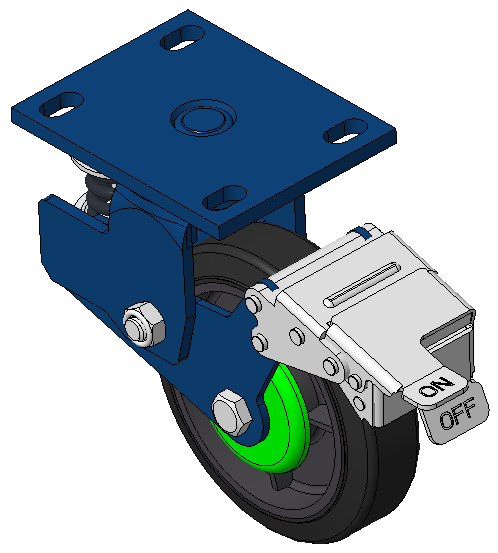

KS-11470600044211
