    Product Data Sheet
1147 Universal (Single) Spring Wheel Series
　　QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
　　EAN
　　　　　 KS-11470600531211
　　　　　 　　　
Rigid Spring-loaded Caster with Welded Caster Fork Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron core with High Quality Polyurethane Wheel Tread Cast Iron brown, Bearing – Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Overall Height 198mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 550kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 825kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.02kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
Related　　Products　　
1147 Universal (Single) Spring Wheel Series
QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
KS-11470600531211
150 mm Kgs 198 mm
Rigid, Spring-loaded Caster with Welded Caster Fork, blue-painted finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
1147 Universal (Single) Spring Wheel Series
QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
KS-11470600532211
150 mm 550 Kgs 198 mm

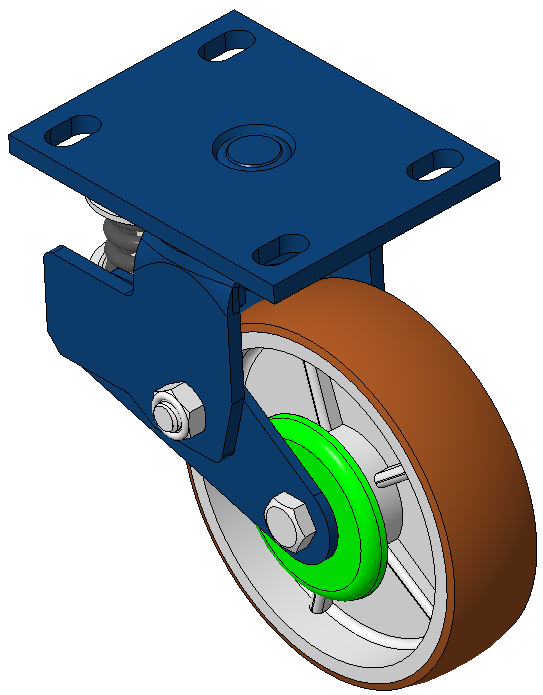

Swivel Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron brown, Bearing – Ball Bearings
1147 Universal (Single) Spring Wheel Series
QPU (Brown round) Wheel Diameter × Wheel Width 150 x 42mm
KS-11470600534211
150 mm Kgs 198 mm

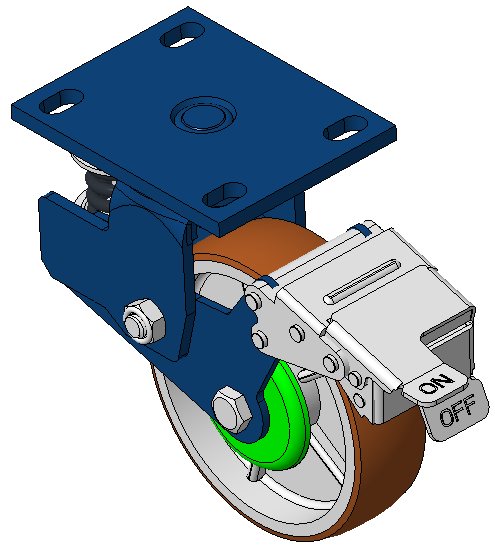

Spring-loaded Caster with front brake, Welded Caster Fork Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron core, High Quality Polyurethane Wheel Tread Cast Iron brown, Bearing – Ball Bearings
