    Product Data Sheet
1147 Universal (Single) Spring Wheel Series
　　PU (Red round) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11470500334211
　　　　　 　　　
Spring-loaded Caster with front brake, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron core, High Quality Polyurethane Wheel Tread Red Cast Iron finish, Bearing—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

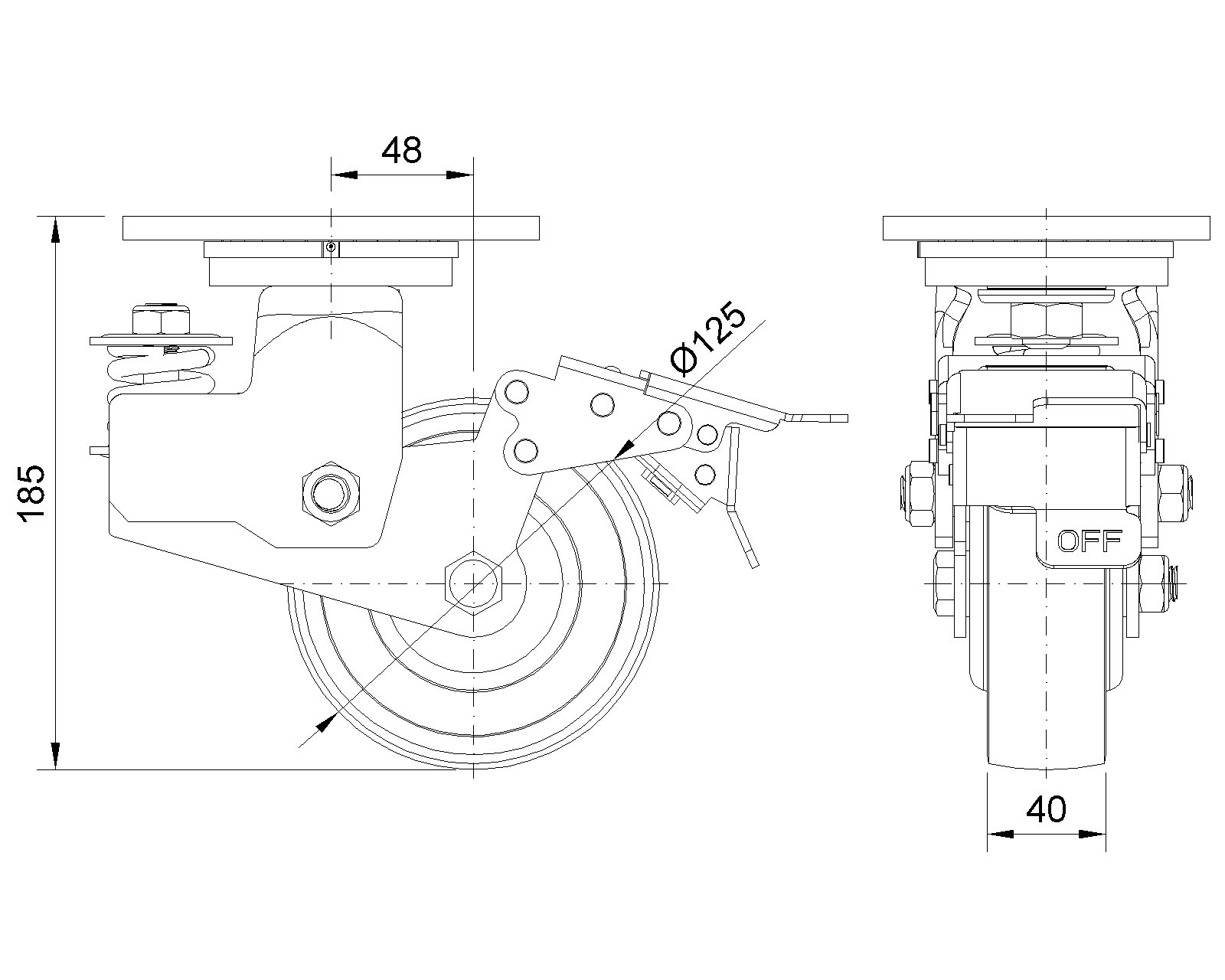

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

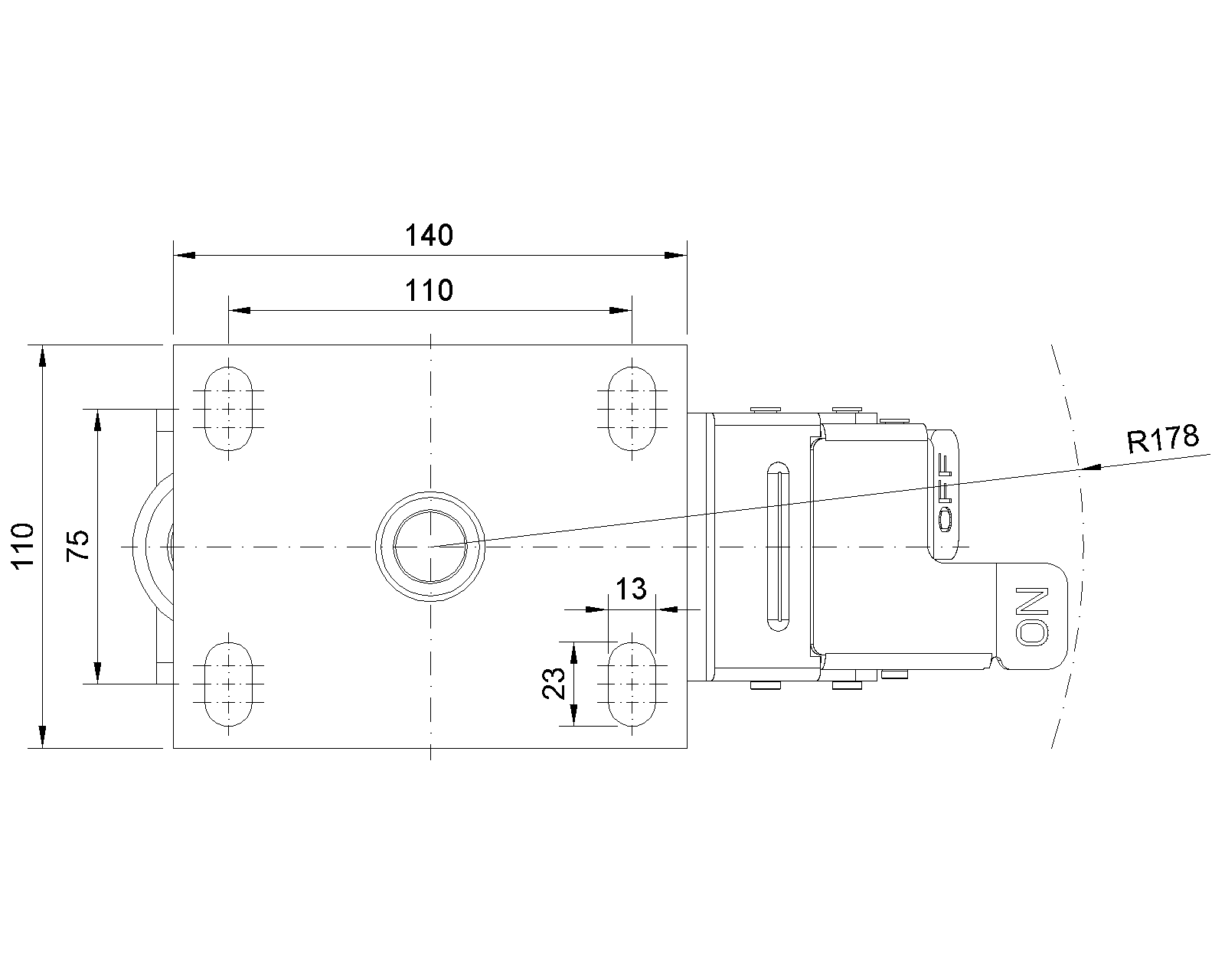

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 23 x 13mm　
　　Offset 48mm　
　　Swivel Interference 356mm　
　　Overall Height 185mm　
　　Swivel Radius 178mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 340kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 510kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.92kgs　
　　Standard ISO22883
　　
　　
