    Product Information Sheet
1148-1 48 Series Central Locking Caster Series (All Plastic)
　　TPR wheel (white dark gray) Wheel Diameter x Wheel Width 125 x 18mm
　　EAN
　　　　　 KS-11480501268033
　　　　　 　　　

Long control lever, Hexagonal hole cam control, center-locked Total Brake or neutral wheel
White Fork, simple and Attractive appearance, Smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

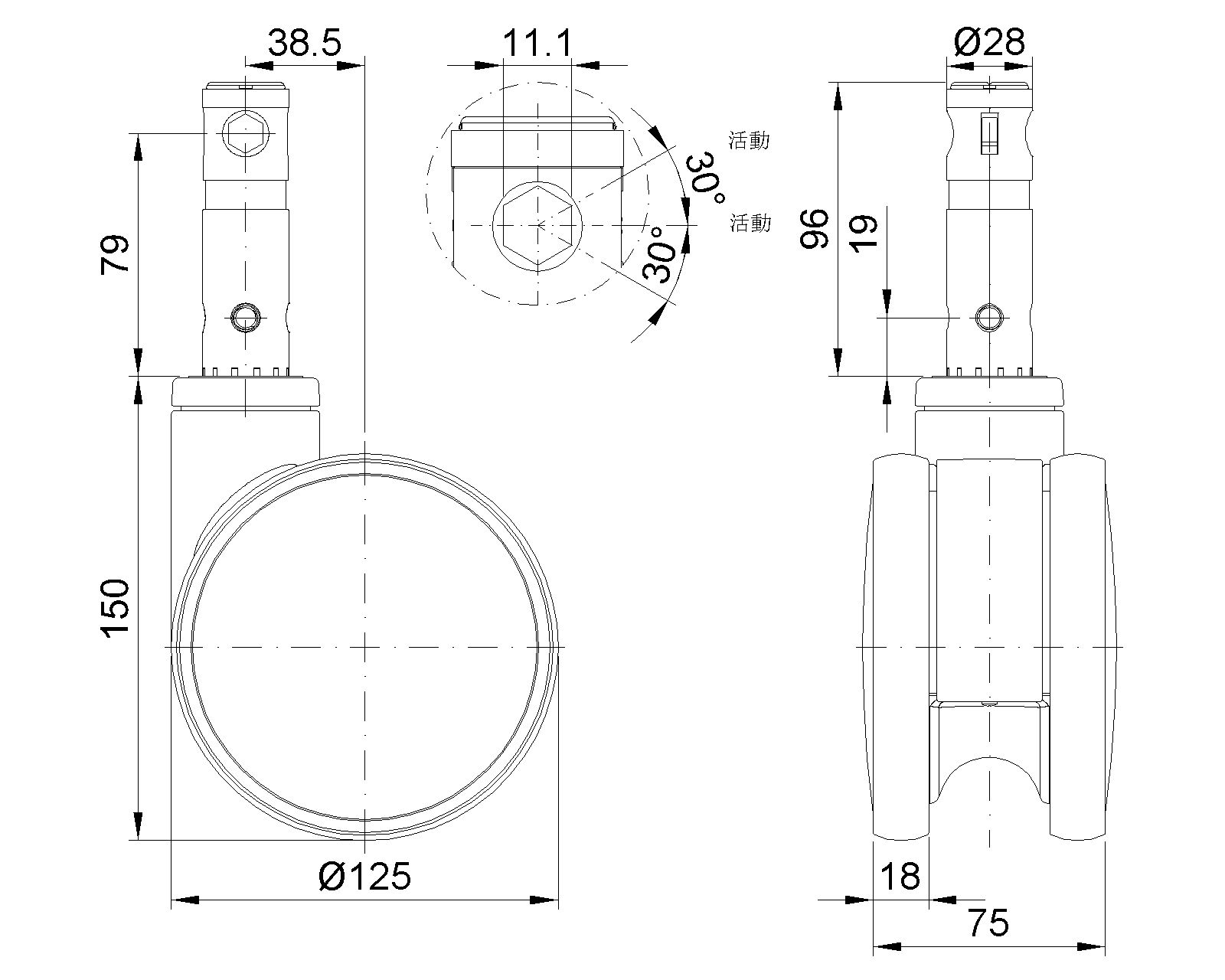

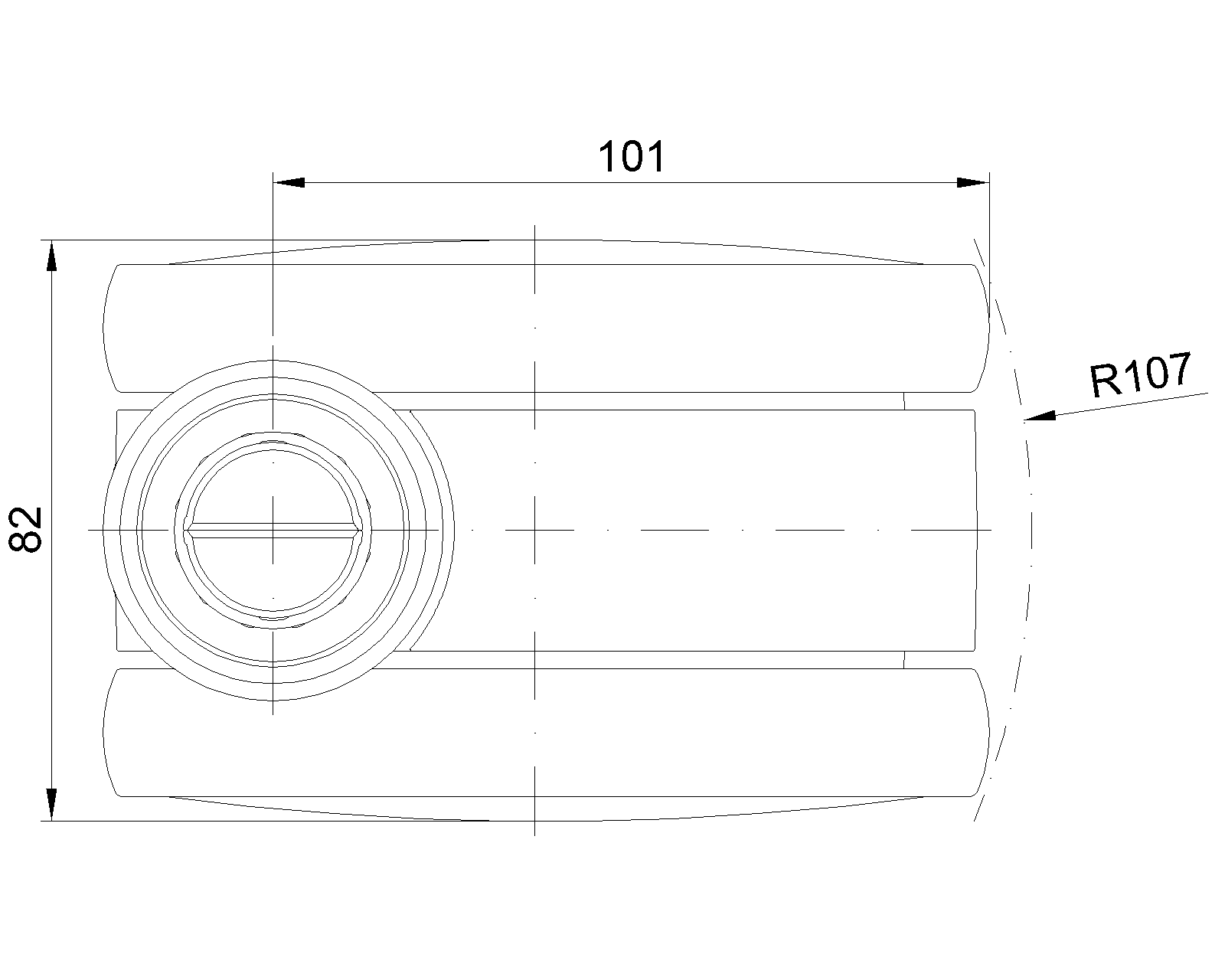

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 75mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 28mm　
　　Stem Length 96mm　
　　Offset 38.5mm　
　　Swivel Interference 214mm　
　　Overall Height 150mm　
　　Swivel Radius 107mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.98kgs　
　　Standard ISO22883
　　
　　
