◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files

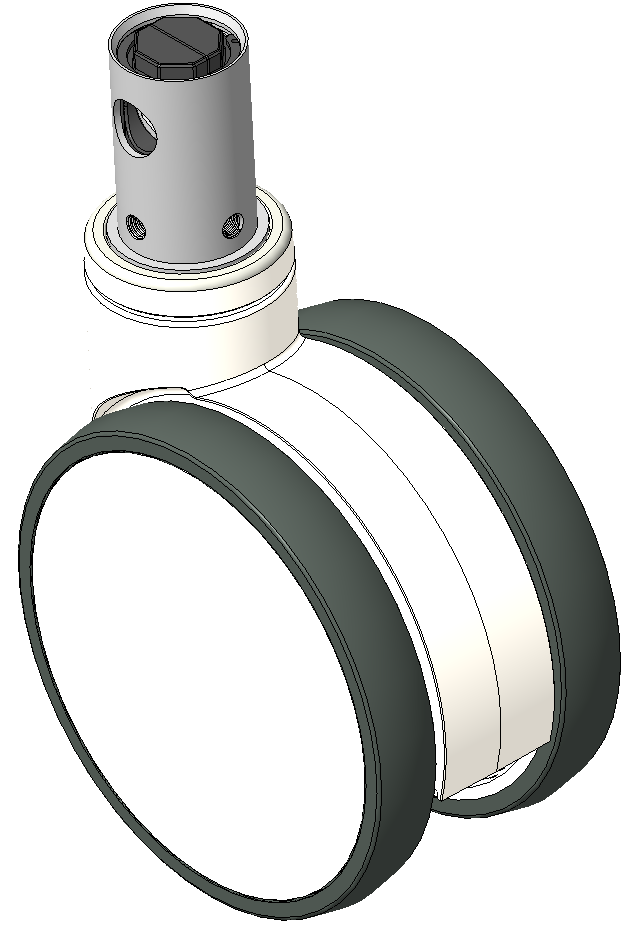

1148-1 48 Series Central Locking Caster Series (All Plastic)
　　Central Control Double-Ball Classic Full-Effect Wheel (White-Dark Gray) Wheel Diameter × Wheel Width
　　EAN
　　　　　 KS-11480501458313
　　　　　 　　　
　　
　　

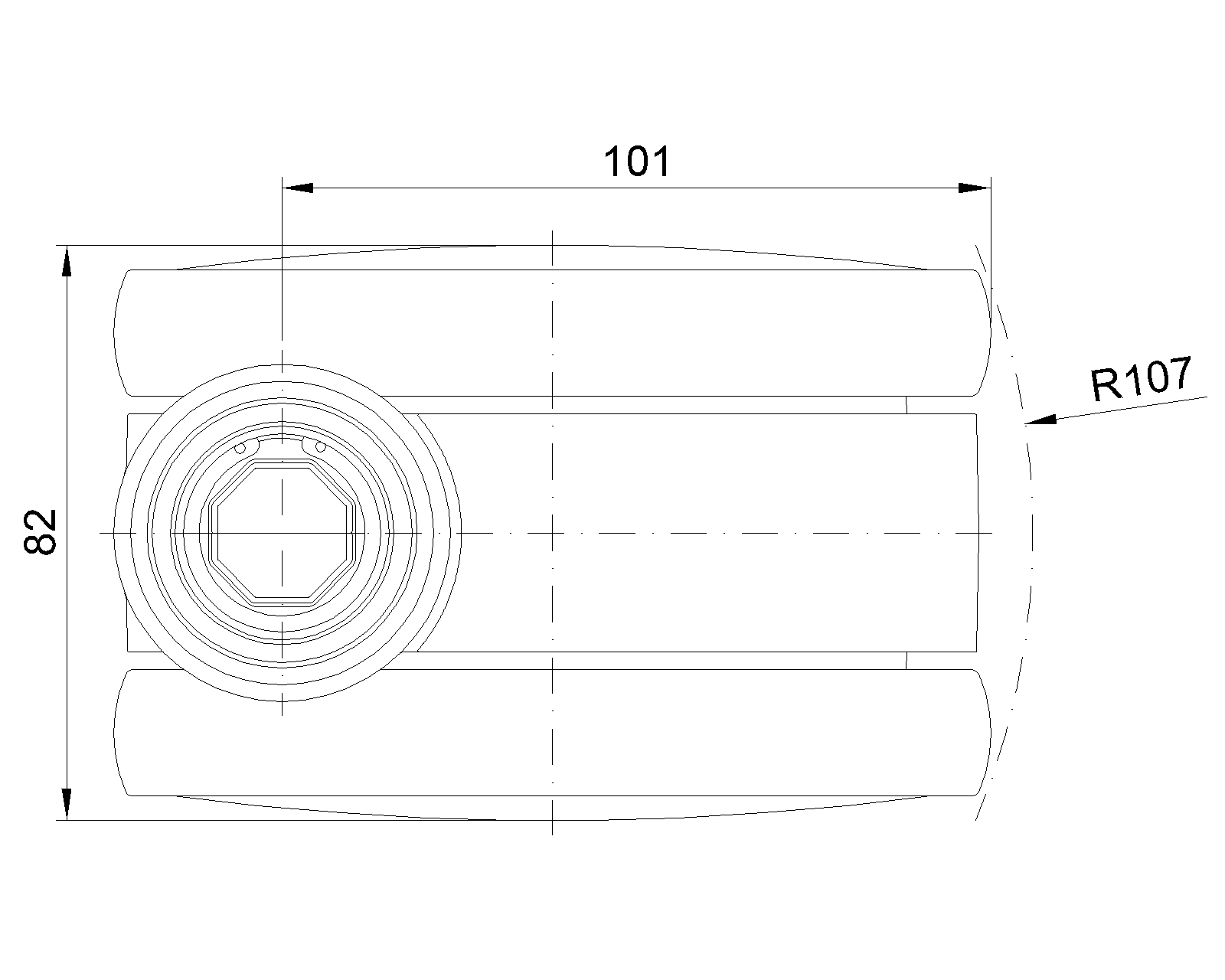

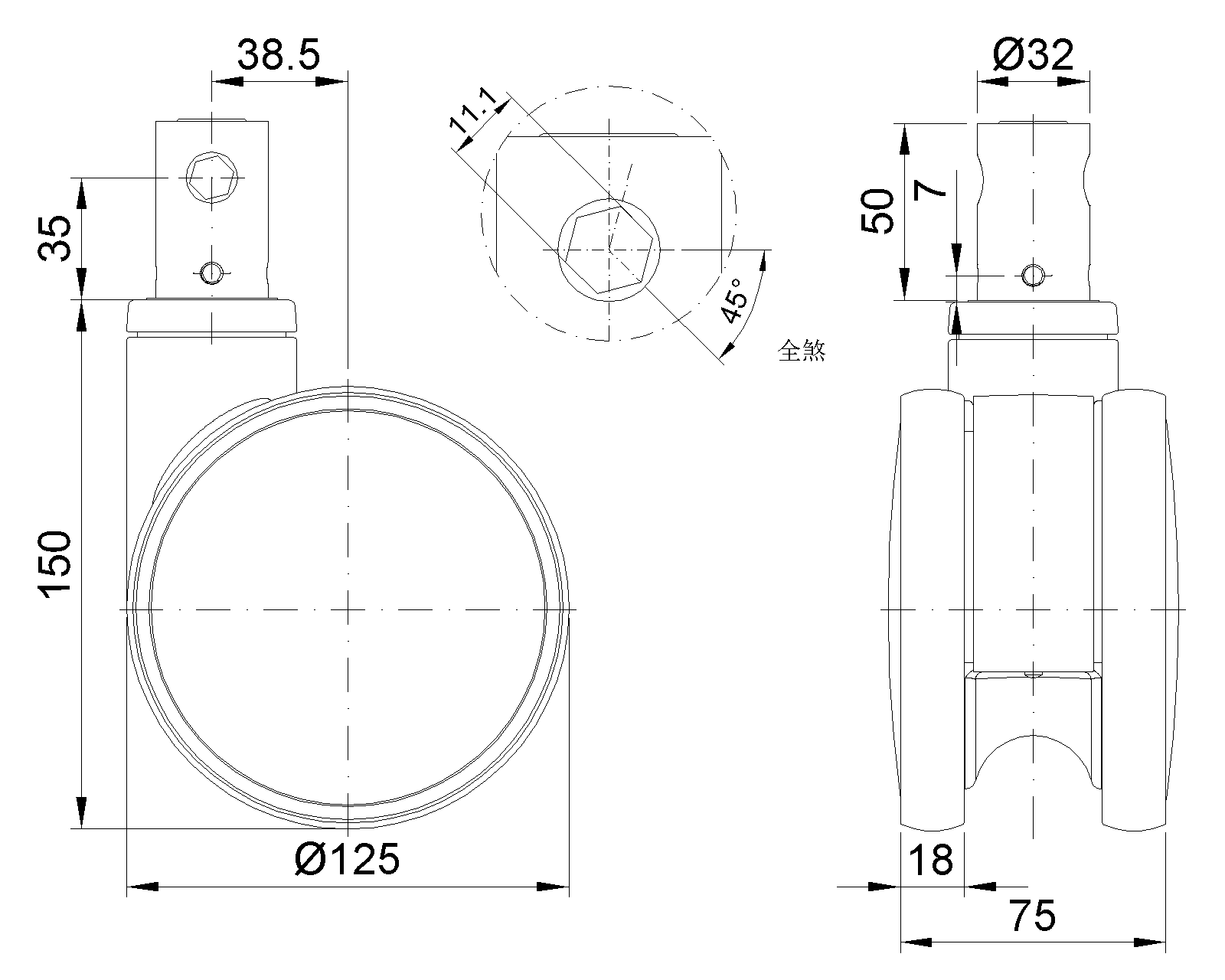

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 18mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 32mm　
　　Stem Length 50mm　
　　Offset 38.5mm　
　　Swivel Interference 214mm　
　　Overall Height 150mm　
　　Swivel Radius 107mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.94kgs　
　　Standard ISO22881
　　
　　
