    Product Information Sheet
1148 48 48 Series Central Locking Caster Series (All Plastic)
　　Resolute Rubber wheel (White dark gray) Wheel Diameter x Wheel Width 125 x 15mm
　　EAN
　　　　　 　　　
　　YJ-11480500458070 　　　
Central lockinging with hexagonal cam control on short lever, Total Brake Caster. Single Bolthole engagement. Stamping Fork.
Polyamide wheel Fork—white, hollow Mounting Type device.
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
White/dark gray, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

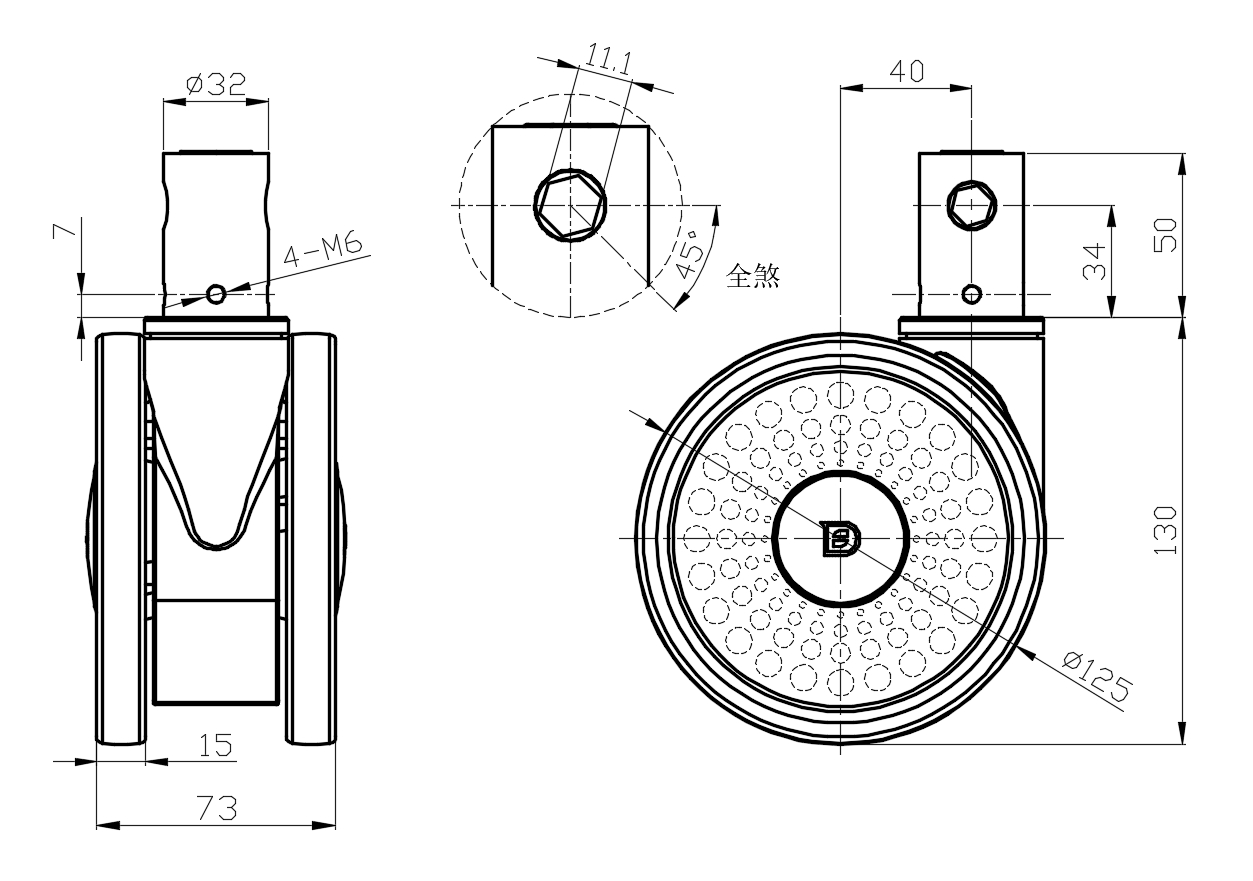

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 73mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 32mm　
　　Stem Length 50mm　
　　Offset 40mm　
　　Swivel Interference 216mm　
　　Overall Height 130mm　
　　Swivel Radius 108mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.06kgs　
　　Standard ISO22881
　　
　　
