◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files

    Product Data Sheet
1148 48 48 Series Central Locking Caster Series (All Plastic)
　　Resolute Rubber wheel (White dark gray) Wheel Diameter x Wheel Width 150 x 15mm
　　EAN
　　　　　 　　　
　　YJ-11480600458030 　　　

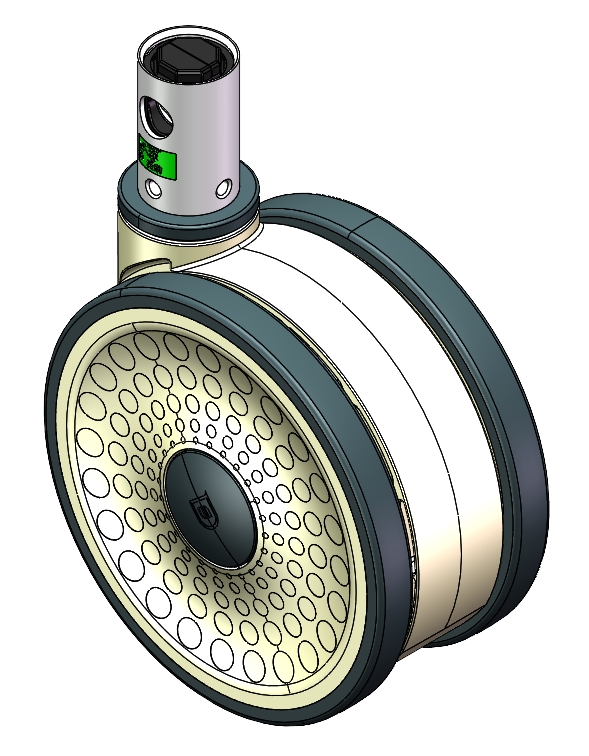

Castors with short lever Hexagonal hole, Cam center lock, full locking or fixed system. Single Bolthole Stamping Fork Wheel Fork made of polyamide - white, Mounting Type - Single Bolthole Wheel core made of impact-resistant polypropylene, Wheel Tread made ofHigh-Quality Thermoplastic Rubber (TPR) White dark grey, Bearing - Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 75mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 32mm　
　　Stem Length 50mm　
　　Offset 47.5mm　
　　Swivel Interference 254mm　
　　Overall Height 155mm　

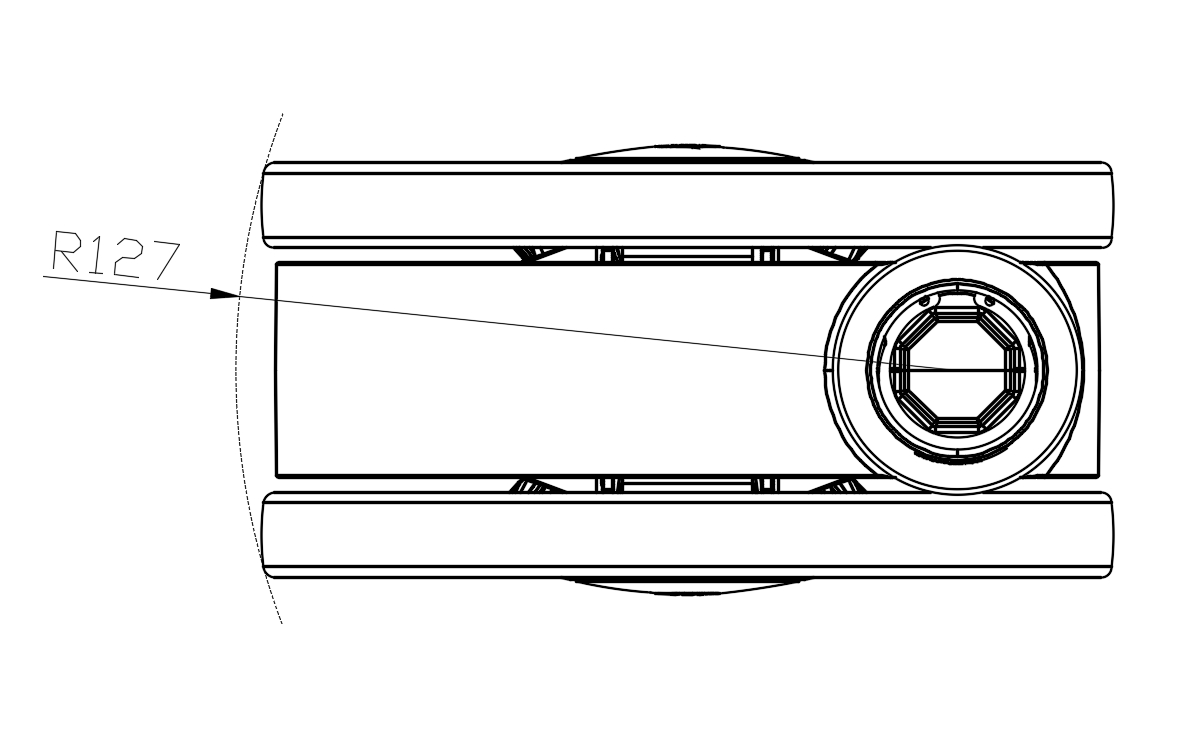

　　Swivel Radius 127mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.28kgs　
　　Standard ISO22881
　　
　　
