	1148 48 48 Series Central Locking Caster Series (All Plastic)
	Central Control Double-Ball Full-Effect Wheel (White-Dark Gray) Wheel Diameter × Wheel Width 150 × 1
	EAN
	YJ-11480600458020

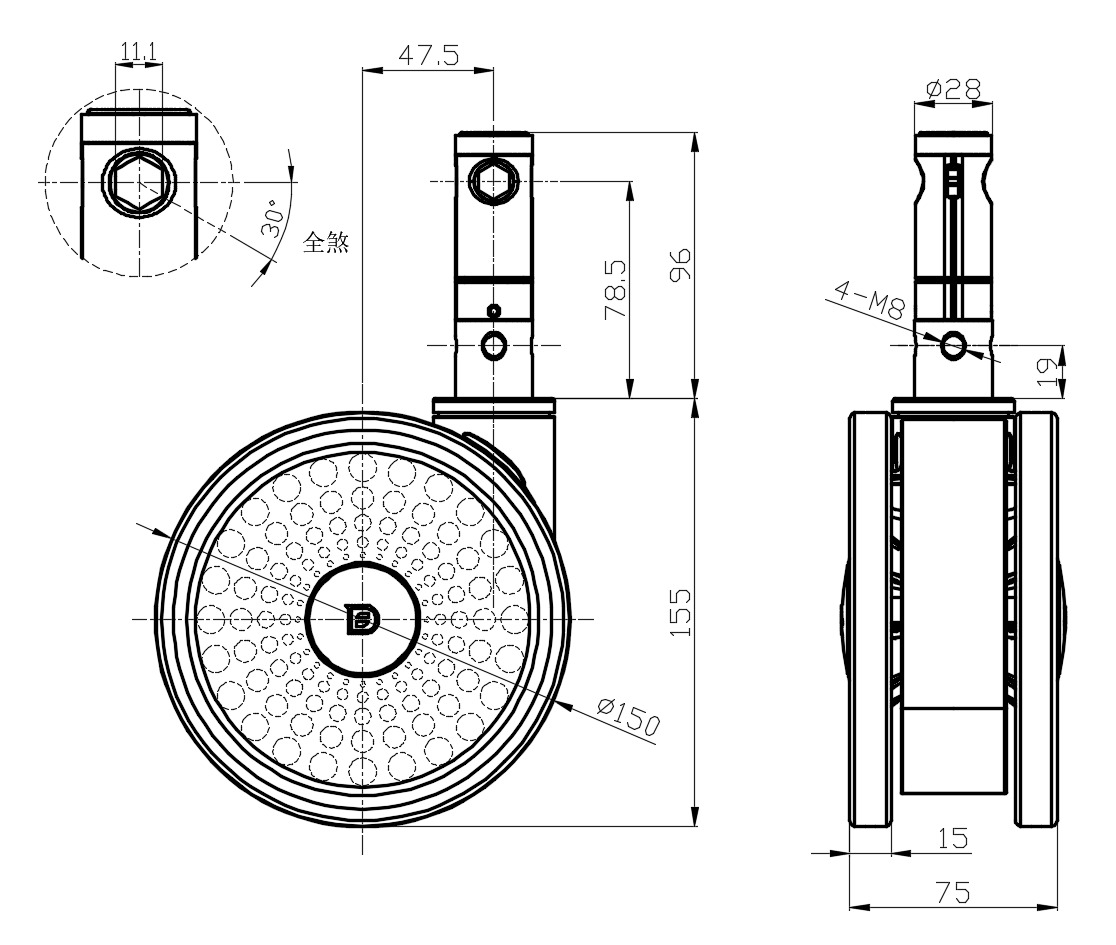

	Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 150mm　　　Wheel Width 75mm

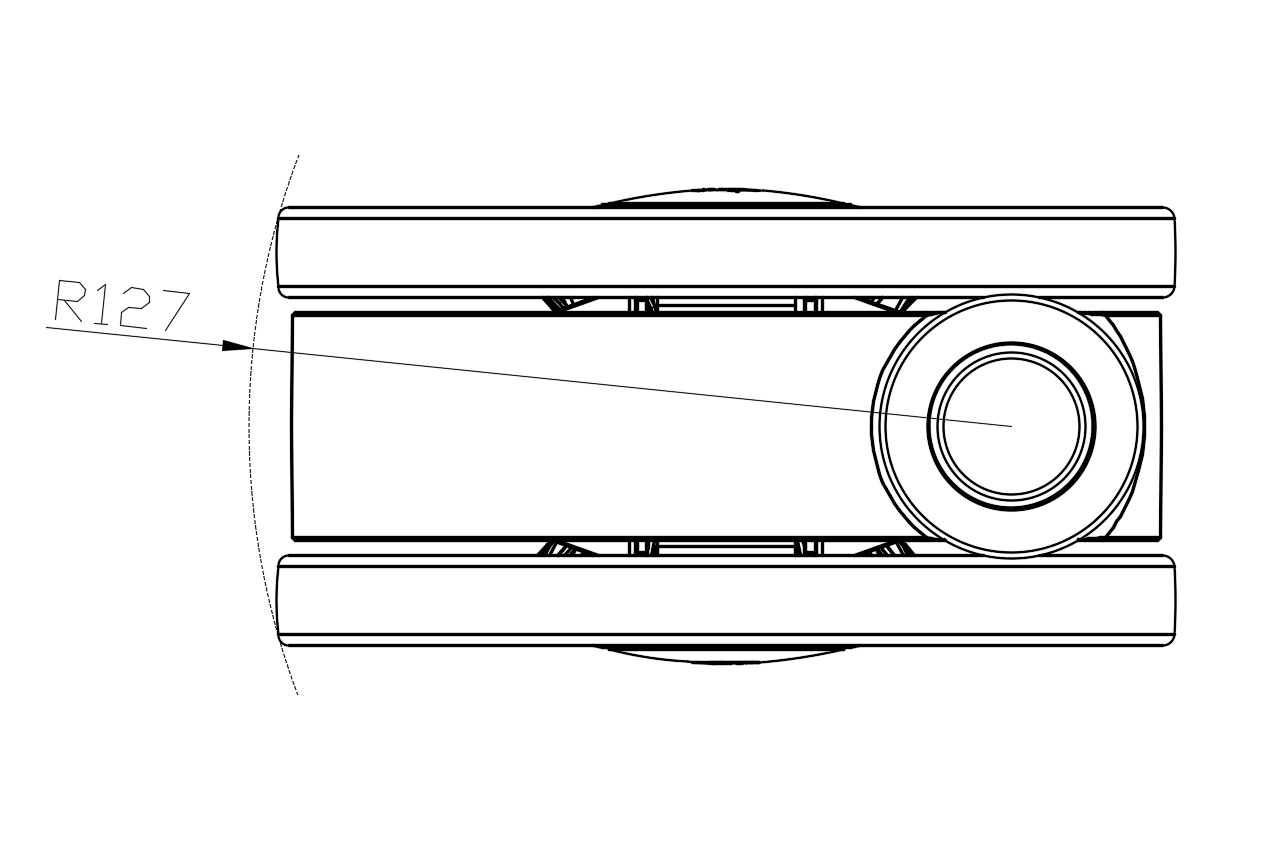

	Wheel Bearing Wheels With Ball Bearings 　　Stem Diameter 28mm　　　Stem Length 96mm　　　Offset 47.5mm　　　Swivel Interference 254mm　　　Overall Height 155mm　　　Swivel Radius 127mm　　　Hardness Of Tread 72±5° Shore A　　　Load Capacity (Dynamic) 150kgs	Rolling Resistance　　　 ● ● ● ● ● 　　Operating Noise　　　　 ● ● ● ● ● 　　Floor Surface Preservation ● ● ● ● ●
	Load Capacity (Static) 225kgs　　　Temperature -20°C to +60°C　　　Fork Type Swivel Caster With Total Brake
	Stainless N/A 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 1.24kgs　　　Standard ISO22881
