    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
　　EAN
　　　　　 　　　
　　YJ-11510400334023 　　　

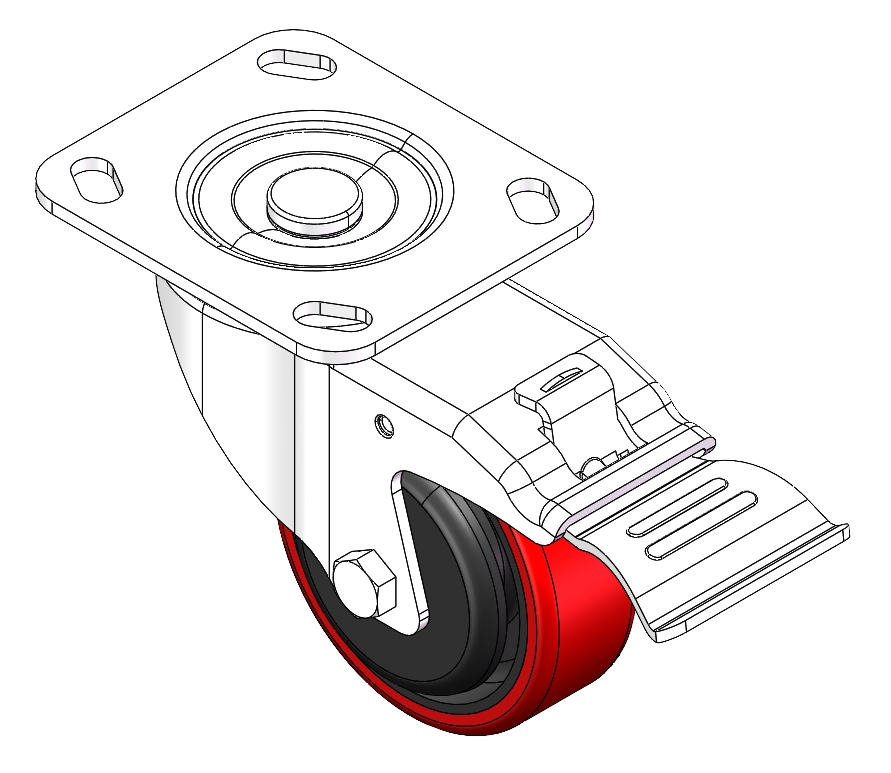

Casters with Total Brakes and a Locking system. Top Plate Riveted and Stamping. Frame—85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Red Cast Iron finish. Bearing—Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

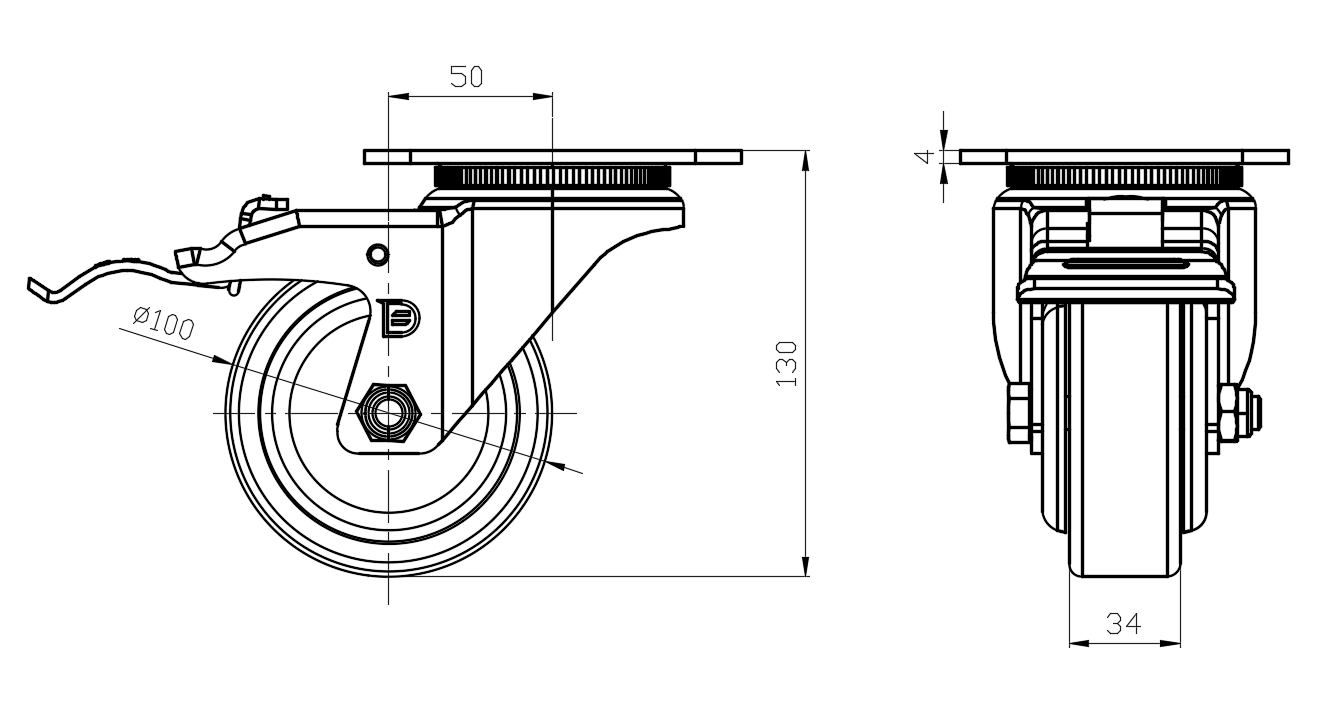

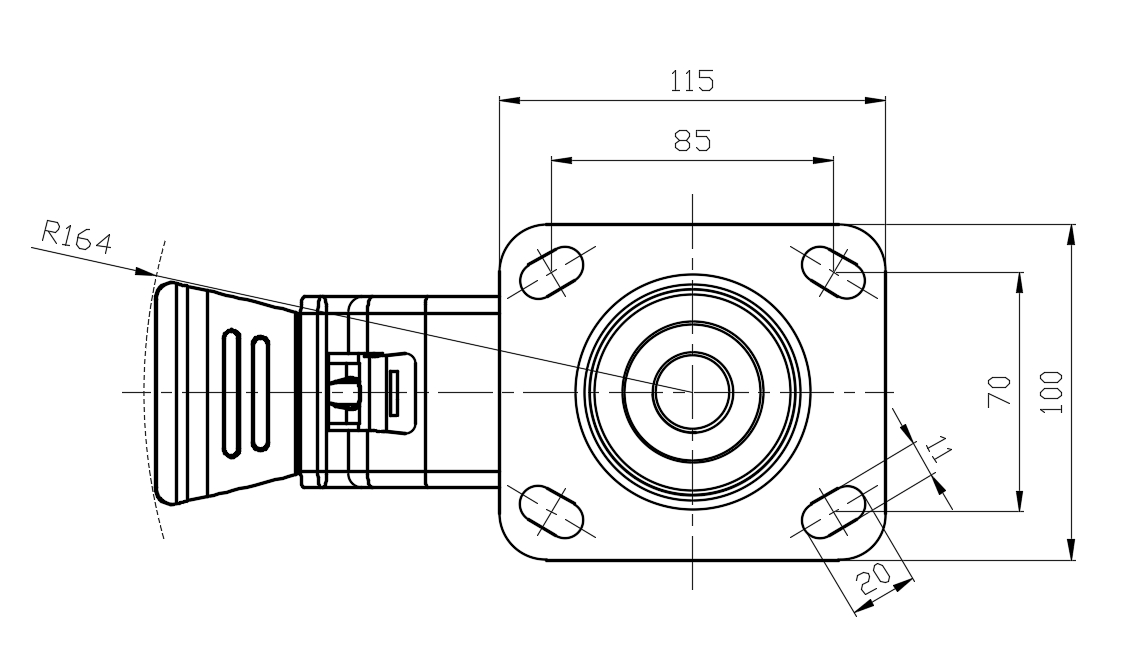

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 50mm　
　　Swivel Interference 328mm　
　　Overall Height 130mm　
　　Swivel Radius 164mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.95kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
Related　　Products　　
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
YJ-11510400331013
100 mm 200 Kgs 130 mm

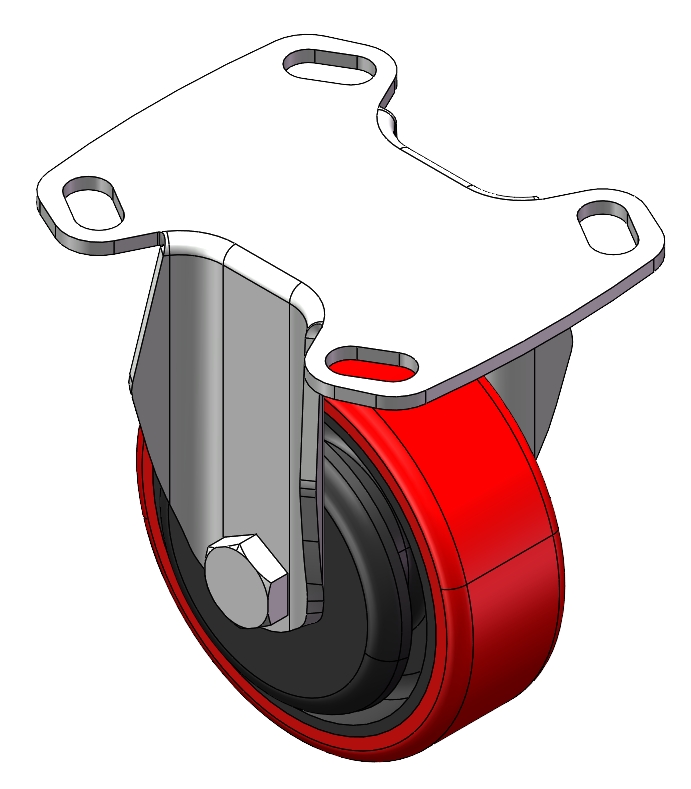

Rigid Caster with integral Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Red Cast Iron finish, Bearing with Ball Bearing.
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
YJ-11510400332013
100 mm 200 Kgs 130 mm

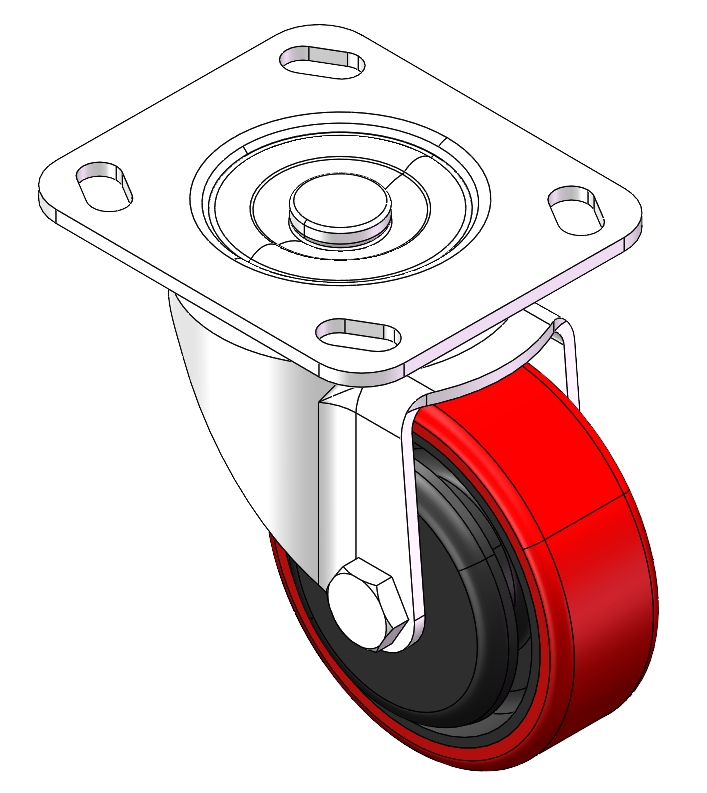

Swivel Caster, Top Plate Riveted Stamping Fork - D-type hole Surface Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread Iron red, Bearing - Ball Bearing.
