    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　W Resolute (black, dark gray) Wheel Diameter × Wheel Width 100 x 36mm
　　EAN
　　　　　 　　　
　　YJ-11510400452013 　　　
Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type.
Zine-Plated, Top Plateed (4T) Mounting Type mechanism.
Reinforced, impact-resistant polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Dark gray finish. Ball Bearing bearings.
　　Thermoplastic rubber elastomer (TPR)
　　Made of high-quality impact-resistant polypropylene

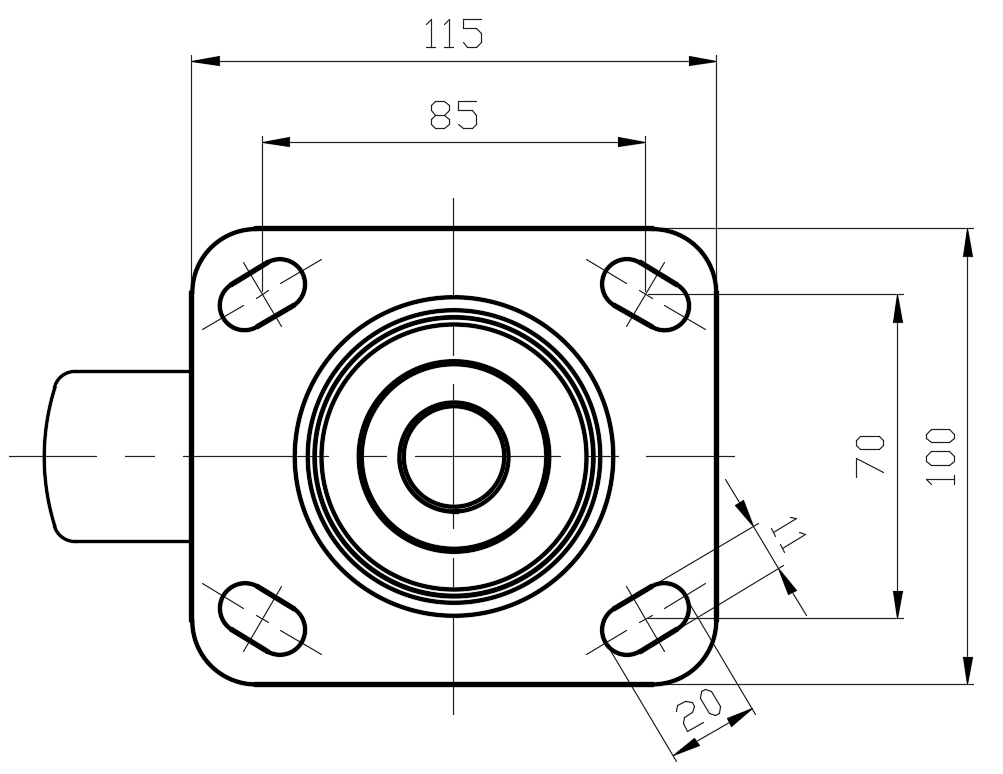

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 36mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 130mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 140kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 210kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.16kgs　
　　Standard ISO22883
　　
　　
