    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　SX Rubber Wheel Diameter × Wheel Width 150 x 45mm
　　EAN
　　　　　 　　　
　　YJ-11510600032013 　　　
Swivel Caster, Top Plate with Riveted Stamping bracket and D-shaped hole. Zine-Plated, Top Plate (4T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Black, Bearing with Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: cast iron core

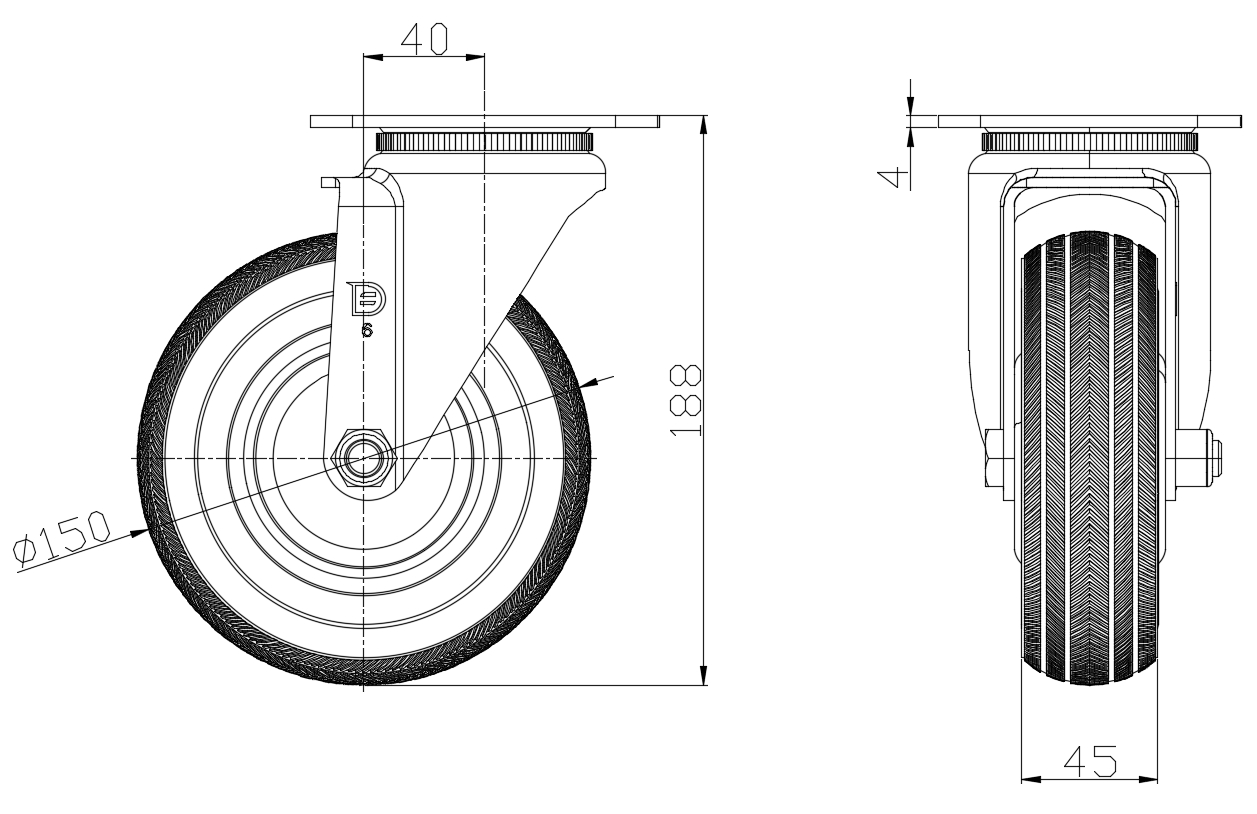

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings

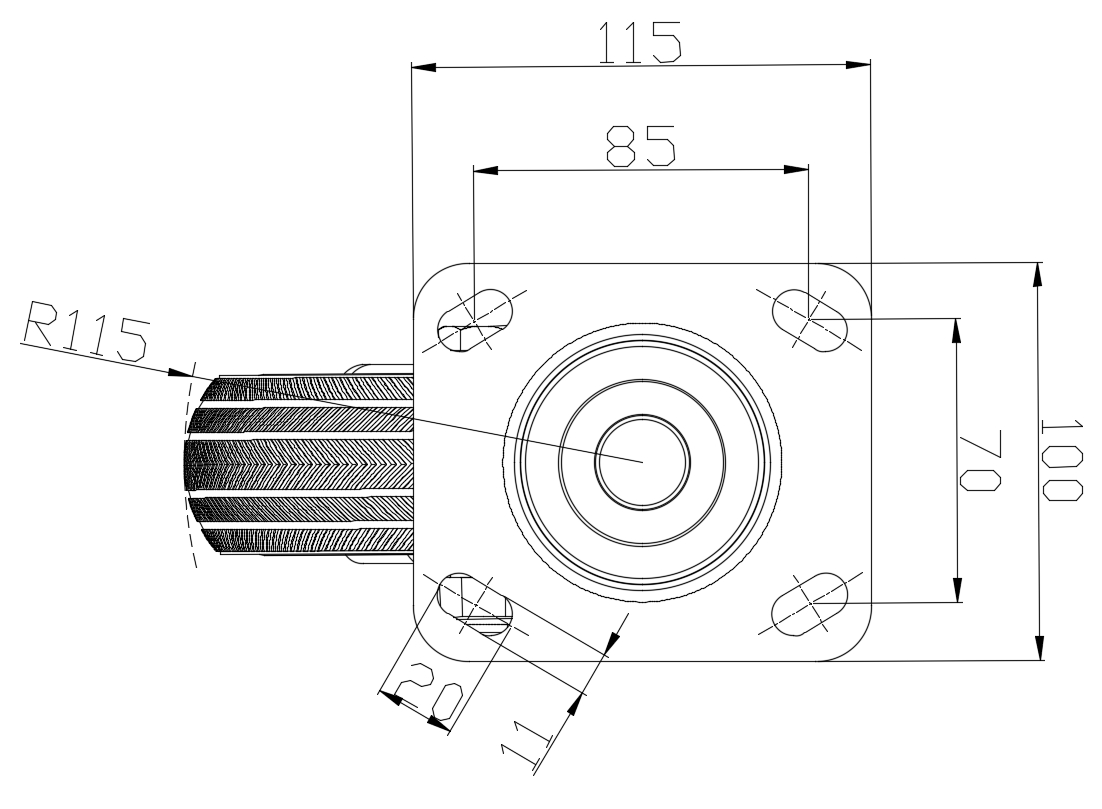

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 230mm　
　　Overall Height 188mm　
　　Swivel Radius 115mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 220kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 330kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.60kgs　
　　Standard ISO22883
　　
　　
