    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11510400072013 　　　

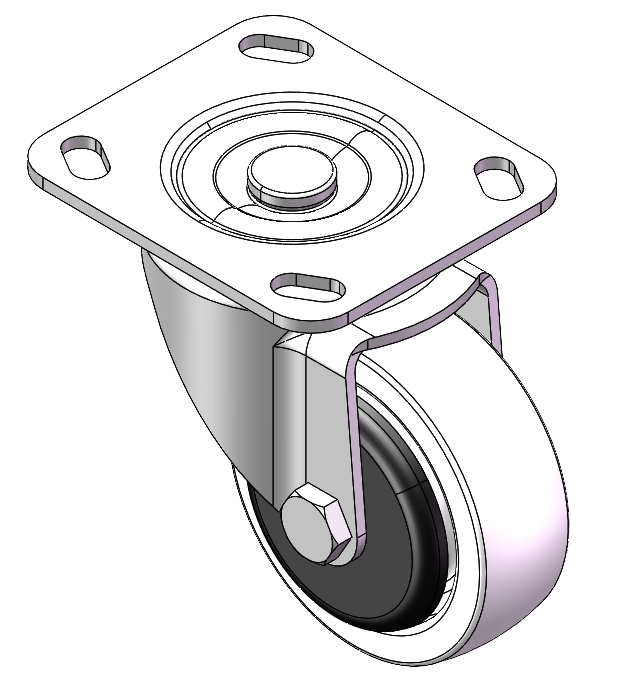

Swivel Caster, Top Plate Riveted and Stamping with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type.
Zine-Plated, Top Plate (4T) Mounting Type mechanism.
Reinforced Polypropylene Wheel Center and Wheel Tread.
Bearings—Ball Bearings.
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

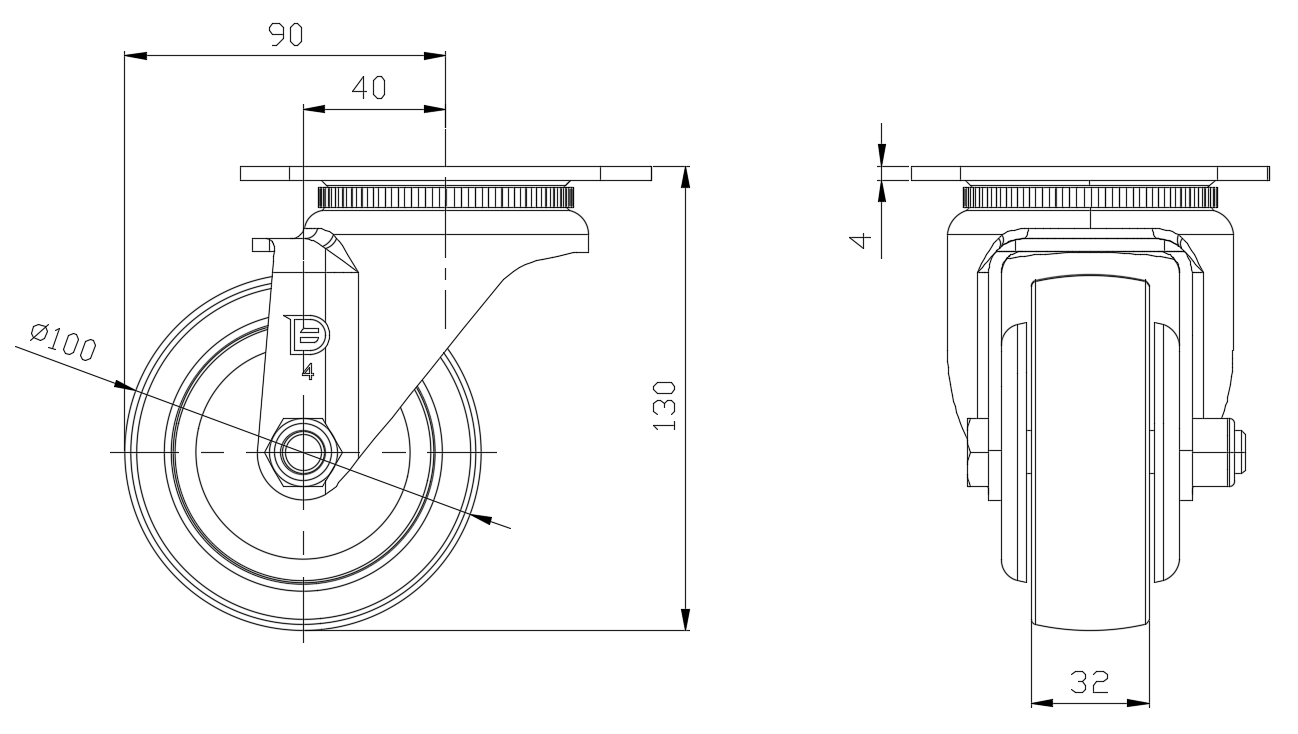

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 130mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.19kgs　
　　Standard ISO22883
　　
　　
