    Product Data Sheet

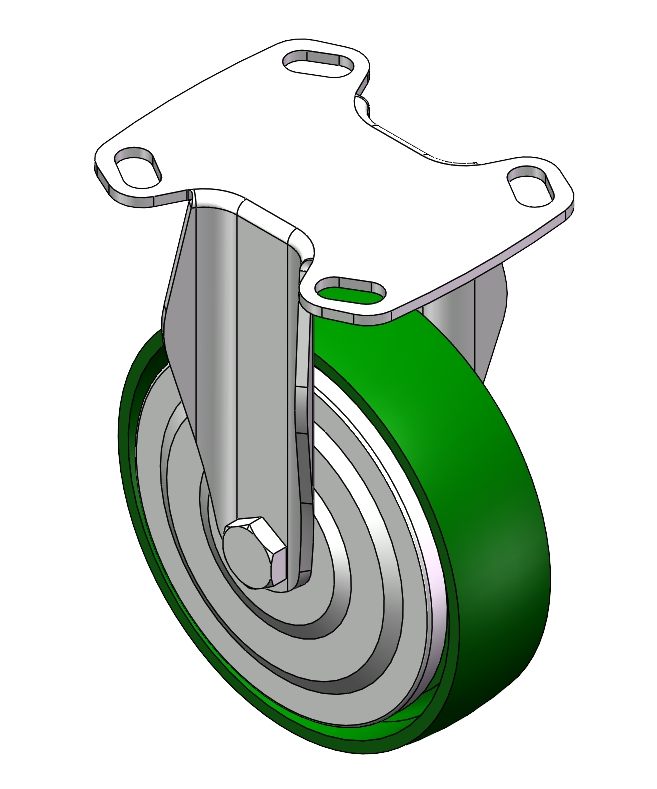

1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　Cast Iron (Green) Wheel Diameter × Wheel Width 138 x 36mm
　　EAN
　　　　　 　　　
　　YJ-11510600141013 　　　
Rigid Caster, Stamping Fabricated Caster Fork - D-type hole Extended control lever surface, Top Plate (3.5T) installation device Cast Iron Wheel Center and Wheel Tread Green, Bearing - Ball Bearing.
　　Wheel tread: cast iron
　　Wheel Center: cast iron

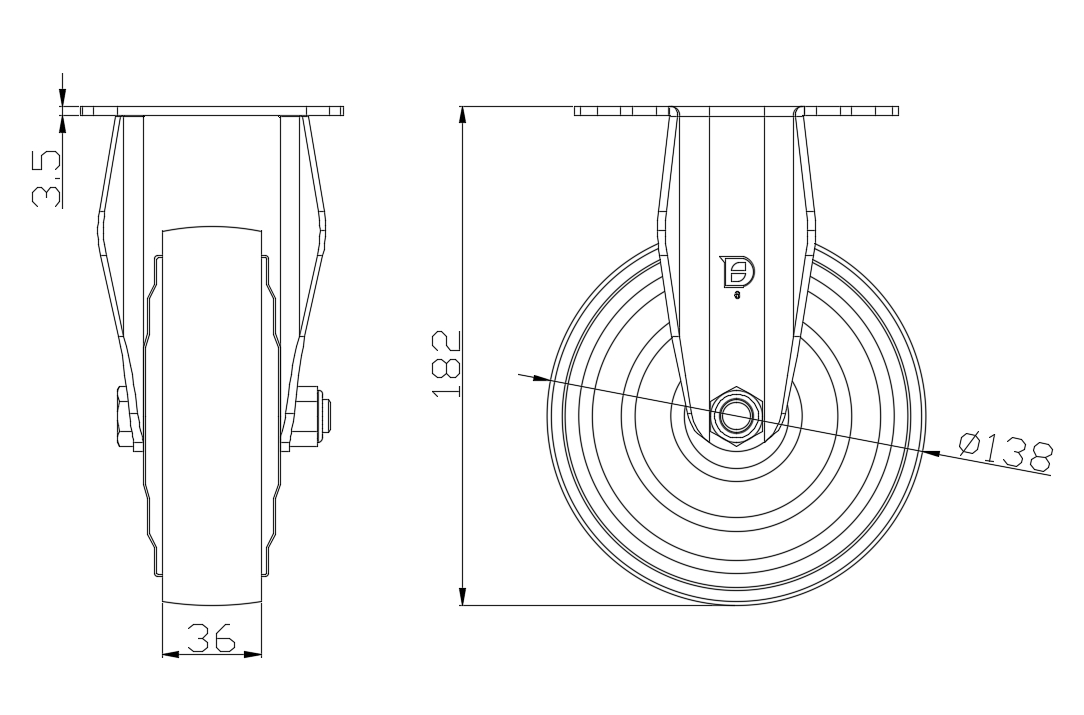

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 138mm　

　　Wheel Width 36mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 118 x 95.8mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 182mm　
　　Hardness Of Tread ° Shore A　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ○ ○ ○ ○

　　Floor Surface Preservation  ● ○ ○ ○ ○
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +250°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.12kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
Related　　Products　　

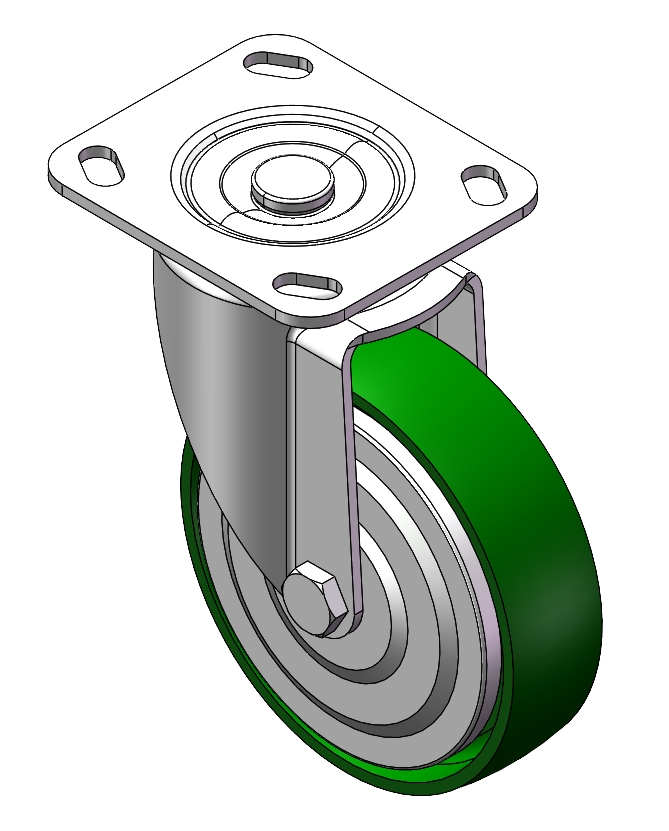

1151D Heavy Duty 1.5" Wide General Purposes Caster Series
