    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　QPU (Brown flat) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11510500531073 　　　
Rigid Caster with integral Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Platestyle (3.5T) Mounting Type system. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

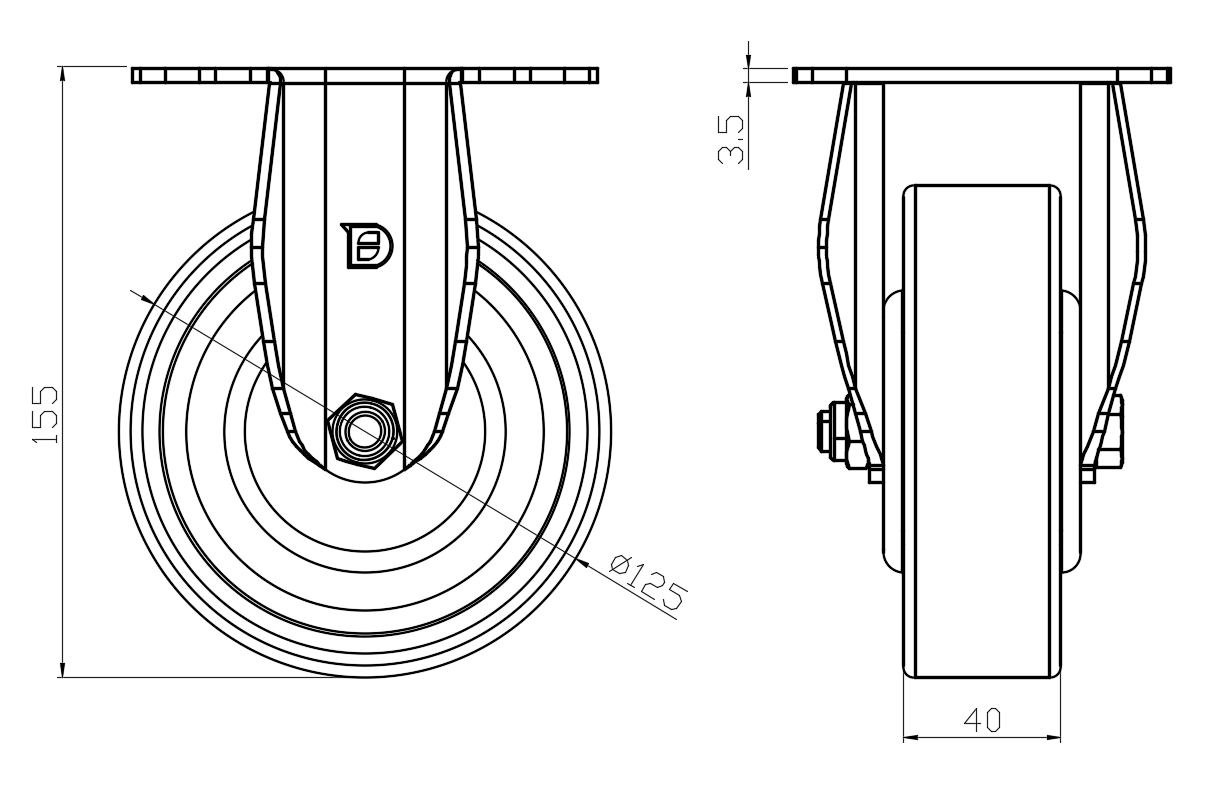

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

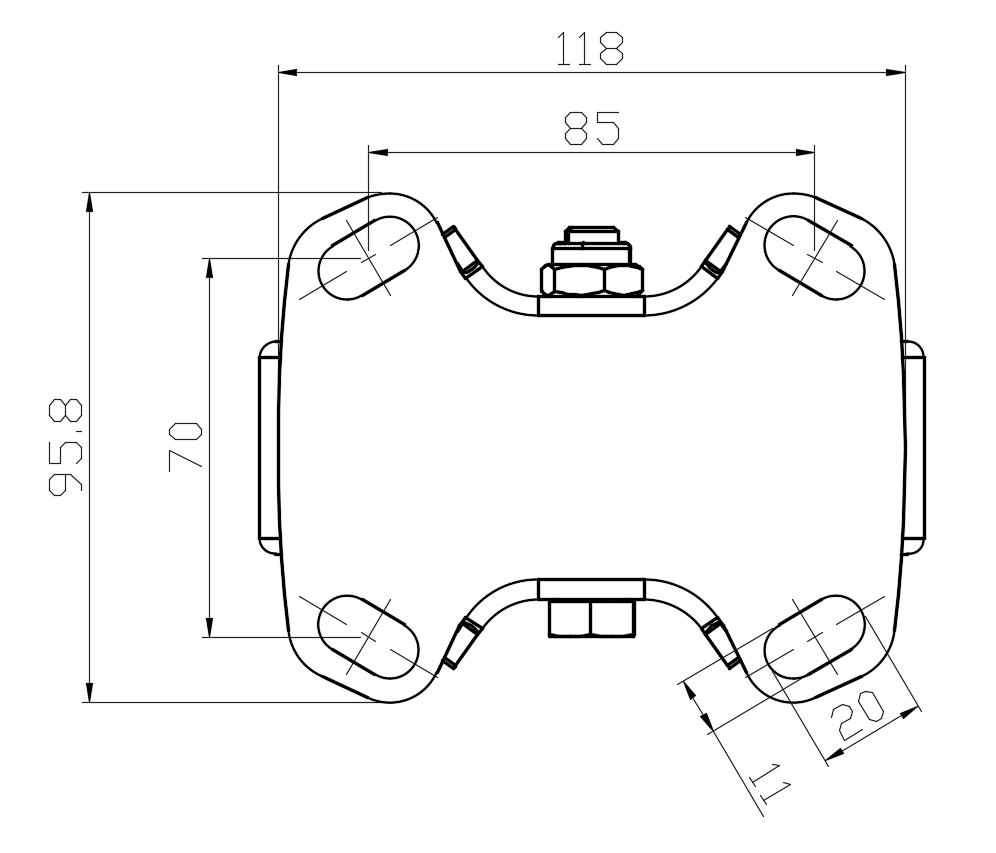

　　Plate Size 118 x 95.8mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 155mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.84kgs　
　　Standard ISO22883
　　
　　
