    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　QPU (Grey flat) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 　　　
　　YJ-11510400532023 　　　

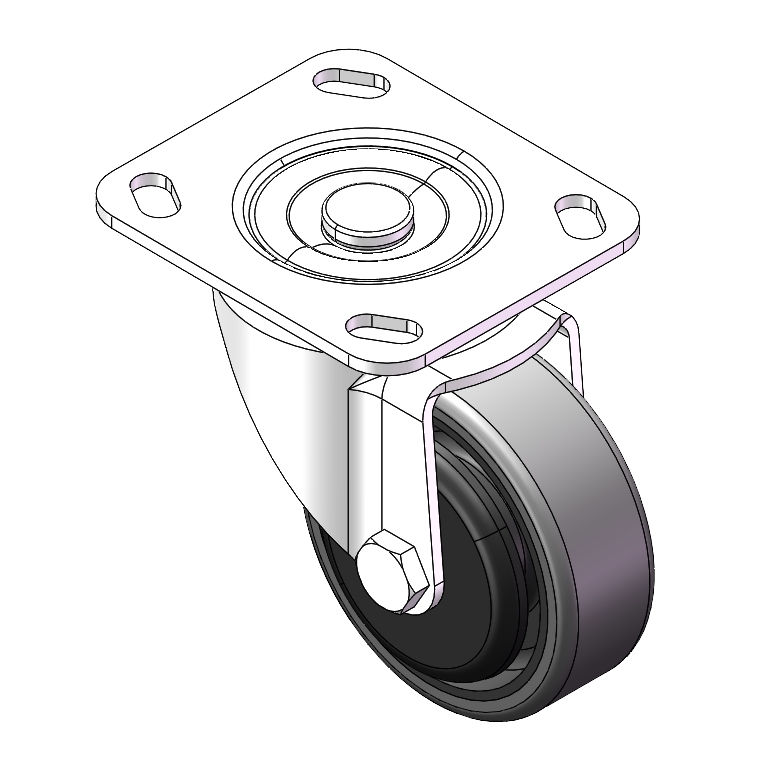

Swivel castor, Top Plate Riveted Stamping Fork - D-type hole Surface Zine-Plated, Top Plate type (4T) Mounting Type device Cast Iron Wheel Center, high quality polyurethane Wheel Tread Gray, Bearing - Ball Bearing.
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

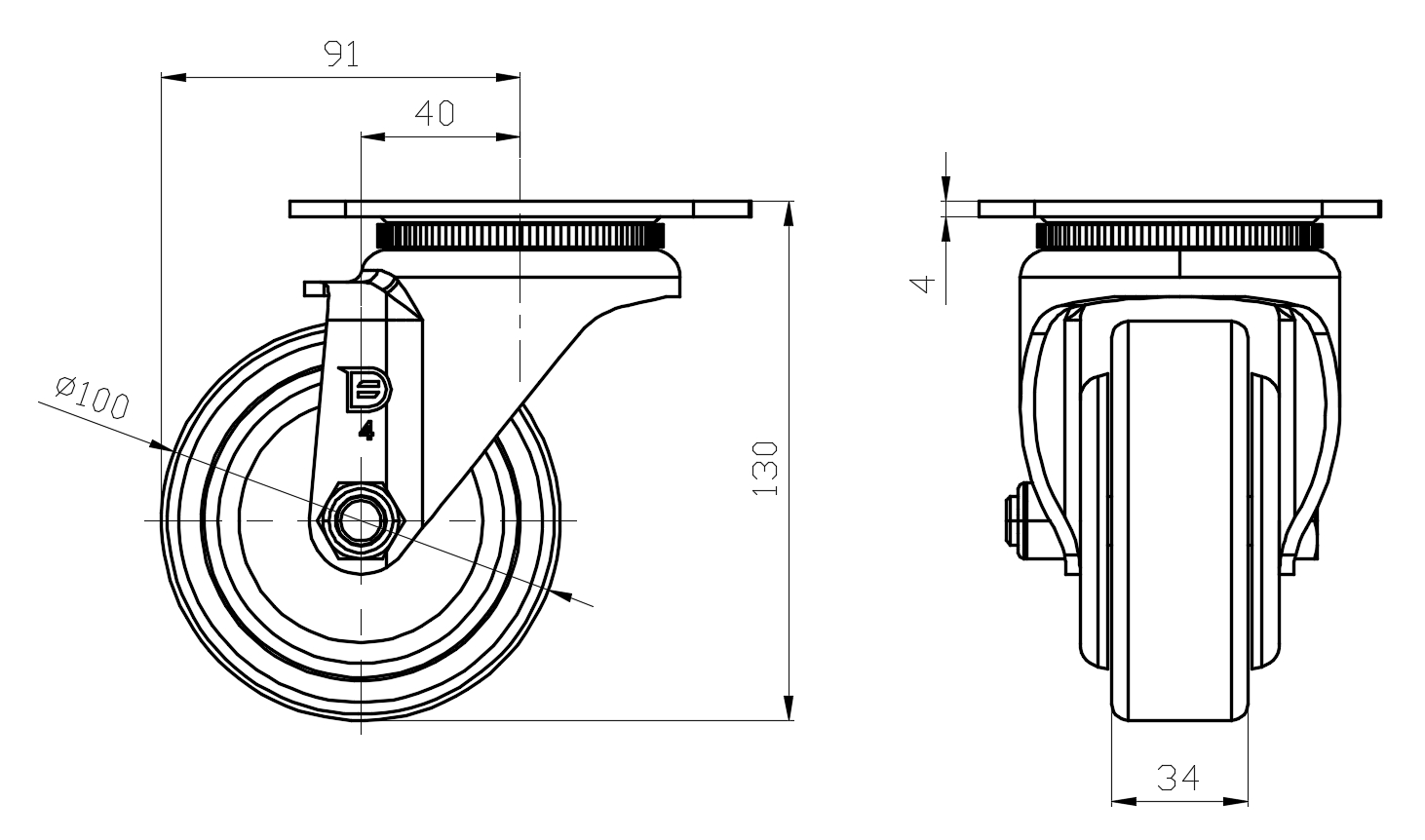

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

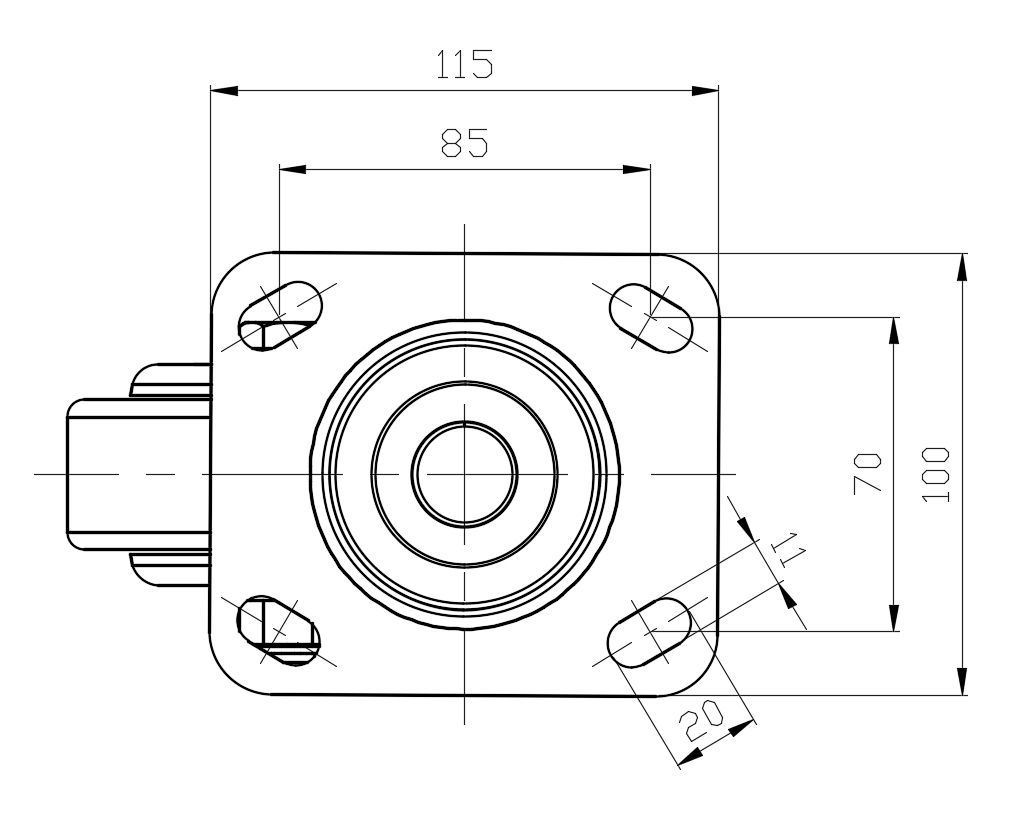

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 40mm　
　　Swivel Interference 182mm　
　　Overall Height 130mm　
　　Swivel Radius 91mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.65kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
Related　　Products　　
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
QPU (Grey flat) Wheel Diameter × Wheel Width 100 x 34mm
YJ-11510400531023
100 mm 300 Kgs 130 mm

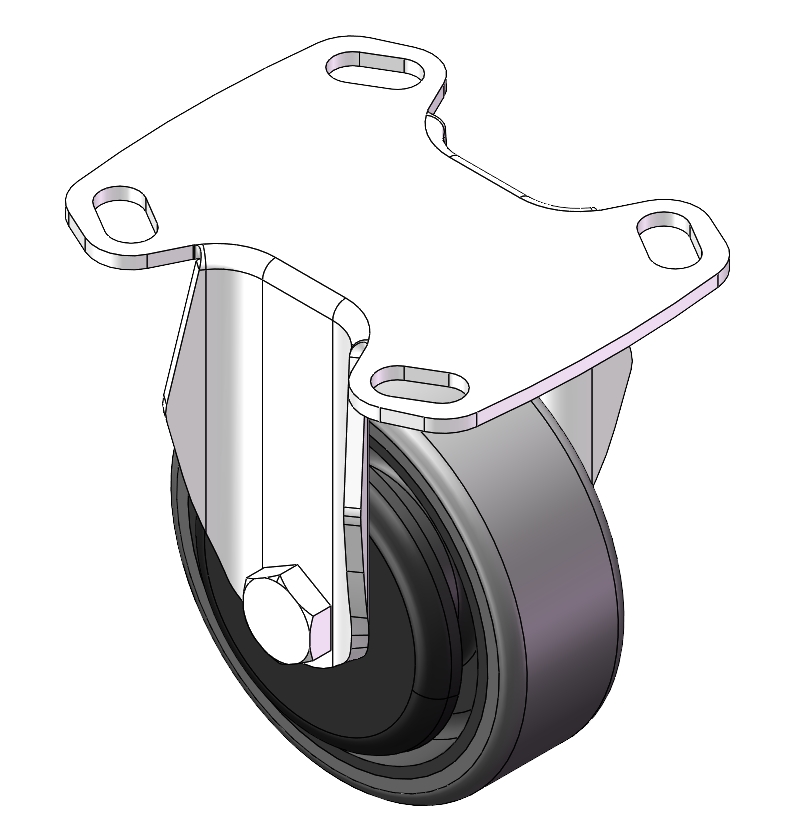

Rigid Caster with integral Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (3.5T) Mounting Type system. Cast Iron Wheel Center with High Quality Polyurethane tread. Gray color, Ball Bearing.
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
QPU (Grey flat) Wheel Diameter × Wheel Width 100 x 34mm
YJ-11510400534023
100 mm 300 Kgs 130 mm

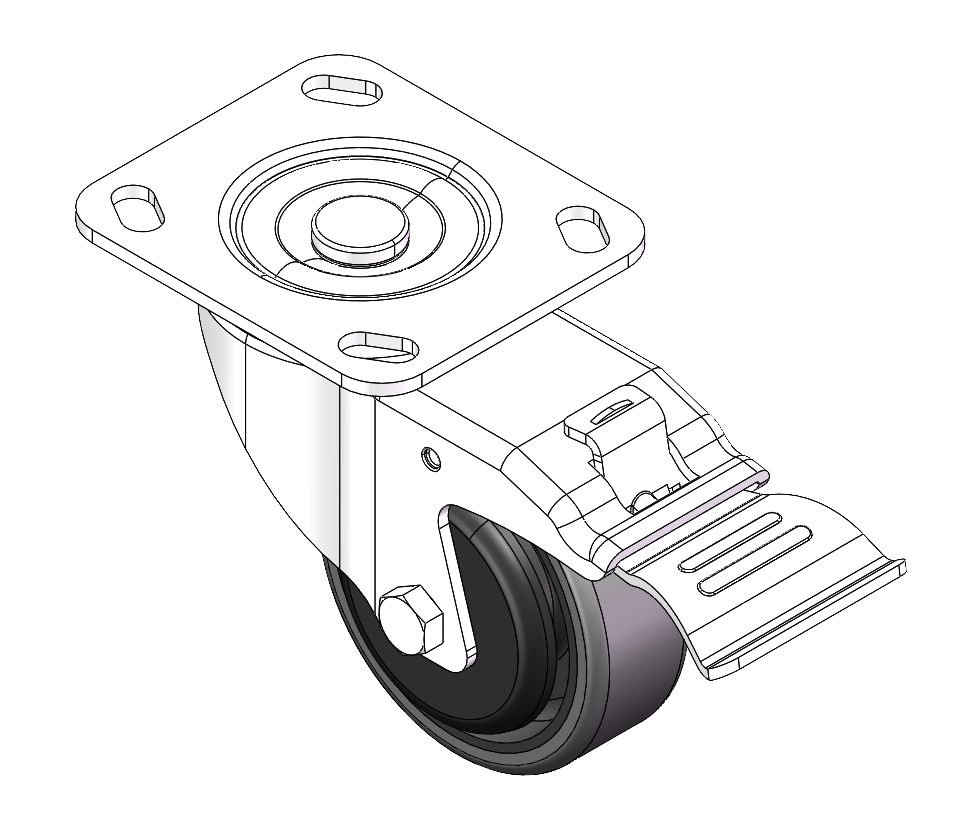

Casters with Total Brakes and Locking system. Top Plate Riveted and Stamping 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4T) Mounting Type. Cast Iron Wheel Center with High Quality Polyurethane tread. Gray color, Bearing with Ball Bearing.
