    Product Data Sheet
1151D Heavy Duty 1.5" Wide General Purposes Caster Series
　　WCPD (White) Wheel Diameter × Wheel Width 150 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11510600441023 　　　
Rigid Caster, Stamping Fabricated Caster Fork - D-type hole Extended control lever surface, Top Plate (3.5T) Mounting Type device Polypropylene Wheel Center, Wheel Tread White, Bearing - Ball Bearing
　　Wheel Tread: PP polypropylene
　　Wheel Center: PP polypropylene

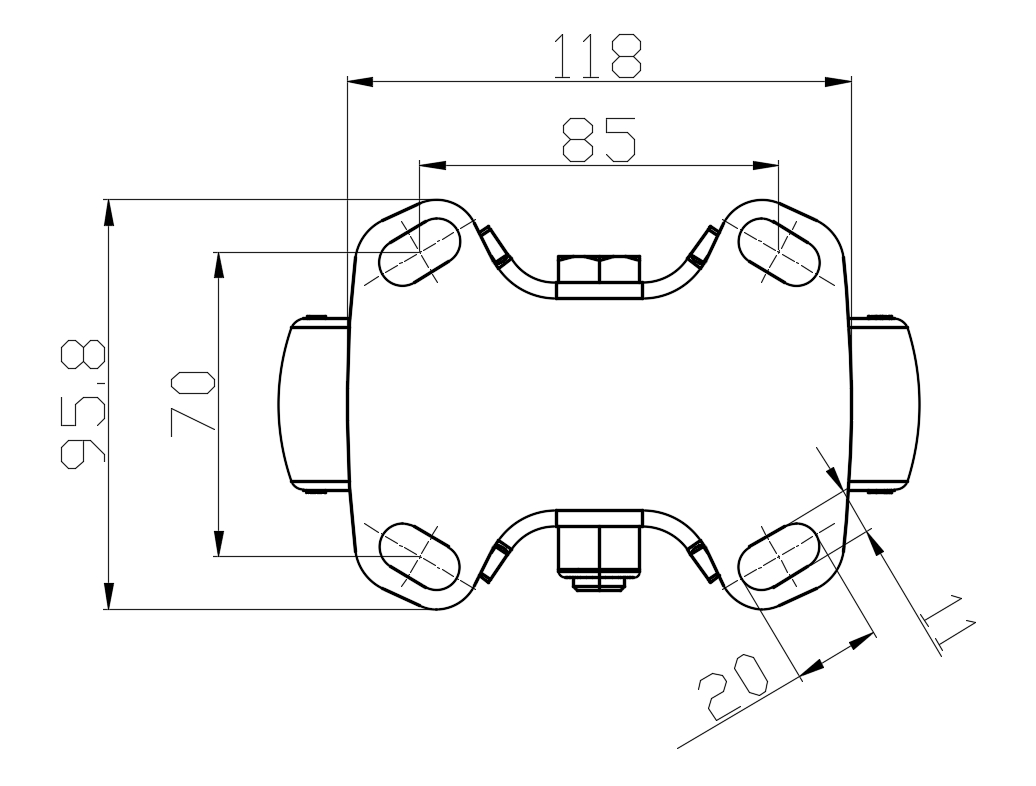

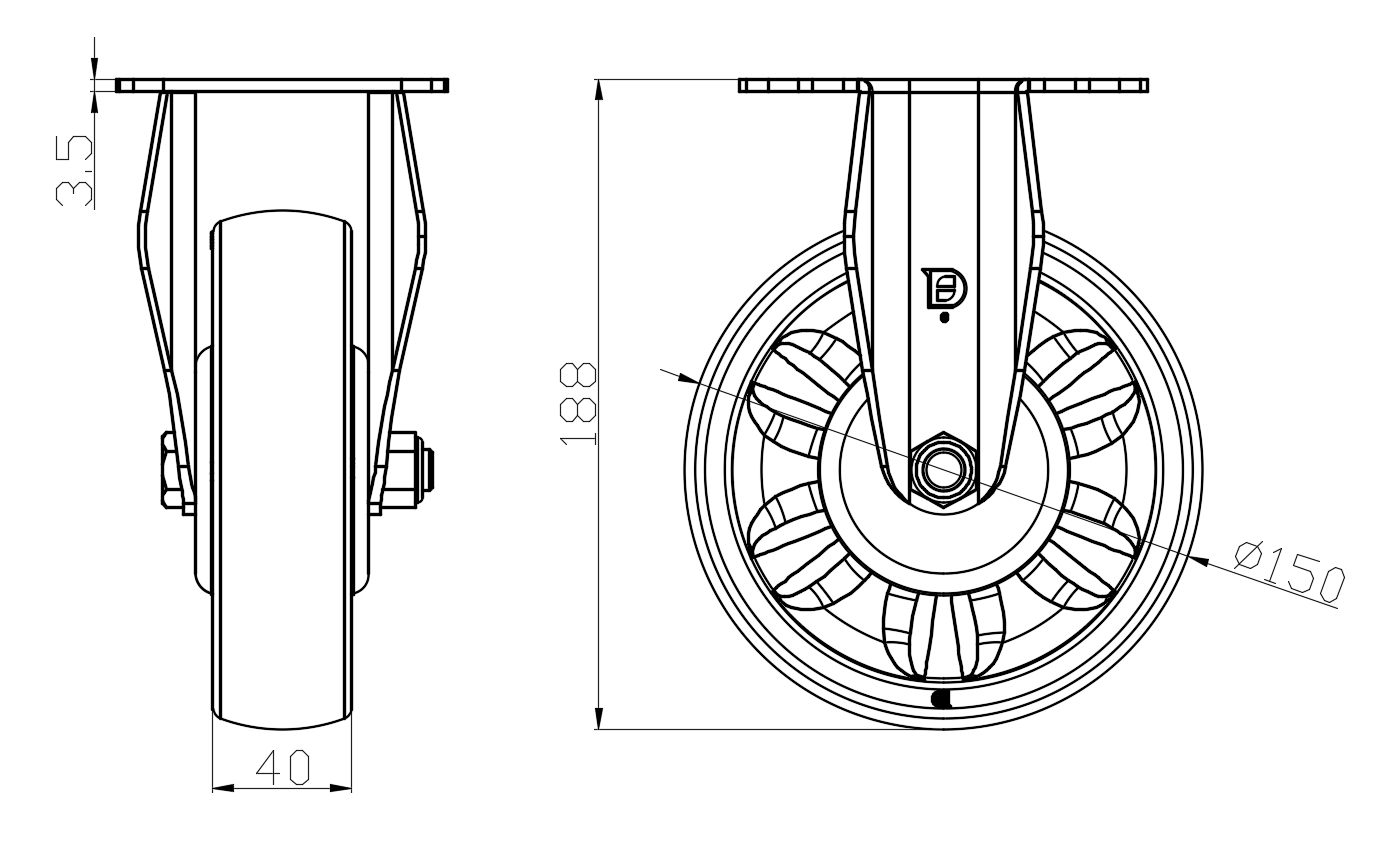

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 118 x 95.8mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 188mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.04kgs　
　　Standard ISO22883
　　
　　
