    Product Data Sheet
1152 Self-Align Casters Series
　　QPU (Brown round) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11520400532751
　　　　　 　　　

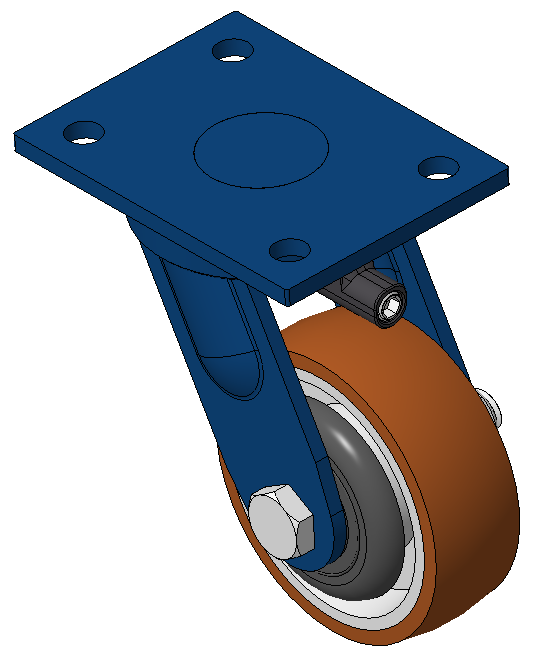

Self-centering Swivel Caster with Welded Caster Fork, blue painted finish. Mounting Type - Top Plate, 90x60 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown Bearing—Ball Bearing
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron

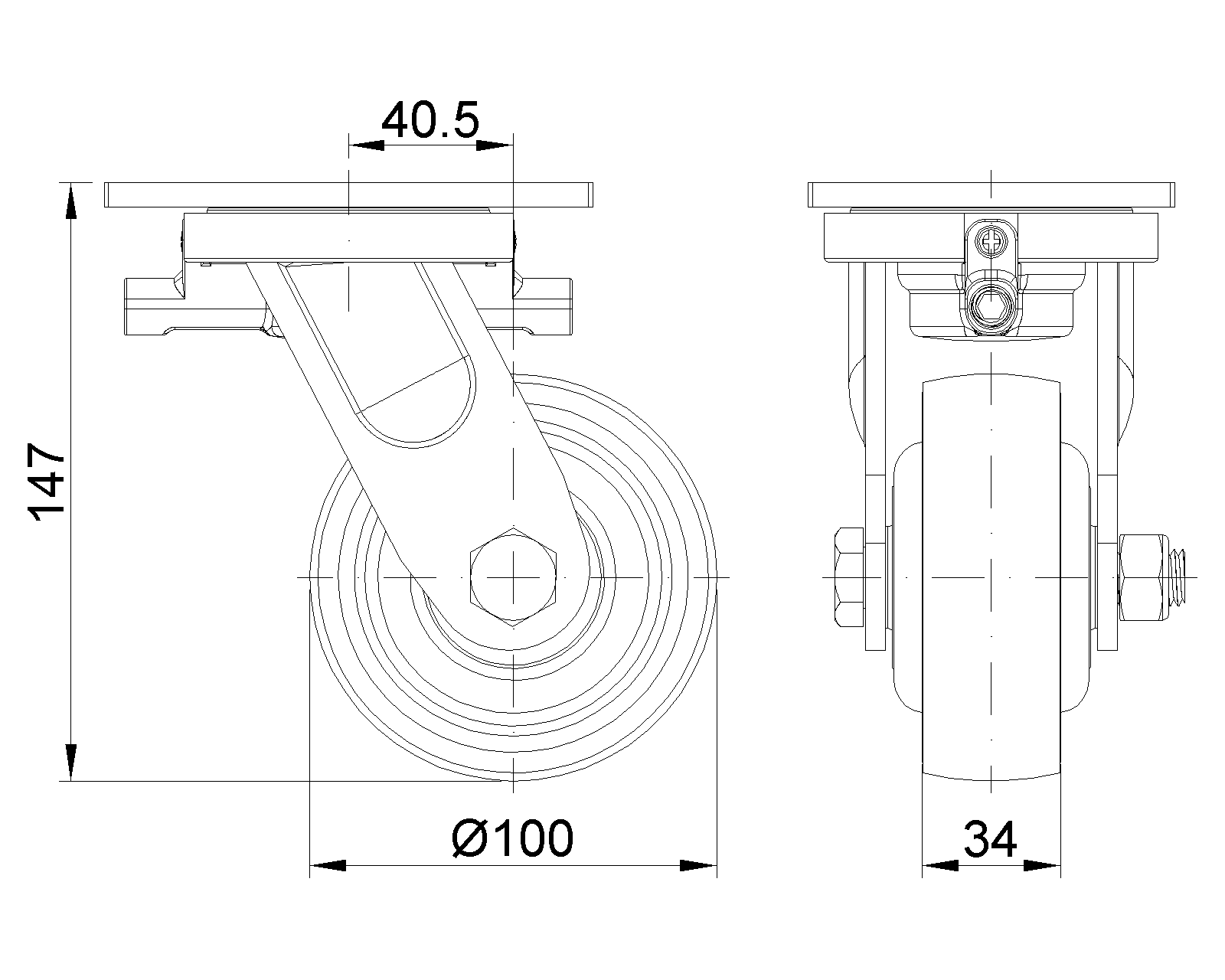

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 034mm　
　　Wheel Bearing Wheels With Ball Bearings

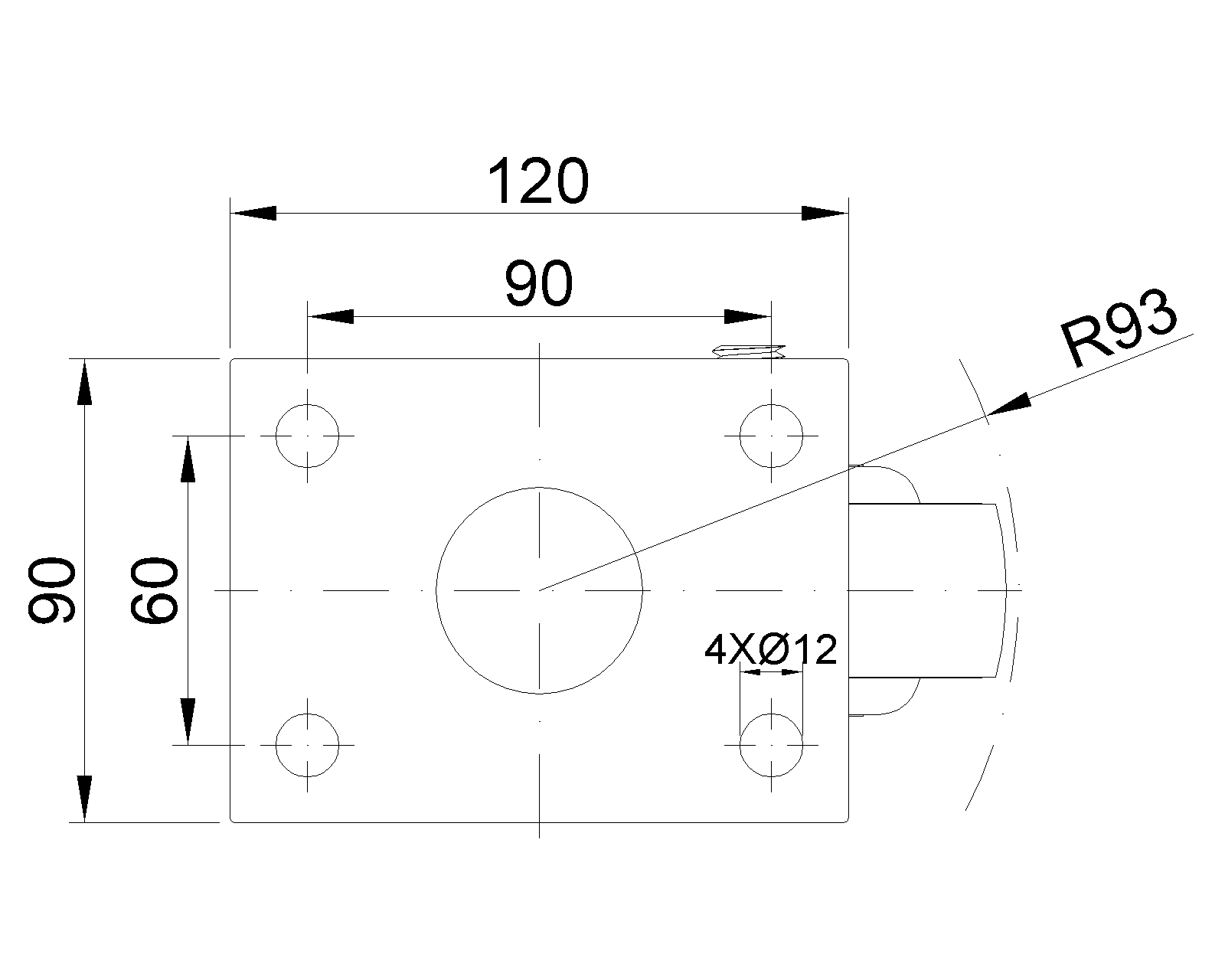

　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Offset 40.5mm　
　　Swivel Interference 186mm　
　　Overall Height 147mm　
　　Swivel Radius 93mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 385kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 577.5kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.31kgs　
　　Standard ISO22883
　　
　　
