    Product Data Sheet
1152 Anti-Friction Caster Series
　　QPU (Brown Flat) Wheel Diameter x Wheel Width 100 x 50mm
　　EAN
　　　　　 KS-11520400532021
　　　　　 　　　
Swivel Caster, Welded Caster Fork - Hole spacing 85x70 Surface sprayed with blue paint, Mounting Type - Top Plate Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread Iron brown, Bearing - Ball Bearing.
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

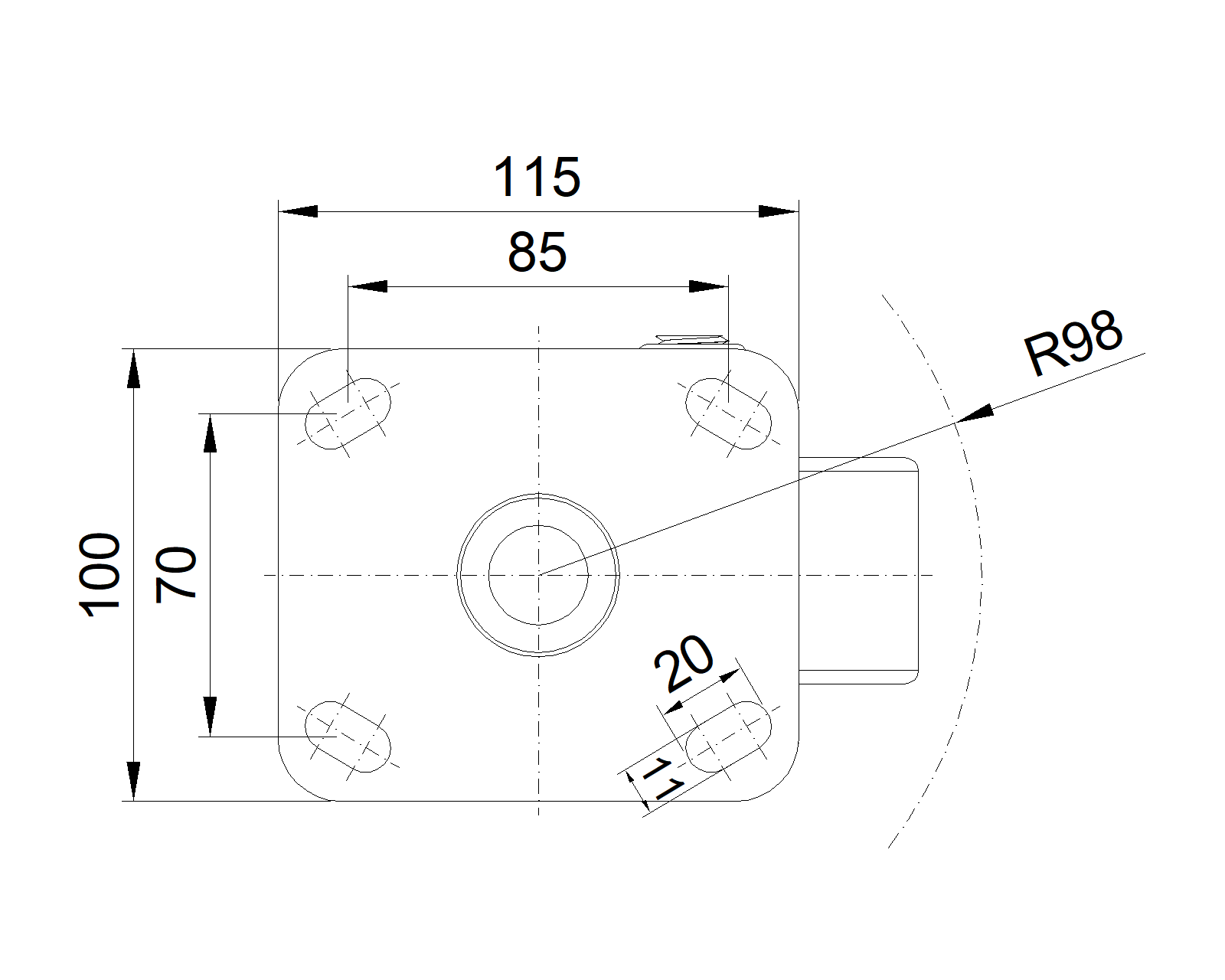

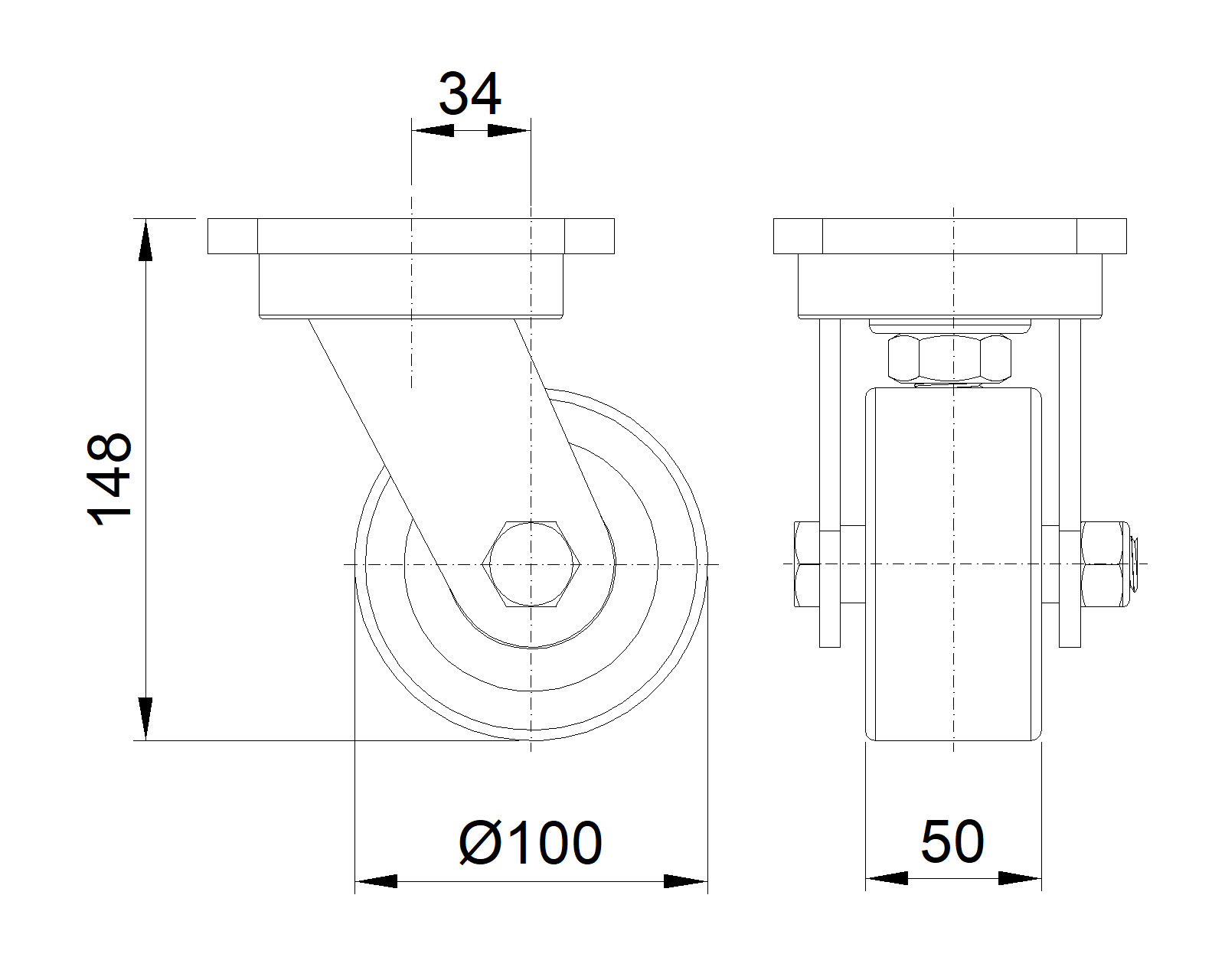

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 45mm　
　　Swivel Interference 196mm　
　　Overall Height 148mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 500kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 750kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.94kgs　
　　Standard ISO22883
　　
　　
