    Product Data Sheet
1152 Anti-Friction Caster Series
　　ZQPU wheel (brown arc) wheel diameter x wheel width 125 x 24 (51) mm
　　EAN
　　　　　 KS-11520500804071
　　　　　 　　　
配有前煞式，锁定系统的脚轮，焊接钢板架 表面喷蓝漆，底板式安装装置，孔距110x75 铸铁制轮芯，高品质聚氨酯轮面，铣褐色 轮子轴承—特制的精密滚珠，降低运转阻力 ZQPU双轮，符合人体工学，更容易启动及转动
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron core

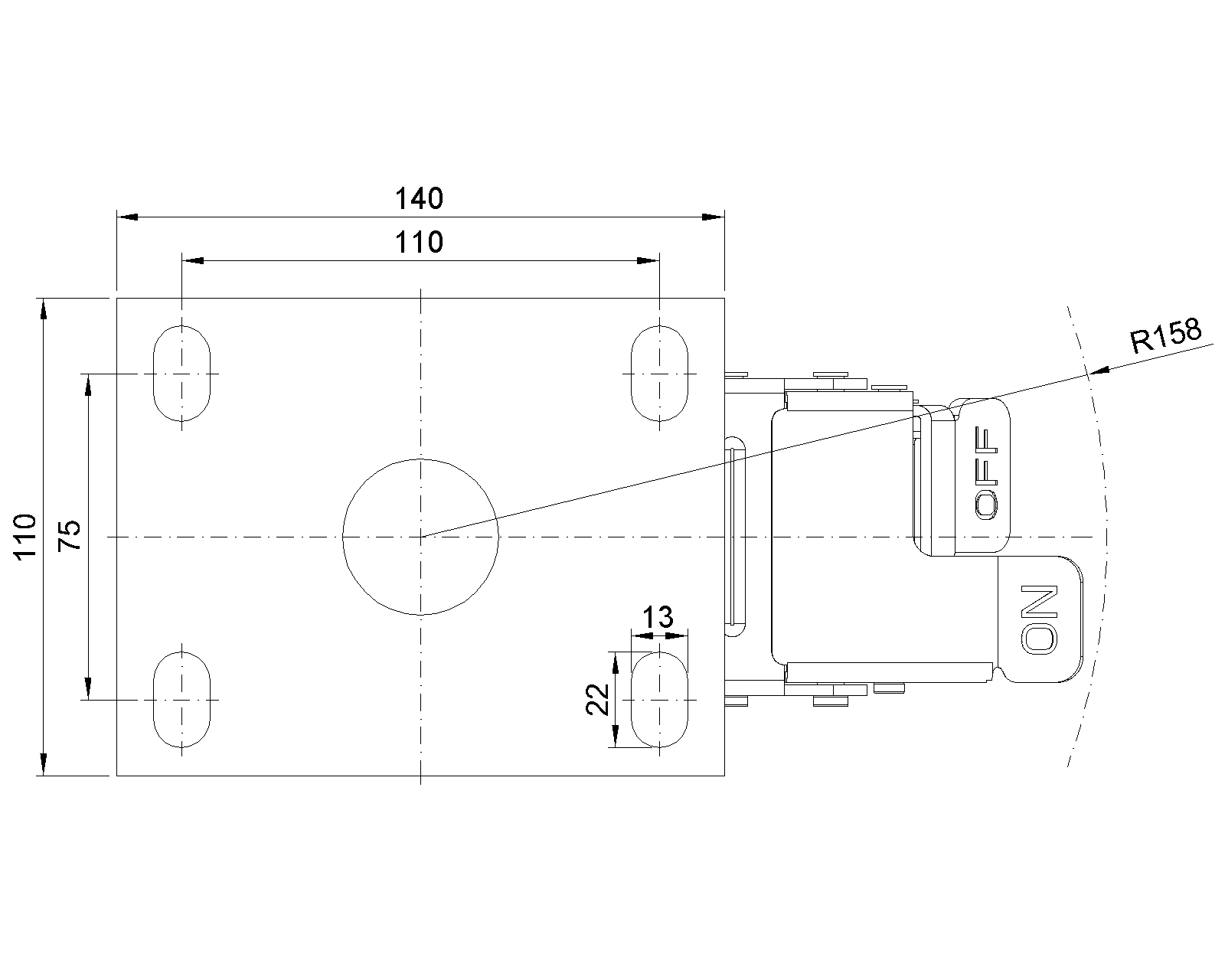

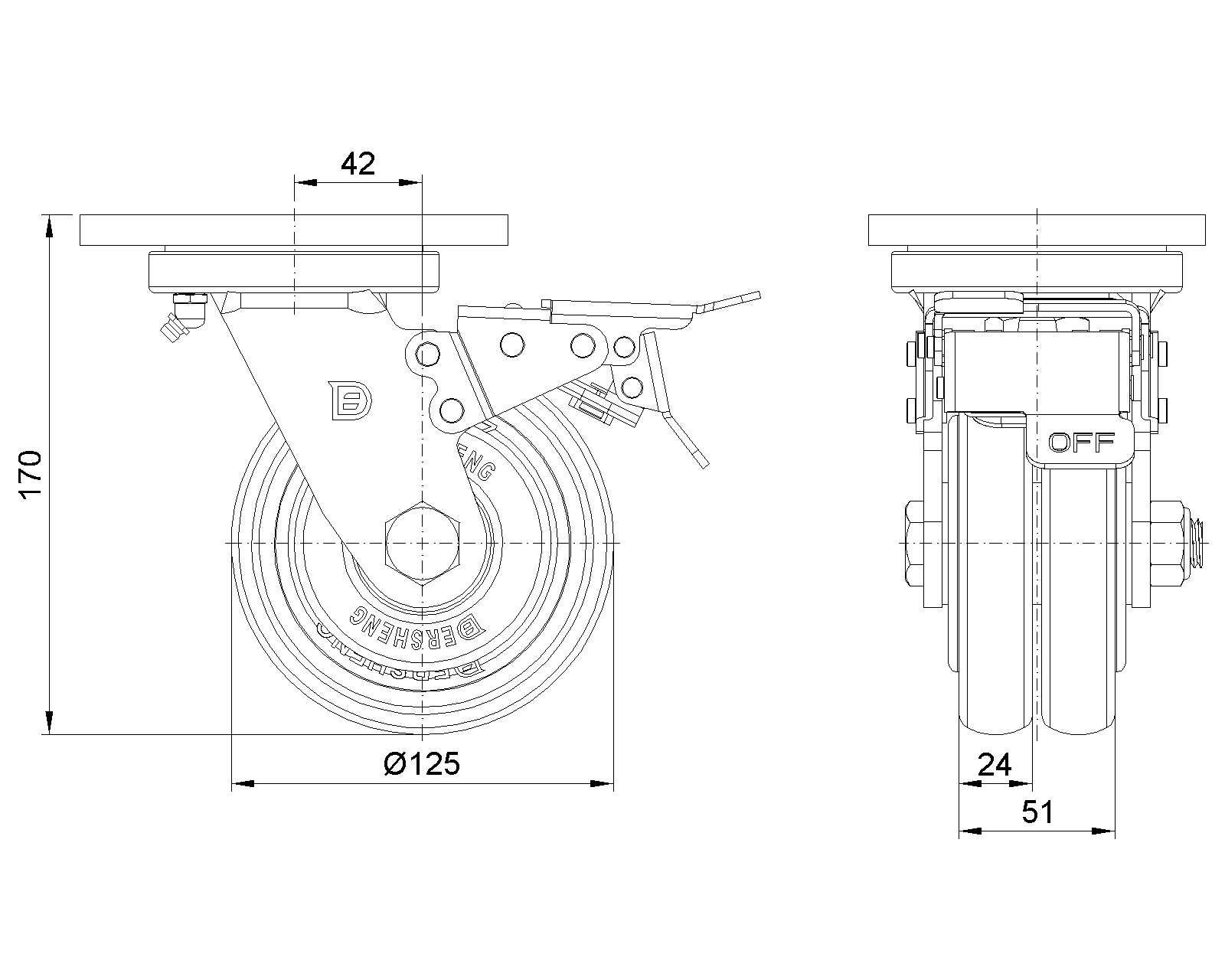

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 24mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 316mm　
　　Overall Height 170mm　
　　Swivel Radius 158mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.68kgs　
　　Standard ISO22883
　　
　　
