    Product Data Sheet
1152 Anti-Friction Caster Series
　　Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 250 x 63mm
　　EAN
　　　　　 KS-11521000042191
　　　　　 　　　
Swivel Caster with Welded Caster Fork, blue paint finish. Mounting Type - Top Plate, 140x85 Bolt Hole Spacing. Cast Iron Wheel Center, High-Quality, highly Resilient Rubber tread, Cast Iron in Natural Color. Bearing—Ball Bearing.
　　Wheel Tread: Made of high-quality, highly elastic rubber
　　Wheel Center: iron core/cast iron core

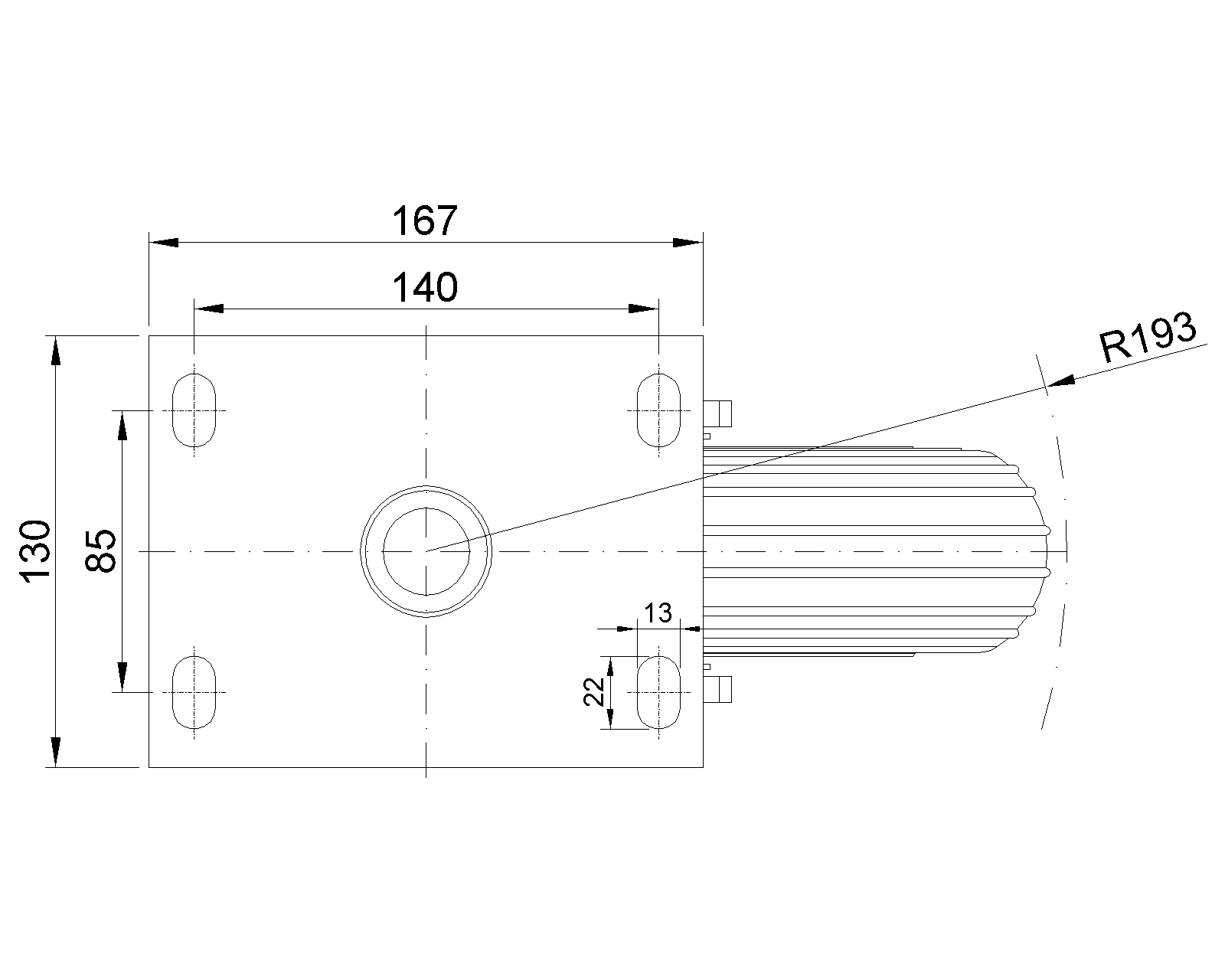

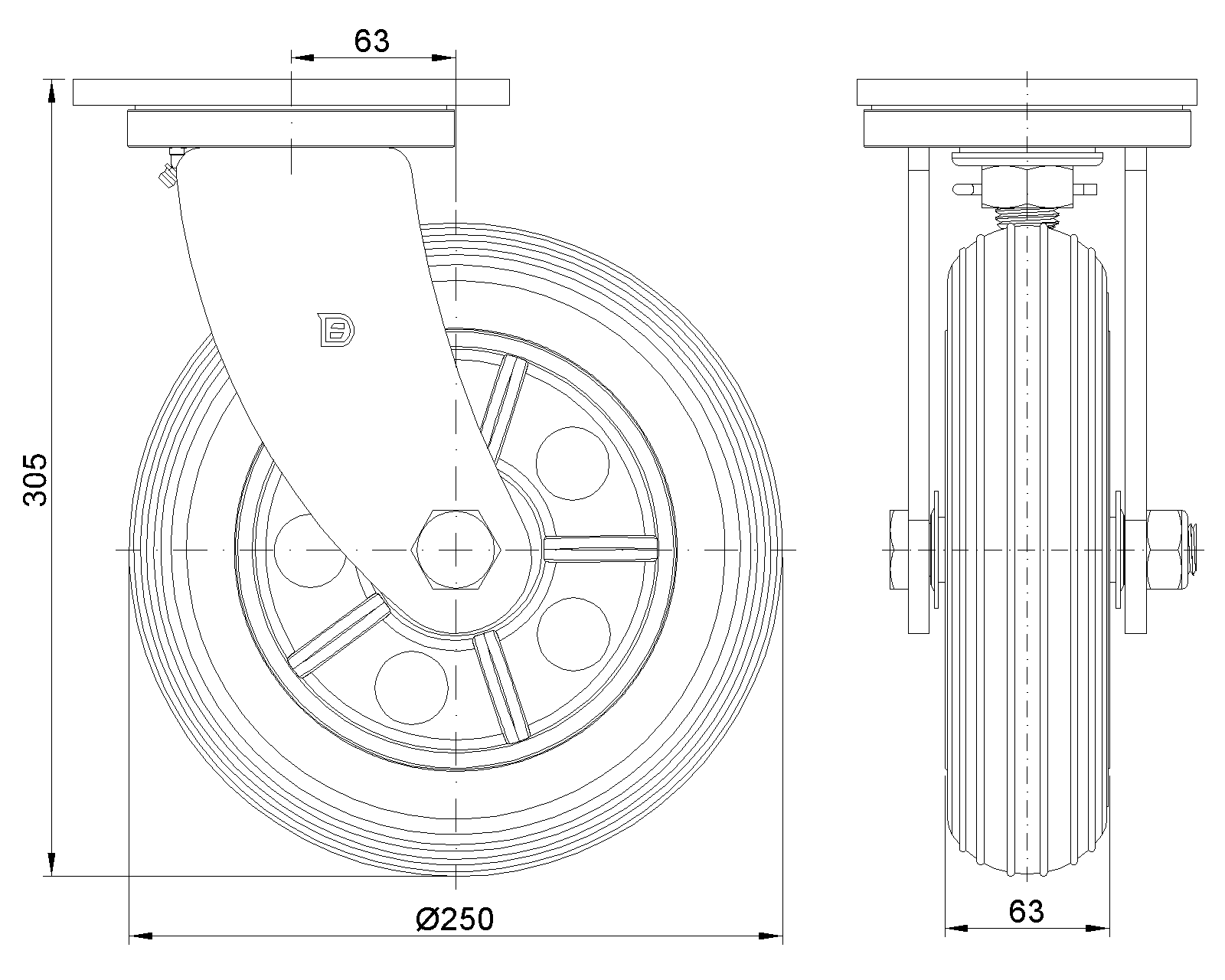

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 250mm　

　　Wheel Width 063mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 167 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 386mm　
　　Overall Height 305mm　
　　Swivel Radius 193mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 400kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 600kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 10.83kgs　
　　Standard ISO22883
　　
　　
