    Product Data Sheet
1152 Anti-Friction Caster (B Type) Series
　　VQPU (brown round) Wheel Diameter x Wheel Width 150 x 42mm
　　EAN
　　　　　 KS-11520600544321
　　　　　 　　　
Casters with rear brake and locking mechanism, Welded Caster Fork, blue painted finish Mounting Type - Top Plate, 140x105 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron brown Bearing—Ball Bearing
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

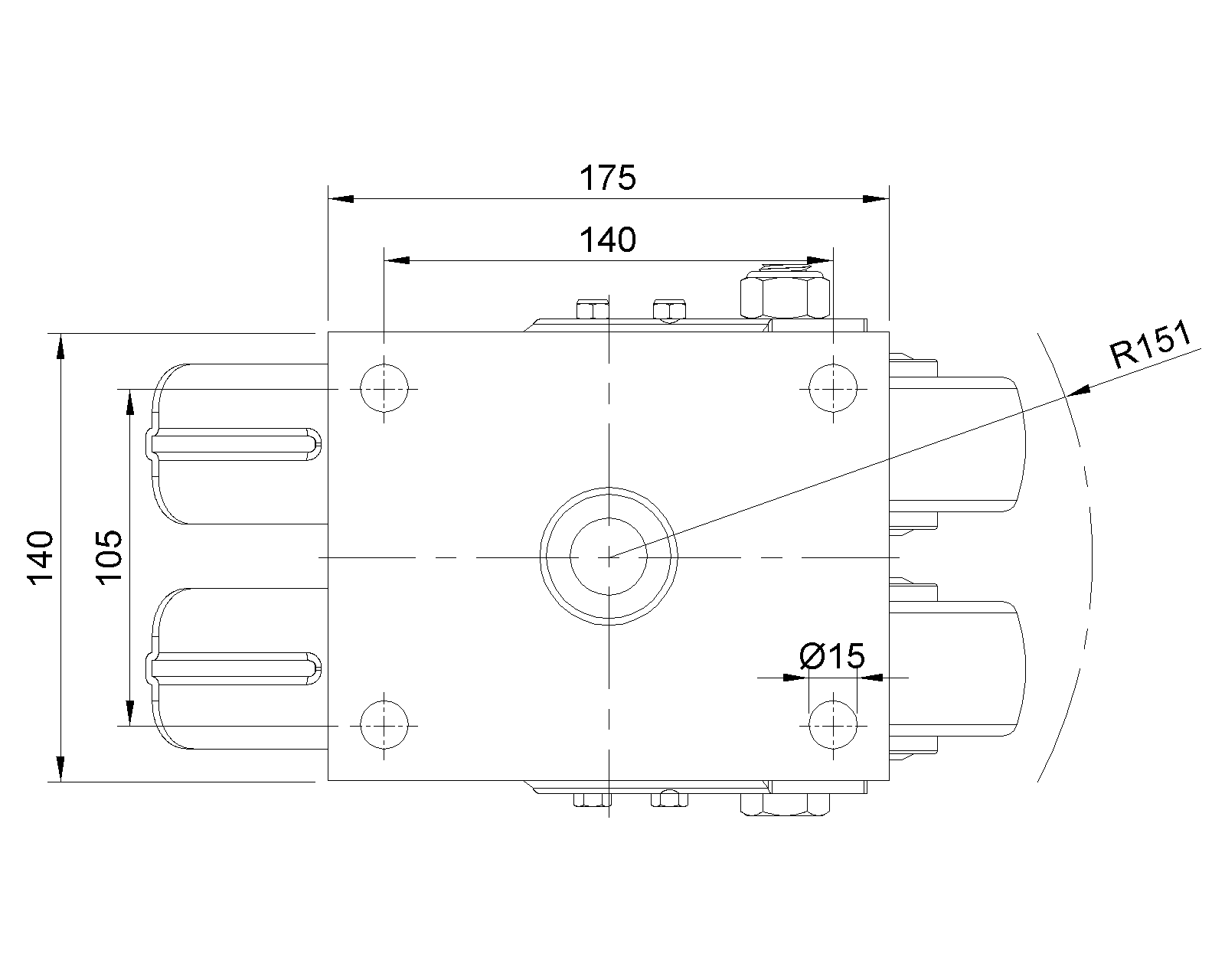

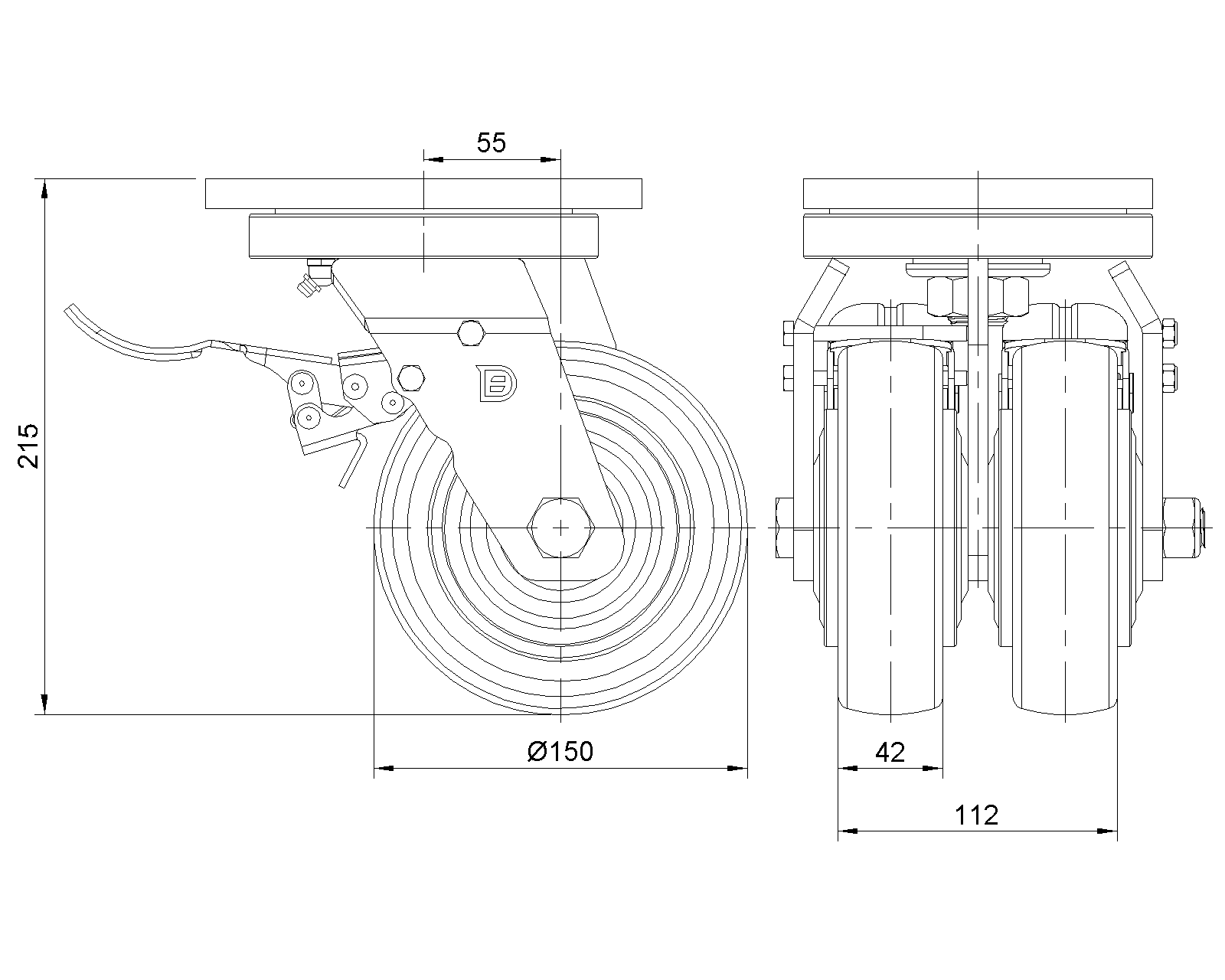

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 112mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 175 x 140mm　
　　Bolt Hole Spacing 140x105mm　
　　Plate Hole 15mm　
　　Offset 55mm　
　　Swivel Interference 302mm　
　　Overall Height 215mm　
　　Swivel Radius 151mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 1206kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1809kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 11.70kgs　
　　Standard ISO22883
　　
　　
