    Product Data Sheet
1152 Anti-Friction Caster (B Type) Series
　　PU (red round) Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11520500331331
　　　　　 　　　
Rigid Caster with Welded Caster Fork and blue paint finish. Mounting Type - Top Plate, 140x105mm Bolt Hole Spacing. Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red. Bearing: Precision ball bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

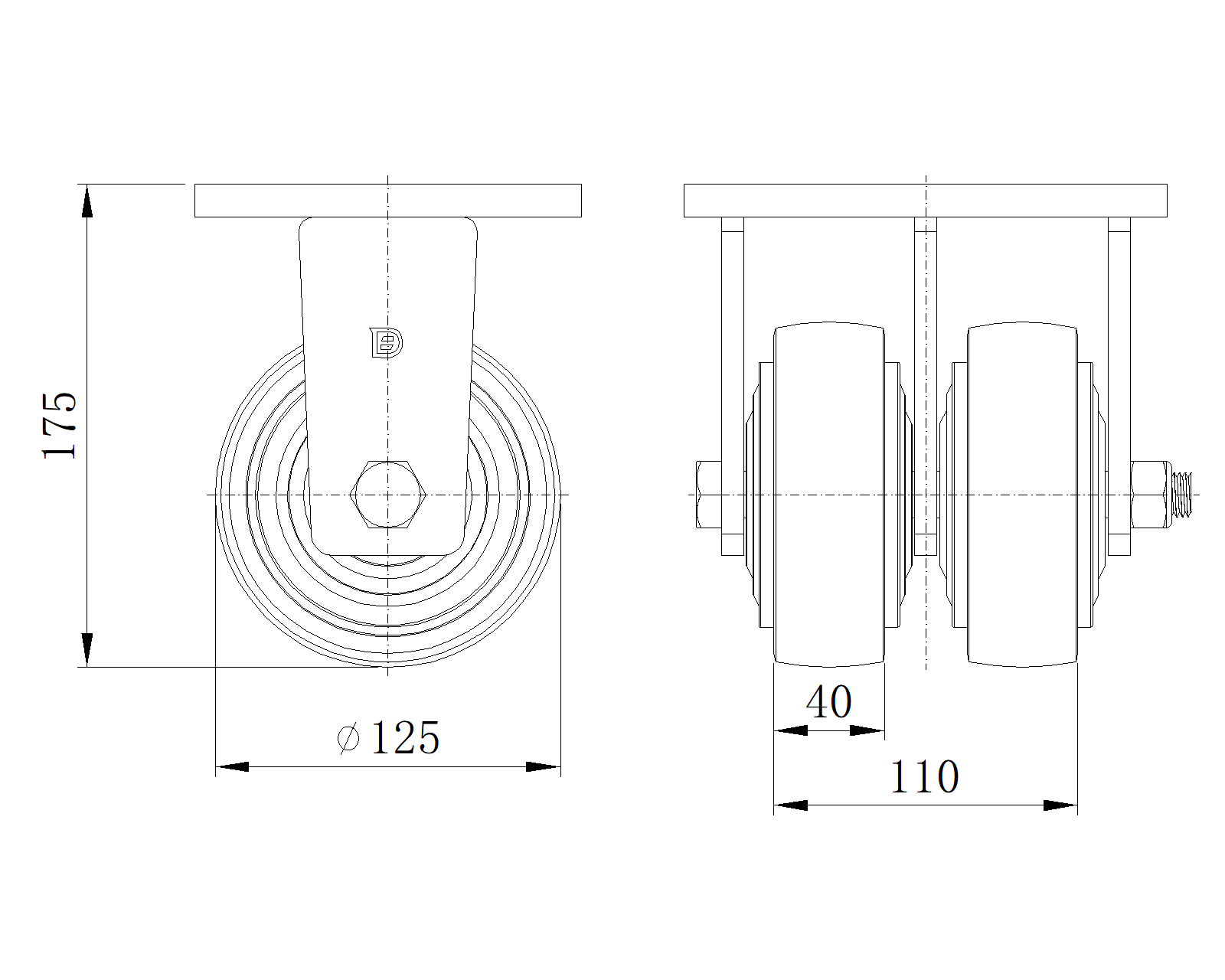

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 110mm　
　　Wheel Bearing Wheels With Ball Bearings

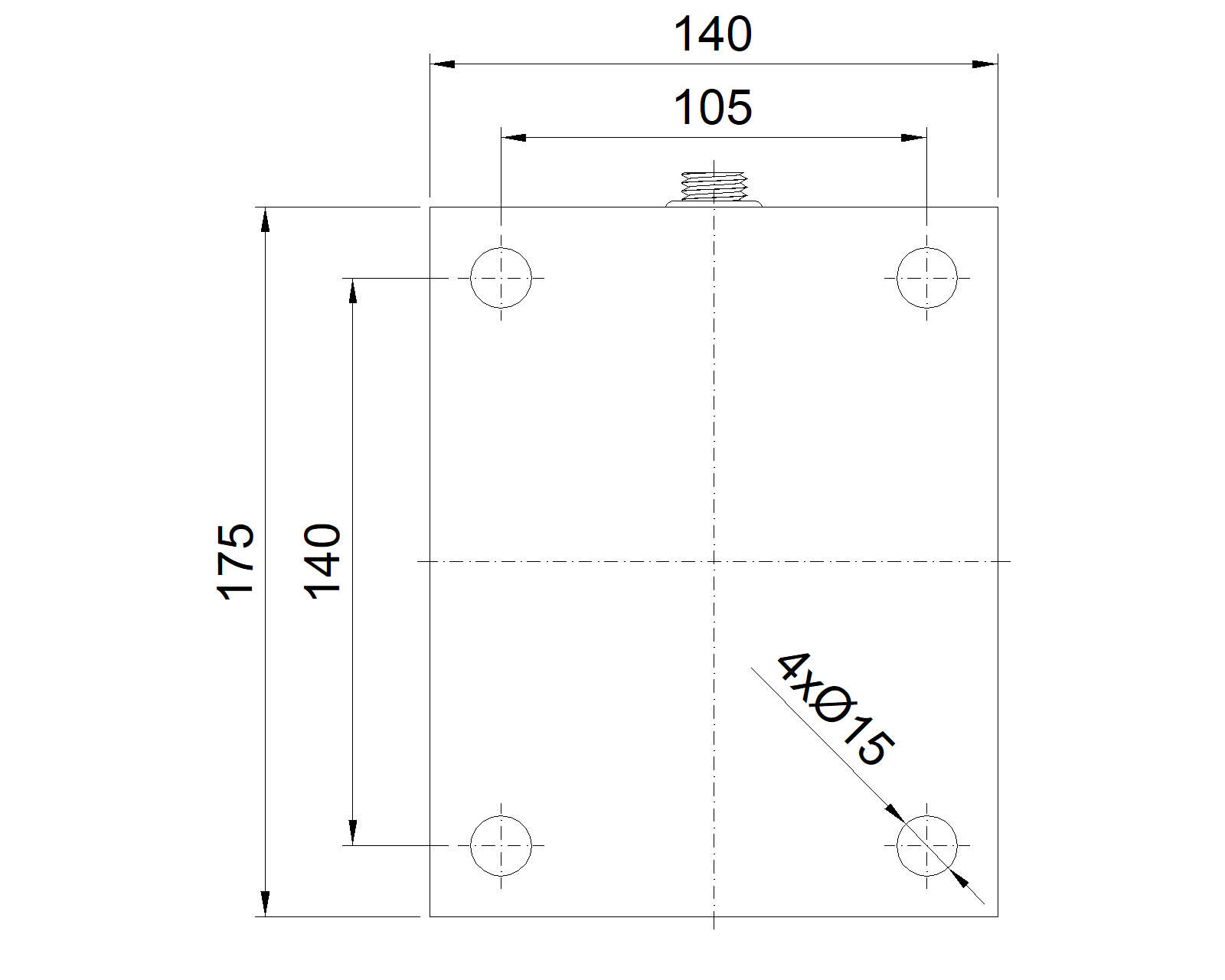

　　Plate Size 175 x 140mm　
　　Bolt Hole Spacing 140x105mm　
　　Plate Hole 15mm　
　　Overall Height 175mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 612kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 918kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.47kgs　
　　Standard ISO22883
　　
　　
