    Product Data Sheet
1152 Anti-Friction Caster Series
　　HPU Wheel (Brown-Orange-Yellow) - Wheel Diameter × Wheel Width: 150 x 75mm
　　A
　　　　　 KS-11520600984141
　　　　　 　　　
Rear brake Caster, Welded Caster Fork, blue painted finish

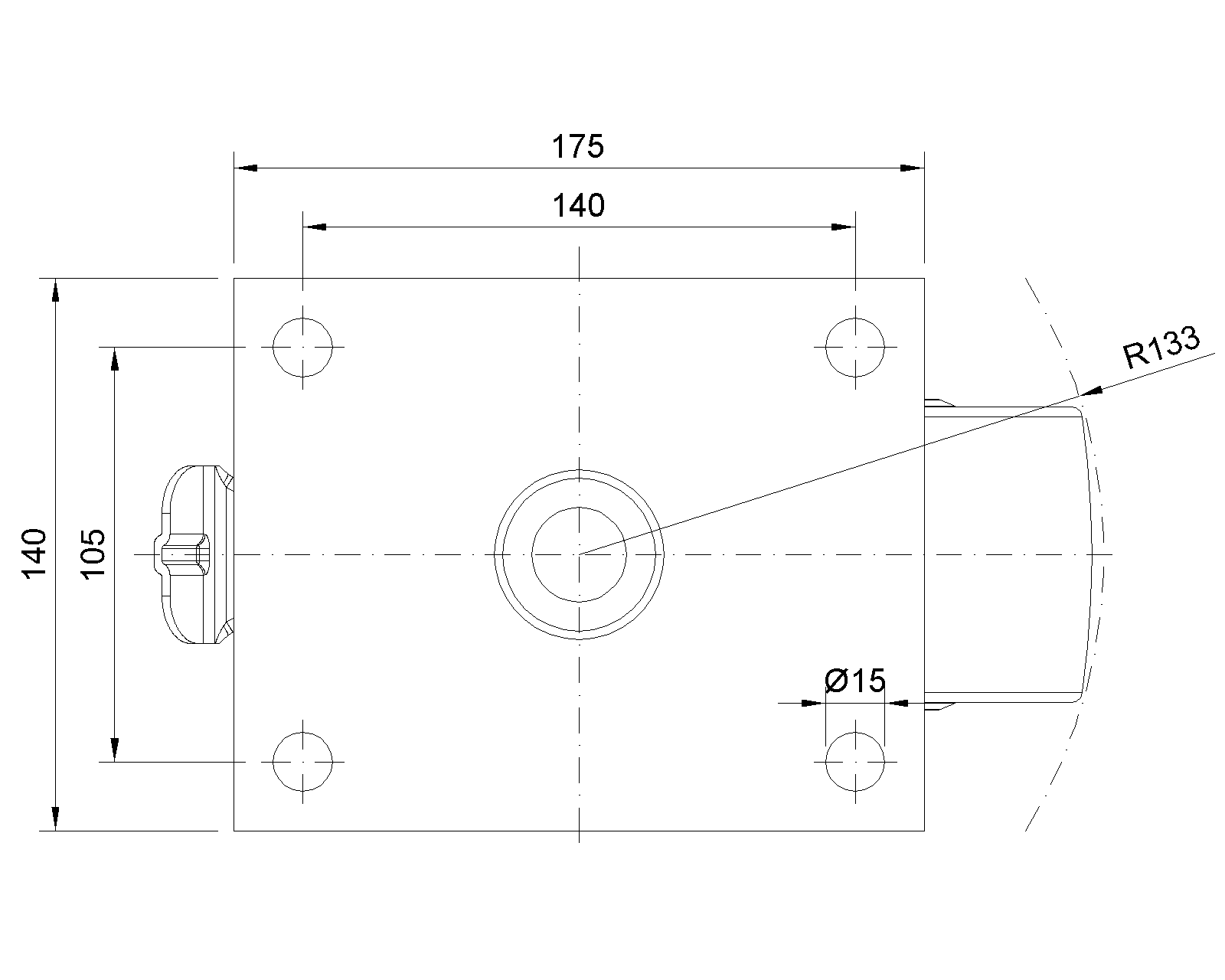

Mounting Type - Top Plate, 140x105mm Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron orange
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

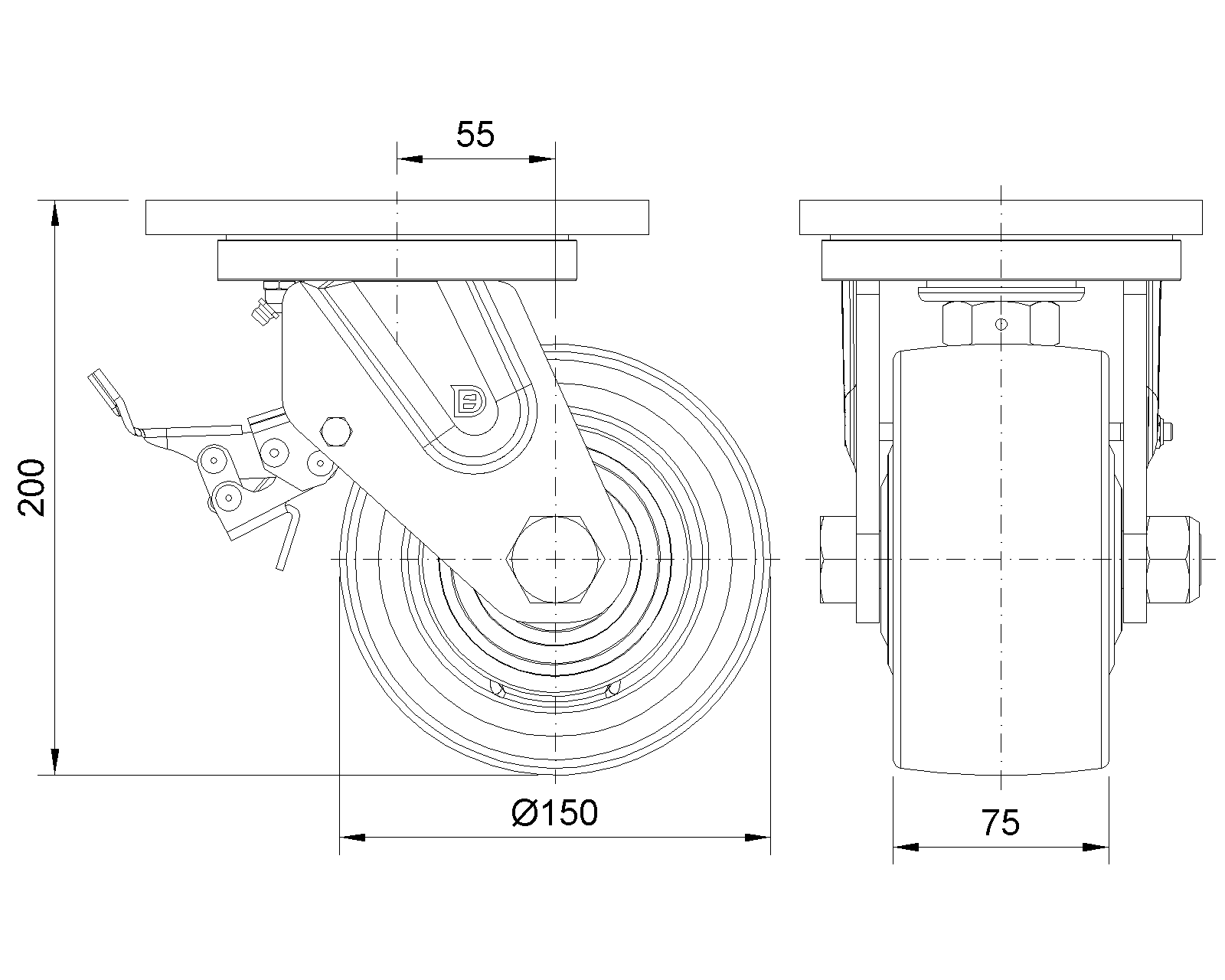

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 75mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 175 x 140mm　
　　Bolt Hole Spacing 140x105mm　
　　Plate Hole 15mm　
　　Offset 55mm　
　　Swivel Interference 266mm　
　　Overall Height 200mm　
　　Swivel Radius 133mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 1000kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1500kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 8.44kgs　
　　Standard ISO22883
　　
　　
