    Product Data Sheet
1153 Heavy Duty 2" Wide General Purposes Caster Series
　　AQPU (brown) Wheel Diameter × Wheel Width 150 x 42mm
　　EAN
　　TW-4115306002057 　　　
　　　　　 　　　
Swivel Caster with Riveted Fork and Stamping Fork.
Zine-Plated, Top Plateed Mounting Type.
Aluminum wheel center with High Quality Polyurethane Wheel Tread.
Brown color, Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: aluminum core

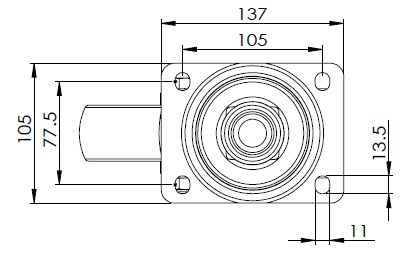

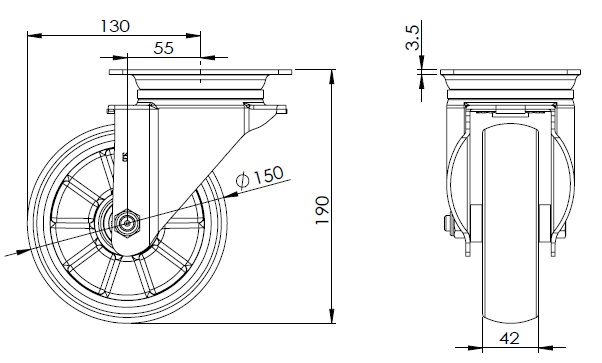

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 42mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 137 x 105mm　
　　Bolt Hole Spacing 105 x 77.5mm　
　　Plate Hole 13.5 x 11mm　
　　Offset 55mm　
　　Swivel Interference 260mm　
　　Overall Height 190mm　
　　Swivel Radius 130mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.00kgs　
　　Standard ISO22883
　　
　　
